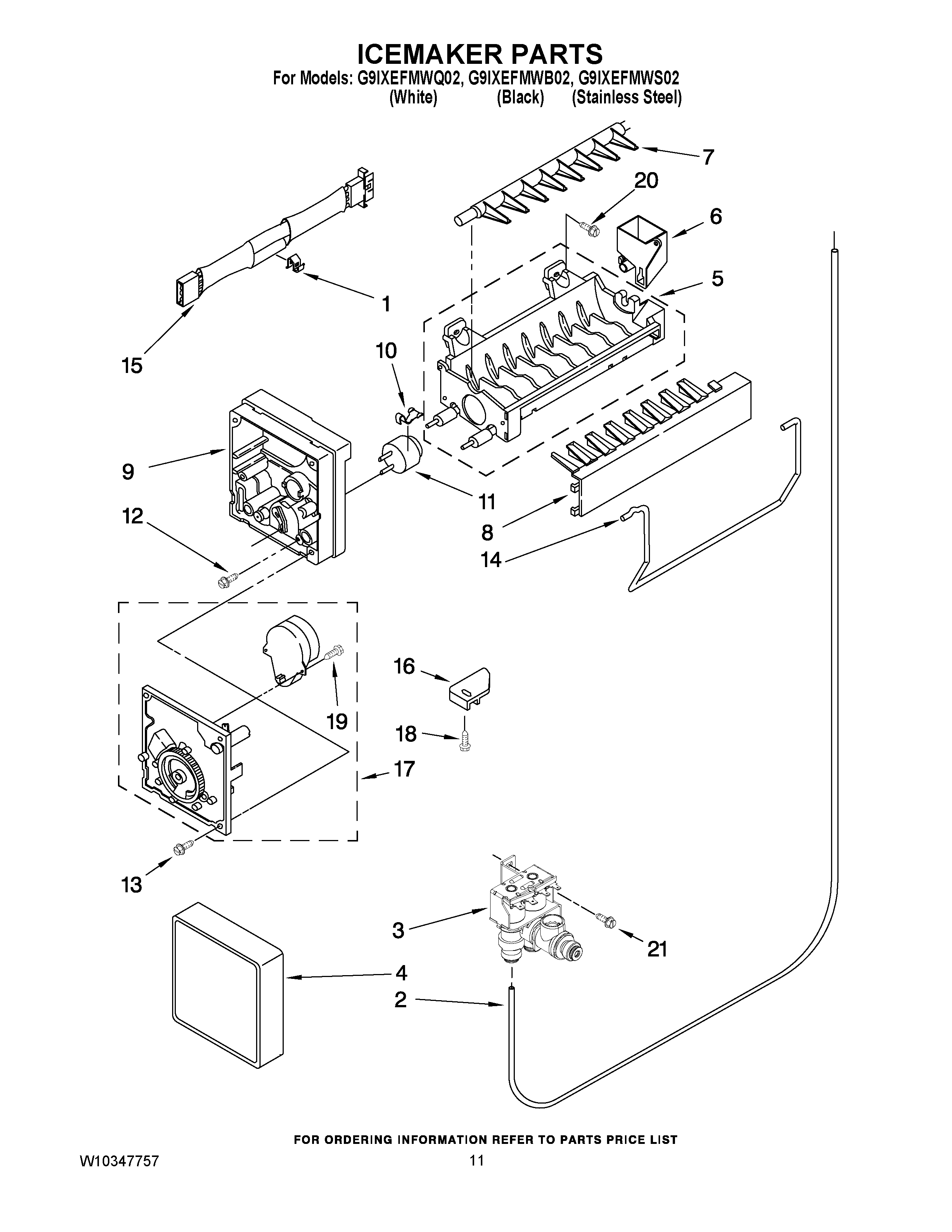

G9IXEFMWQ02 06 – ICEMAKER PARTS

G9IXEFMWQ02 06 – ICEMAKER PARTS

Written by

in

G9IXEFMWQ02 06 – ICEMAKER PARTS

Products

PositionProduct
1WP628379 Whirlpool Refrigerator Clip
2W10823511 Whirlpool Refrigerator Water Tube
3WP2188808 Whirlpool Refrigerator Inlet Valve
4WPW10289690 Whirlpool Ice Maker Cover
5WPW10190929 Whirlpool Refrigerator Ice Maker Mold
6W10122561 Whirlpool Refrigerator Cup Fill
7WP627843 Whirlpool Refrigerator Ejector Arm
8WPW10122563 Whirlpool Refrigerator Stripper Arm
9WP2195914 Whirlpool Refrigerator Ice Maker Housing
10WP2315522 Whirlpool Refrigerator Clip
11WP627985 Whirlpool Icemaker Cycling Thermostat
128533917 Whirlpool Refrigerator Screw
13WP681249 Whirlpool Screw Assembly
14WP627792 Whirlpool Refrigerator Shut Off Arm
15WP2187464 Whirlpool Refrigerator Wire Harness
16W11500948 Whirlpool Refrigerator Bracket
178201515 Whirlpool Refrigerator Motor and Gear Module Kit
18WP489478 Whirlpool Refrigerator Screw
19489136 Whirlpool Refrigerator Screw
20WP488163 Whirlpool Refrigerator Screw
21WP489442 Whirlpool Refrigerator Screw
1004317943 Whirlpool Refrigerator Ice Maker Assembly
