G9IXEFMWQ02 07 – FREEZER DOOR PARTS

G9IXEFMWQ02 07 – FREEZER DOOR PARTS

Written by

in

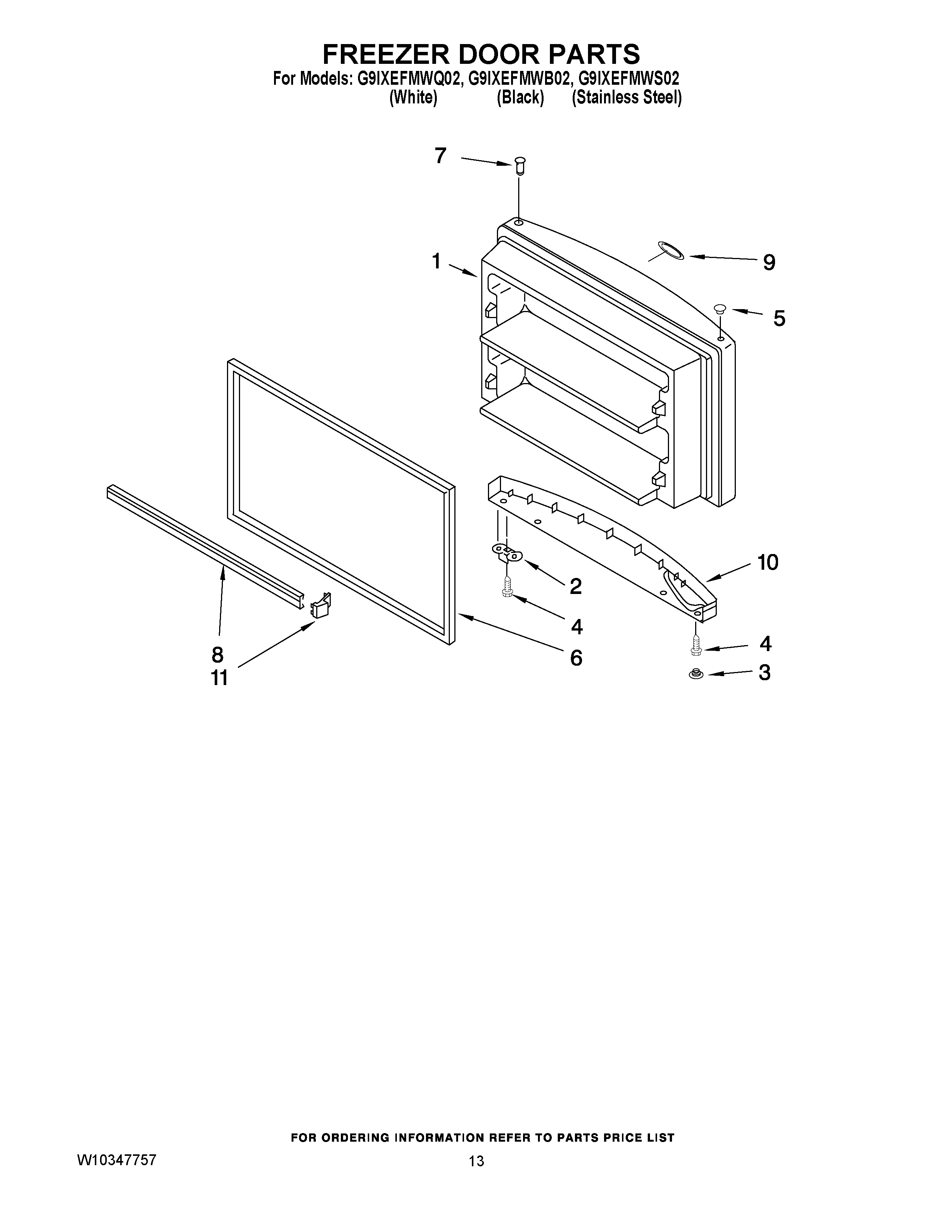

G9IXEFMWQ02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (STAINLESS)
1Freezer Door (Includes Illus. 6 & 7) (Black)
1Freezer Door (Includes Illus. 6 & 7) (White)
2W11745278 Whirlpool Bracket
3HOLE PLUG, ENDCAP (WHITE)
3HOLE PLUG, ENDCAP (BLACK)
4WP681249 Whirlpool Screw Assembly
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5WP2212651 Whirlpool Refrigerator Button Plug
62177304 Whirlpool Refrigerator FIP Gasket
62159327 Whirlpool Refrigerator Door Gasket
7WP2183003 Whirlpool Thimble
8Trim-Door (2)
9Nameplate
10Endcap, Handle (White)
10Endcap, Handle (Black)
11ENDCAP
