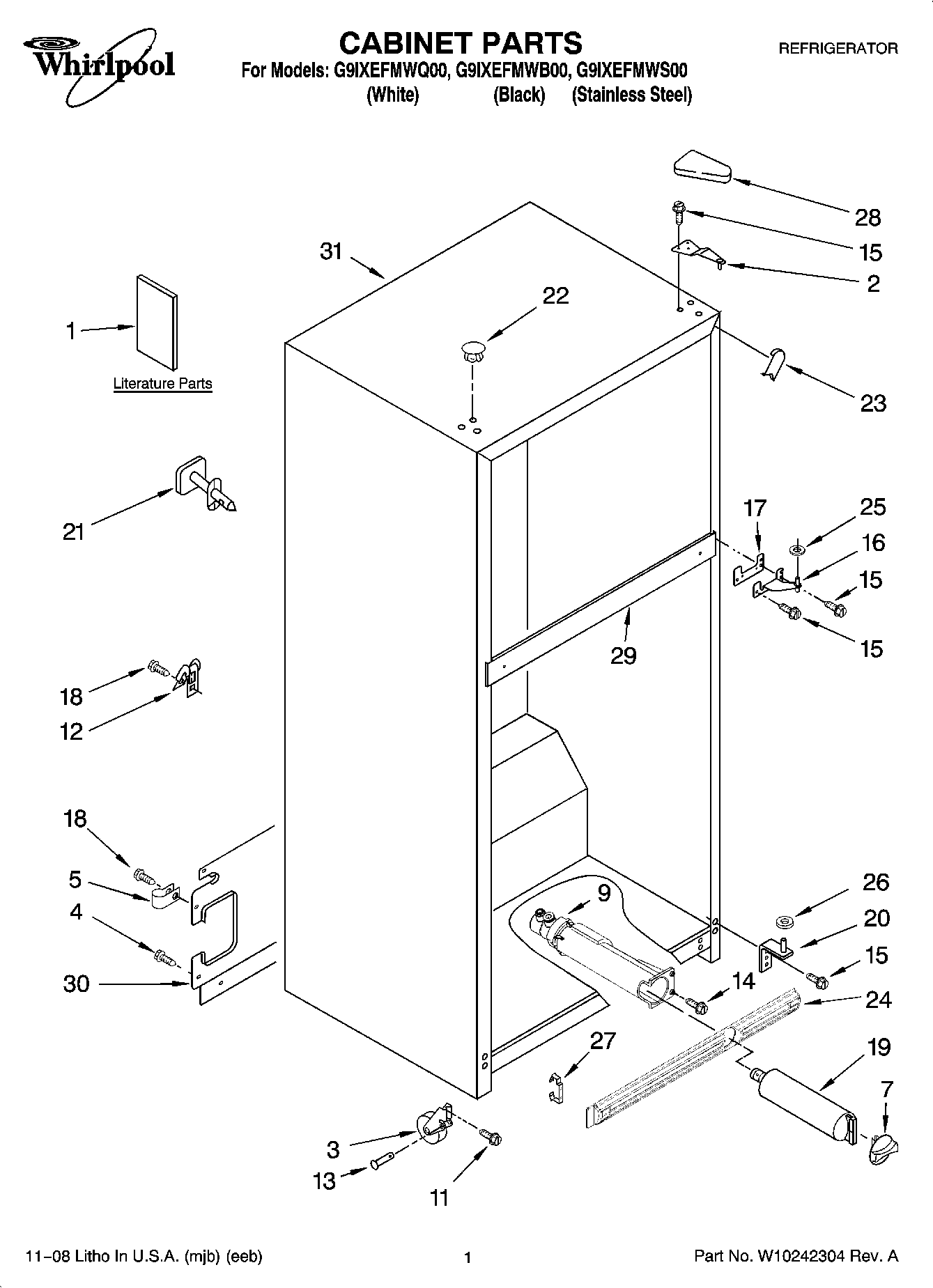

G9IXEFMWS00 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide (Trilingual)
1Use & Care Guide (Bilingual)
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Modular Icemaker Service Sheet
1Customer Instruct Sheet, Wtr Filter
1Service & Wiring Sheet
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Energy Label
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489427 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
7WP2186494B Whirlpool Refrigerator Filter Cap
7WP2186494W Whirlpool Water Filter Cap
9WP2225521 Whirlpool Water Filter Housing
11WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
13W11594405 Whirlpool Axle
14SCREW
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183852 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
19EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
20WP2254473 Whirlpool Refrigerator Door Hinge
21Fitting, Water Tube (Not Serviced)
22WP2183998 Whirlpool Refrigerator Button Plug
22WP2151652 Whirlpool Refrigerator Button Plug
23WPW10283959 Whirlpool Refrigerator Filler
23W11252732 Whirlpool Refrigerator Filler
24Grille (Includes Illus. 27) (Black)
24Grille (Includes Illus. 27) (White)
25WP489467 Whirlpool Hinge Shim
26WP487576 Whirlpool Washer
27CLIP, GRILLE
28WP2213363 Whirlpool Refrigerator Cover
28WP2213360 Whirlpool Refrigerator Cover
29Rail, Center (Not Serviced)
30Cover, Unit
31Cabinet, (Not A Serviceable Part)
