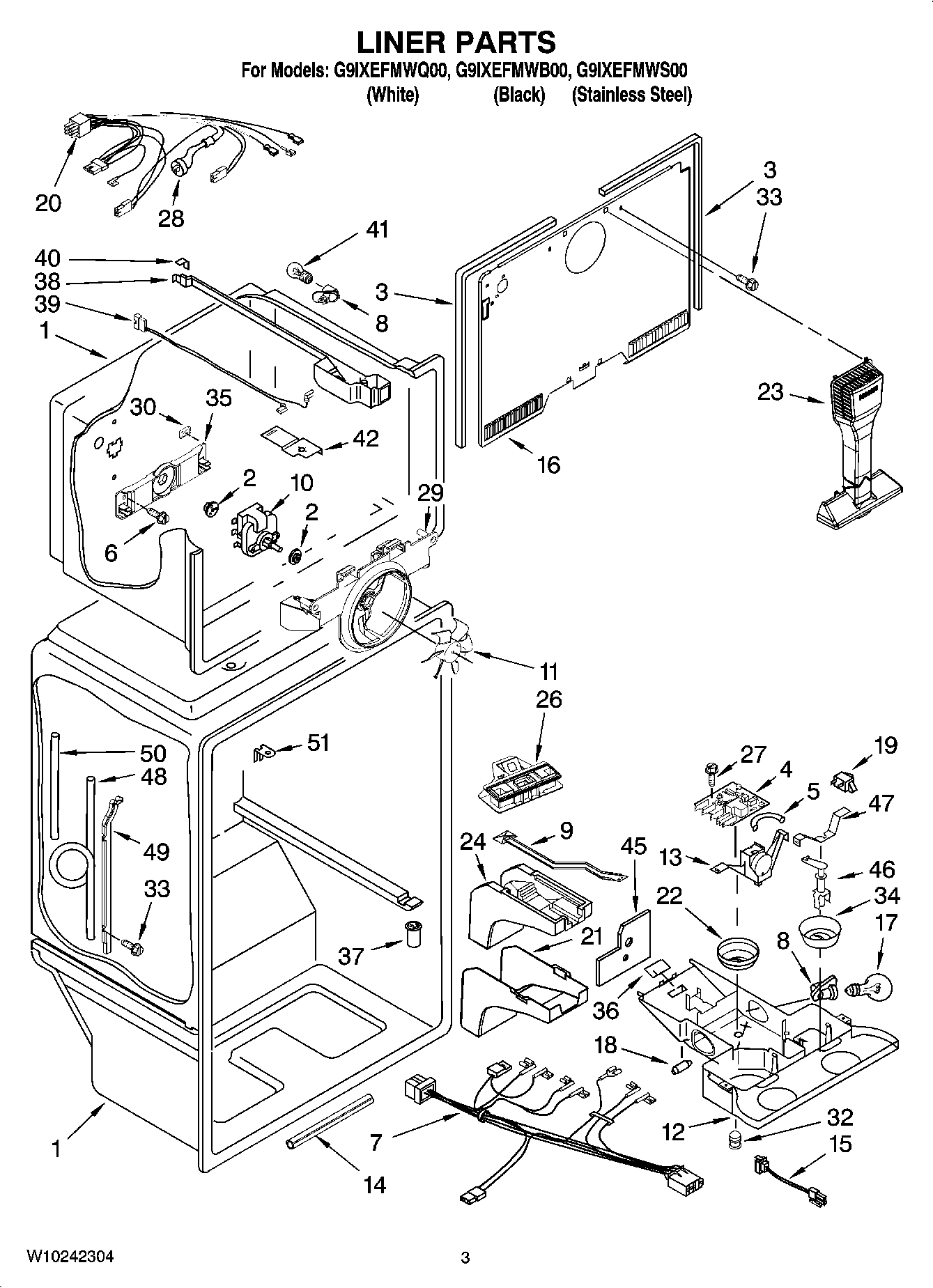

G9IXEFMWS00 02 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2304093 Whirlpool Refrigerator Electronic Control Board
5Thermostat Tube Barrier
6WP488163 Whirlpool Refrigerator Screw
7Wire Assembly, Control Box
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assembly (Includes Illus. 5 & 18)
14Insulation, Water Tube
15W10853646 Whirlpool Indicator Light
16Cover, Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20W10129791 Whirlpool Refrigerator Wire Harness
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
26Air Separator Assembly
27Screw
28WP2321800 Whirlpool Refrigerator Bimetallic Defrost
29BRACKET, FAN MOTOR
30Retainer-Screw
32Lens-LED
33WP489478 Whirlpool Refrigerator Screw
34Knob, Damper
352254454 Whirlpool Refrigerator Bracket
36WP2205079 Whirlpool Refrigerator Seal
37WP2210509 Whirlpool Refrigerator Tub Valve
38Housing Base
39Wiring Harness, Freezer Light
40Gasket, Rear
414396822 Whirlpool Refrigerator Light Bulb
42Electrical Shield, Freezer Light
45Shield, heat
46Post, Damper
47Bracket, Damper Knob
488201597 Whirlpool Inlet Water Fill Tube Kit Filter
49Cover, Tubing
50Tube, Water Filter
51Clip, Retainer
