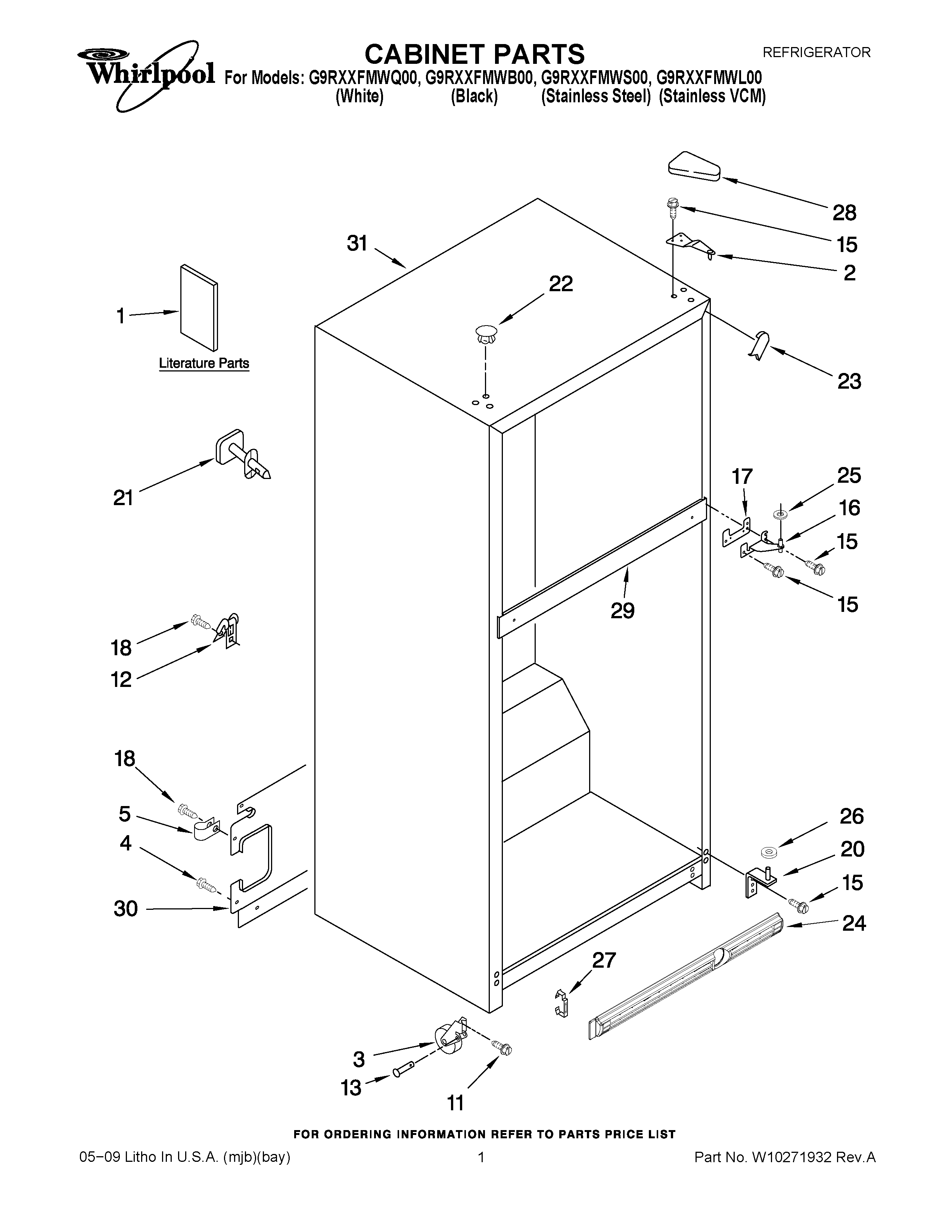

G9RXXFMWS00 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Modular Icemaker Service Sheet
1	ENERGY LABEL
1	Use & Care Guide (Bilingual)
1	Use & Care Guide (Trilingual)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WP489427 Whirlpool Refrigerator Screw
5	WP488366 Whirlpool Refrigerator Clamp
11	WP3400504 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
13	W11594405 Whirlpool Axle
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183852 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
21	Fitting, Water Tube (Not Serviced)
22	WP2151652 Whirlpool Refrigerator Button Plug
22	WP2183998 Whirlpool Refrigerator Button Plug
23	WPW10283959 Whirlpool Refrigerator Filler
23	W11252732 Whirlpool Refrigerator Filler
24	Grille (Includes Illus. 27) (Black)
24	WP2254386 Whirlpool Refrigerator Grille
25	WP489467 Whirlpool Hinge Shim
26	WP487576 Whirlpool Washer
27	CLIP, GRILLE
28	WP2213360 Whirlpool Refrigerator Cover
28	WP2213363 Whirlpool Refrigerator Cover
29	Rail, Center (Not Serviced)
30	Cover, Unit
31	Cabinet, (Not A Serviceable Part)
