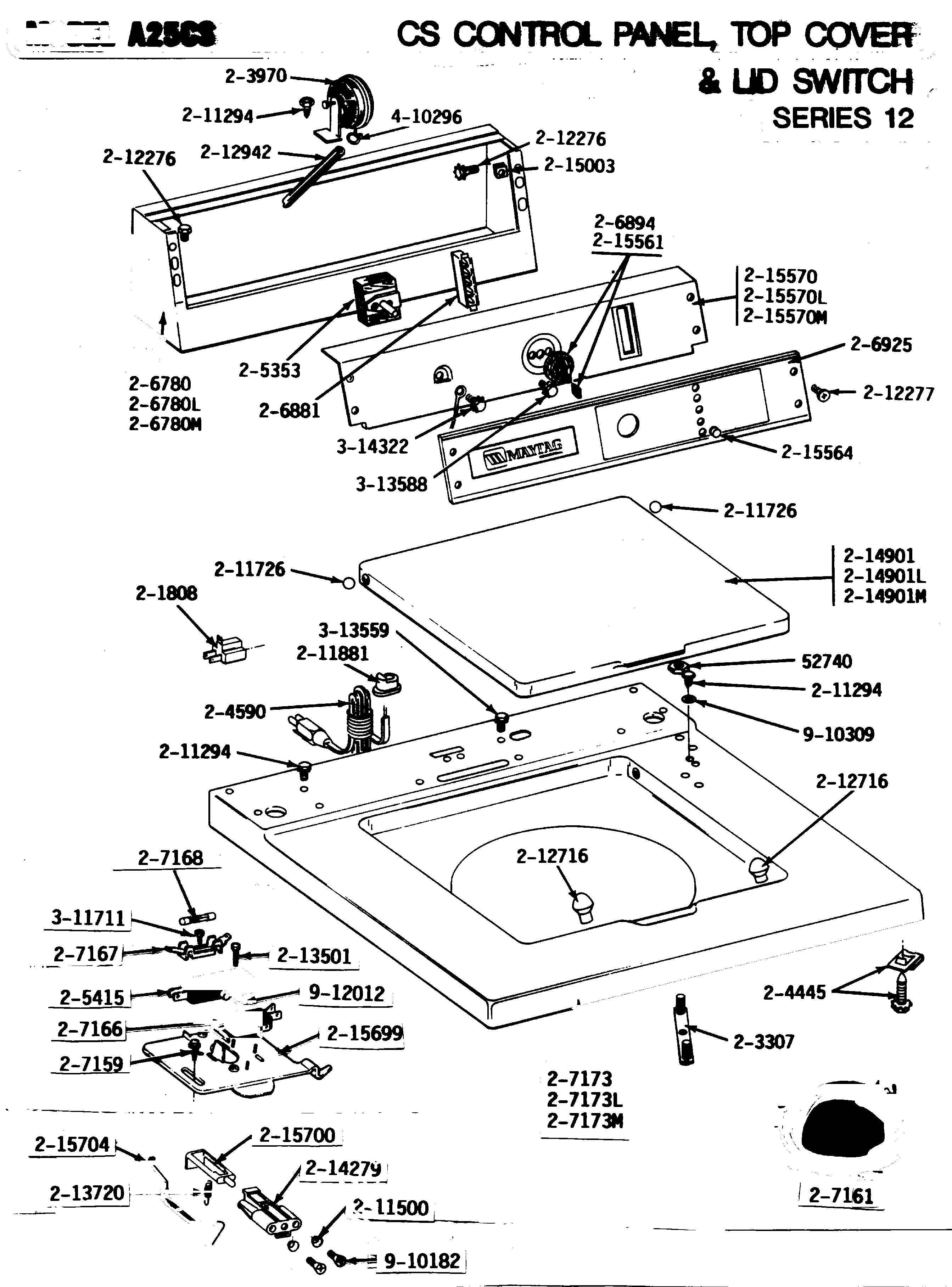

GA25CME 02 – CONTROL PANEL, TOP CVR & LID SWTCH (12)

GA25CME 02 – CONTROL PANEL, TOP CVR & LID SWTCH (12)

Written by

in

GA25CME 02 – CONTROL PANEL, TOP CVR & LID SWTCH (12)

Products

PositionProduct
NIDOWEL PIN FOR HANDLE
001WP62739 Whirlpool Nut
002MAY Y201808
004MAY 203970
005MAY 204445
006MAY 204590
007SWITCH, TEMP.
008W10820036 Whirlpool Door Switch Kit
009AMAY 206780L
009CONTROL COVER ASSY
011MAY 206894
013SCREW
014MAY 207161
015WP207166 Whirlpool CH Switch
016MAY 207167
017MAY 207168
018TOP COVER ASSY
019WP90767 Whirlpool Screw
020MAY 211500
021WP211726 Whirlpool Ball Assembly
022GROMMET
023MAY 212276
024WP1163283 Whirlpool Air Conditioner Screw
025WP212716 Whirlpool Lid Bumper
026MAY 212942
027MAY 213501
028WP213720 Whirlpool Spring Assembly
029MAY 214279
030LID-WHITE
031MAY 215003
032MAY 215561
033WP215564 Whirlpool Indicator Lens
034MAY 215570
035MAY Y215699
037MAY 215704
038MAY Y311711
039MAY Y313559
040WP488234 Whirlpool Air Conditioner Screw
041MAY Y314322
042WP596669 Whirlpool Hose Clamp
043MAY 910182
044MAY 910309
045MAY 912012
