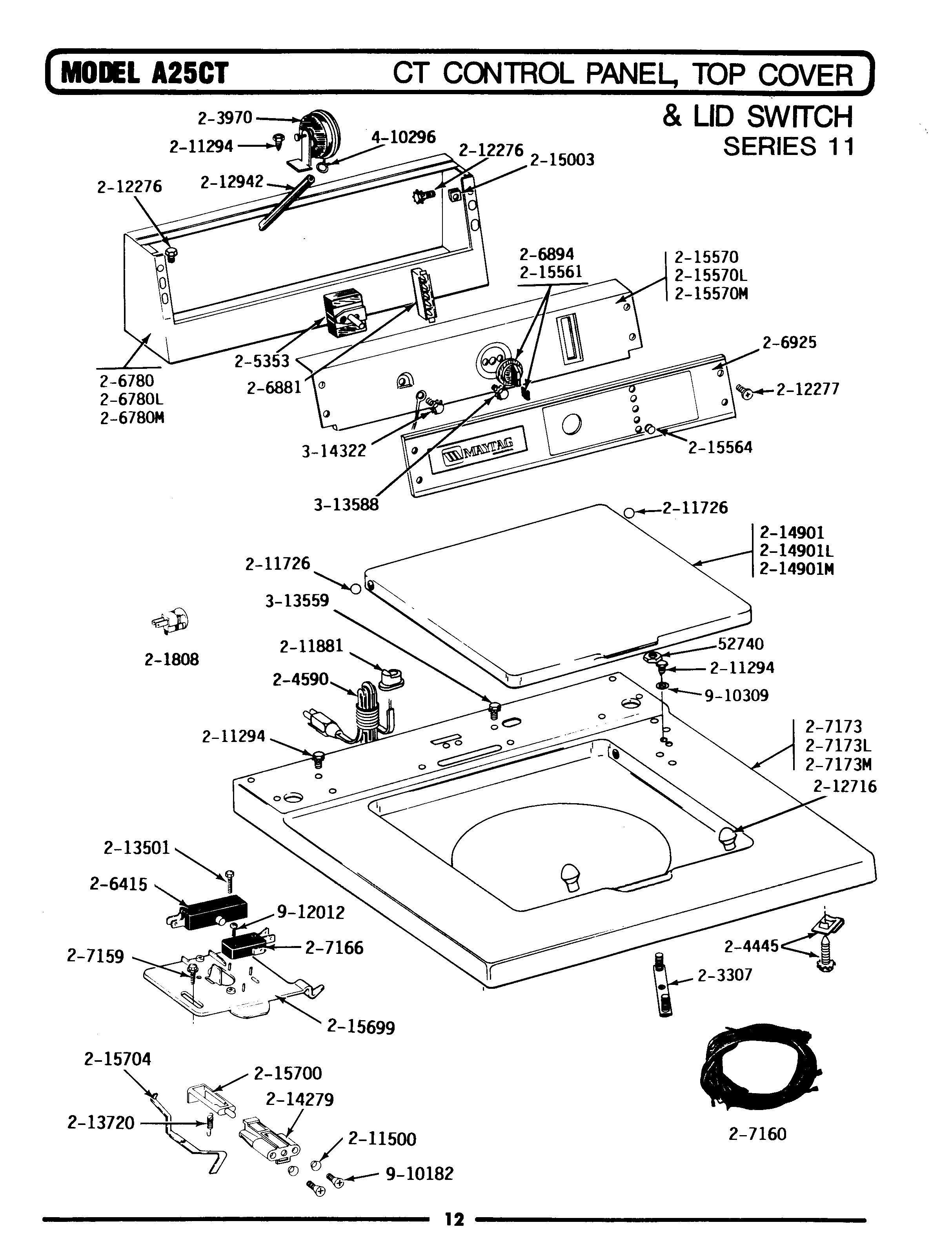

GA25CT 02 – CONTROL PANEL, TOP CVR & LID SWTCH (11)

Products

Position	Product
NI	MAY 911267
NI	MAY 410635
NI	PLUNGER & BRACKET ASSEMBLY–W
NI	MAY 213718
NI	MAY 215236
NI	MAY 214805
NI	MAY 214813
NI	MAY 214898
NI	DOWEL PIN FOR HANDLE
NI	MAY 214987
001	WP62739 Whirlpool Nut
002	MAY Y201808
004	MAY 203970
005	MAY 204445
006	MAY 204590
008	SWITCH, TEMP.
009	MAY 206415
010	CONTROL COVER ASSY
010A	MAY 206780L
013	MAY 206894
015	SCREW
016	MAY 207160
017	WP207166 Whirlpool CH Switch
018	TOP COVER ASSY
019	WP90767 Whirlpool Screw
020	MAY 211500
021	WP211726 Whirlpool Ball Assembly
022	GROMMET
023	MAY 212276
024	WP1163283 Whirlpool Air Conditioner Screw
025	WP212716 Whirlpool Lid Bumper
026	MAY 212942
027	MAY 213501
029	WP213720 Whirlpool Spring Assembly
030	MAY 214279
034	LID-WHITE
036	MAY 215003
038	MAY 215561
039	WP215564 Whirlpool Indicator Lens
040	MAY 215570
041	MAY Y215699
043	MAY 215704
044	MAY Y313559
045	WP488234 Whirlpool Air Conditioner Screw
046	MAY Y314322
047	WP596669 Whirlpool Hose Clamp
049	MAY 910182
050	MAY 910309
052	MAY 912012
