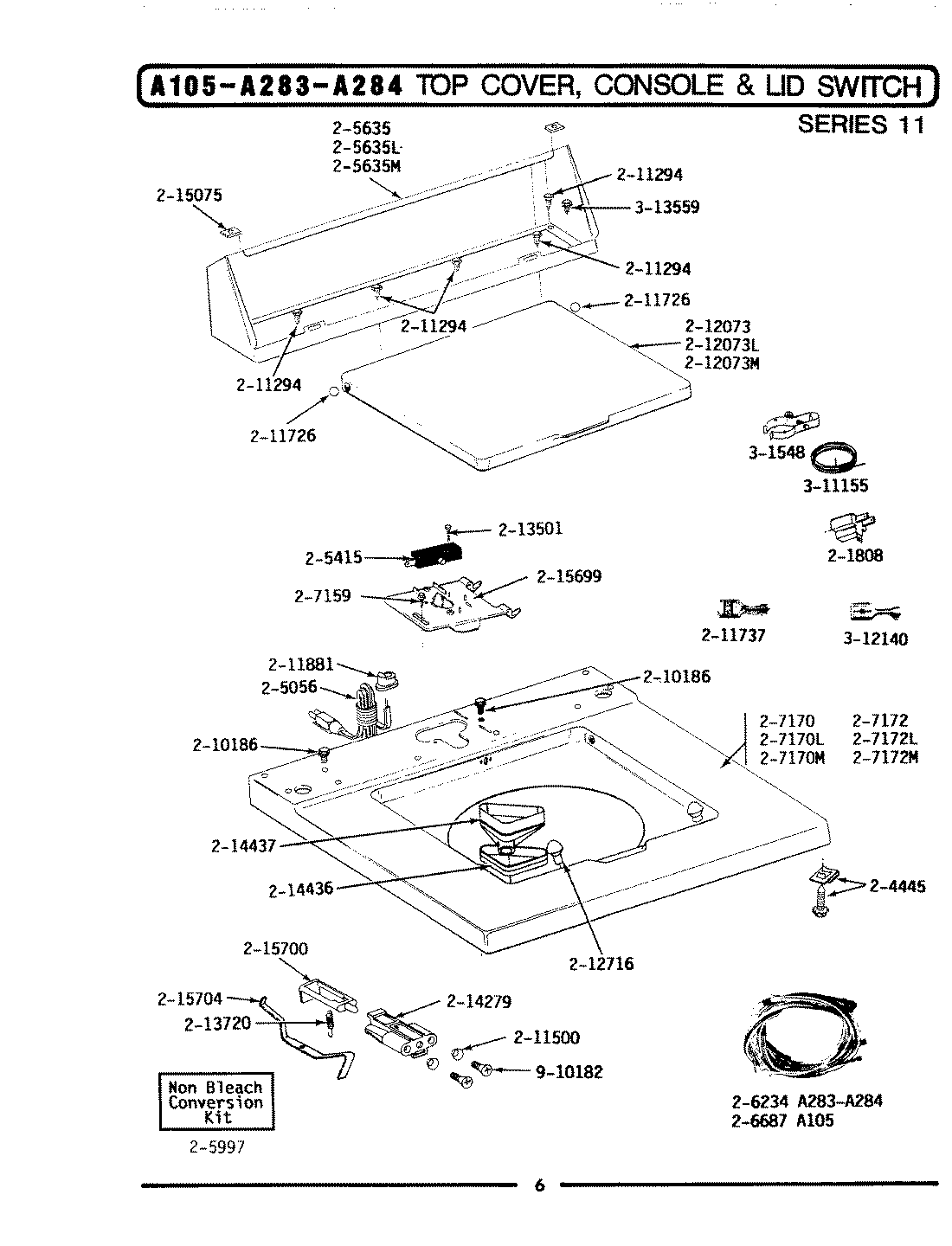

GA283 07 – TOP COVER, CONSOLE & LID SWITCH (SER 11)

GA283 07 – TOP COVER, CONSOLE & LID SWITCH (SER 11)

Written by

in

GA283 07 – TOP COVER, CONSOLE & LID SWITCH (SER 11)

Products

PositionProduct
NIMAY 215075
1MAY Y201808
2MAY 204445
3MAY 205056
4W10820036 Whirlpool Door Switch Kit
7MAY 205635M
8MAY 205997
9MAY 206234
10SCREW
13MAY 207172M
14MAY 210186
15WP90767 Whirlpool Screw
16MAY 211500
17WP211726 Whirlpool Ball Assembly
18MAY 211737
19GROMMET
23MAY 212073M
24WP212716 Whirlpool Lid Bumper
25MAY 213501
26WP213720 Whirlpool Spring Assembly
27MAY 214279
29MAY Y215699
30MAY 215700
31MAY 215704
32MAY 301548
33WP311155 Whirlpool Wire Assembly
34MAY Y312140
35MAY Y313559
36MAY 910182
