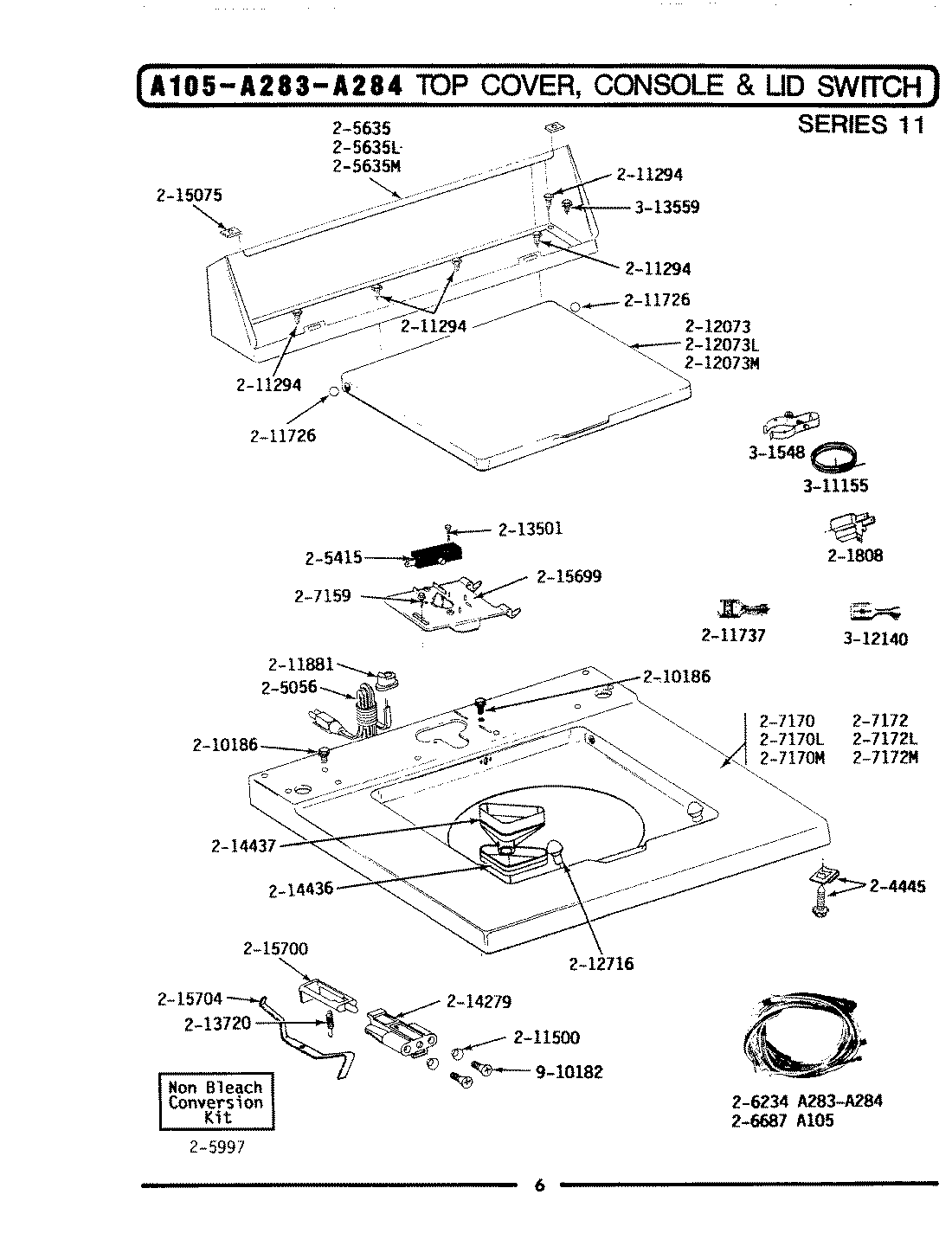

GA284 07 – TOP COVER, CONSOLE & LID SWITCH (SER 11)

Products

PositionProduct
1MAY Y201808
2MAY 204445
3MAY 205056
4W10820036 Whirlpool Door Switch Kit
7MAY 205635M
8MAY 205997
9MAY 206234
10SCREW
13MAY 207170M
14MAY 210186
15WP90767 Whirlpool Screw
16MAY 211500
17WP211726 Whirlpool Ball Assembly
18MAY 211737
19GROMMET
22MAY 212073M
23WP212716 Whirlpool Lid Bumper
24MAY 213501
25WP213720 Whirlpool Spring Assembly
26MAY 214279
27MAY 214436
29MAY 215075
30MAY Y215699
31MAY 215700
32MAY 215704
33MAY 301548
34WP311155 Whirlpool Wire Assembly
35MAY Y312140
36MAY Y313559
37MAY 910182
