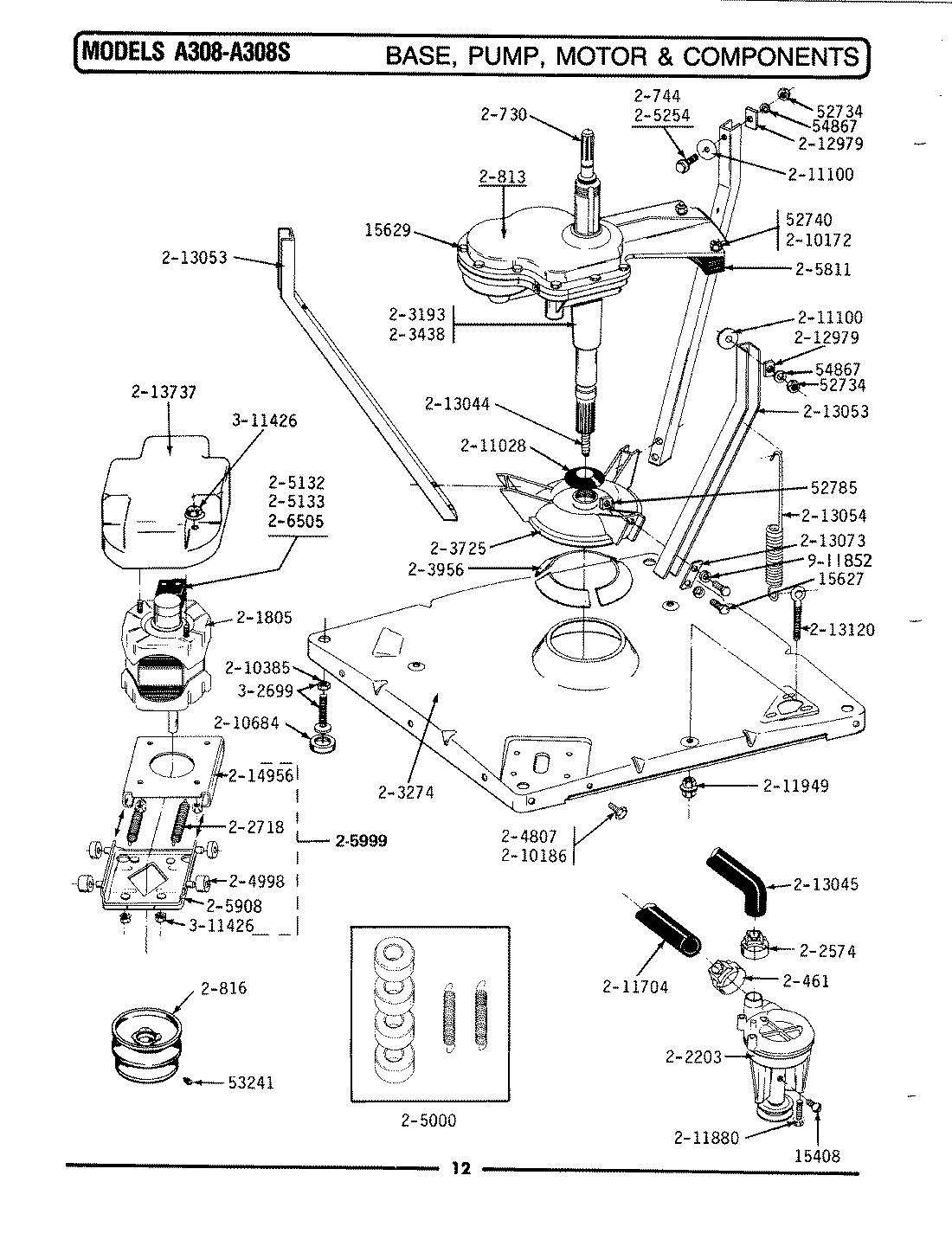

GA308 01 – BASE, PUMP, MOTOR & COMPONENTS

Products

Position	Product
1	MAY Y015408
3	MAY Y015629
4	MAY Y052734
5	WP62739 Whirlpool Nut
6	MAY Y052785
7	MAY Y053241
8	MAY Y054867
9	MAY 200461
10	MAY 200730
11	W10175939 Whirlpool Bolt Assembly
12	MAY 200813
13	MAY 200816
14	12002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
15	MAY 202203
16	WP285655 Whirlpool Hose Clamp
17	202718 Whirlpool Tension Spring
18	MAY 203193
19	MAY 203274
20	PART NOT USED
21	MAY 203725
22	203956 Whirlpool Damper Pads 3 Pack with Poly
23	MAY 204807
24	205000 Whirlpool Motor Spring and Guide Kit
26	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
27	2-1664-8 AND 2-5463
28	W10175938 Whirlpool Bolt
29	MAY 205811
30	MAY 205908
31	MAY 205999
32	2-1664-11 AND 2-5463-1
33	MAY 210172
34	MAY 210186
35	WP210385 Whirlpool Lock Nut
36	WP210684 Whirlpool Dishwasher Leveling Leg Pad
37	MAY 211028
38	MAY 211100
39	MAY 211704
40	WPY014874 Whirlpool Screw
41	WP211949 Whirlpool Nut
42	MAY 212979
43	PART NOT USED
44	WP213045 Whirlpool Dishwasher Tub to Pump Hose
45	PART NOT USED
46	MAY 213054
47	MAY 213073
48	MAY 213120
49	MAY 213737
50	MAY 214956
51	LEG, ADJUSTABLE (W/NUT)---S
52	WP3400029 Whirlpool Dishwasher Nut
53	MAY 911852
