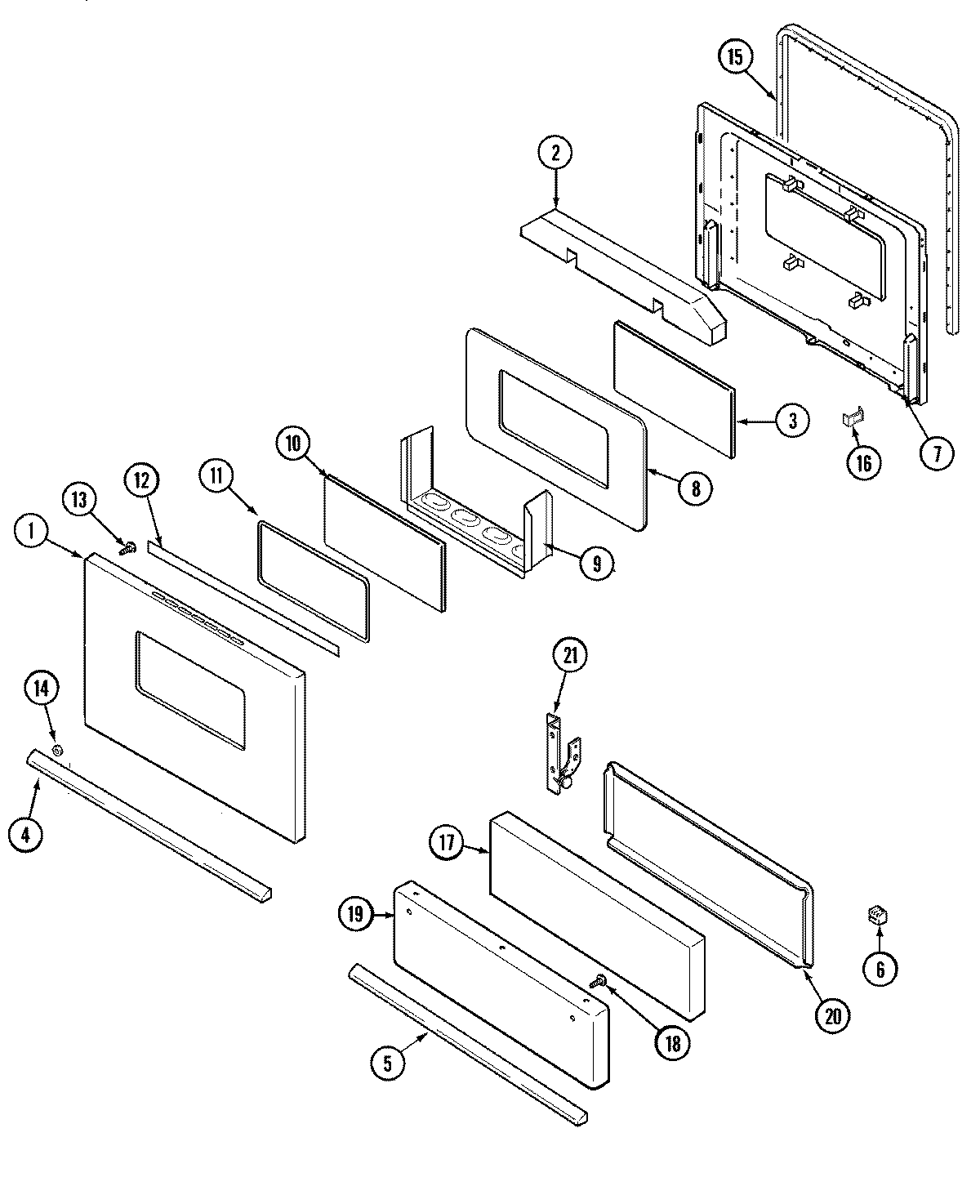

GA31713WAV 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 2401F121-62
2	MAY 74002458
3	MAY 74002459
5	WP2411F013-71 Whirlpool Door Handle
6	MAY 8016P015-60
7	MAY 74003248
7	MAY 74002460
8	MAY 74002461
8	MAY 7101P209-60
9	MAY 74002462
10	MAY 74002464
11	MAY 7201P017-60
12	TAPE, FOIL (3“ WIDE)
13	MAY 7101P080-60
14	WP74005058 Whirlpool Spacer Assembly
15	WP7212P043-60 Whirlpool Oven Door Seal Gasket
16	CLIP, DOOR
17	MAY 74001814
18	74002481 Whirlpool Screw
19	MAY 74001729
20	MAY 74002397
21	MAY 74002398
21	SCREW
