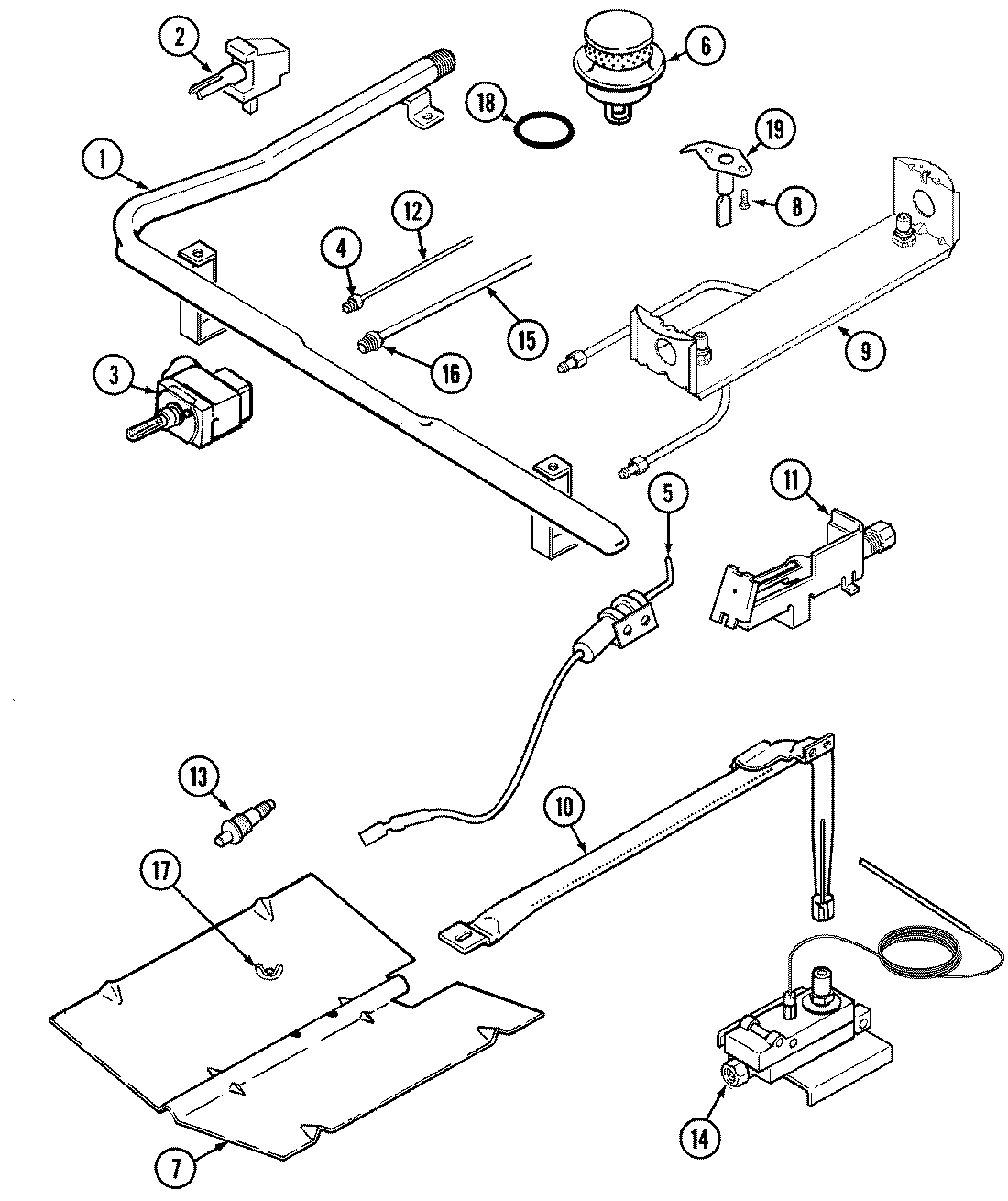

GA3171SXAW 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74002773
2	MAY 74002532
2	WP8273096 Whirlpool Screw
3	MAY 7515P034-60
3	MAY 7101P010-60
4	MAY 1555222
5	MAY 74001232
6	WP3412D024-09 Whirlpool Oven Burner Head
7	MAY 74002393
8	MAY Y707113
9	MAY 5187D029-60
10	MAY 74002434
11	WP3351614 Whirlpool Screw
11	MAY 7432P070-60
12	MAY 3414F108-44
13	MAY 7432P078-60
14	MAY 74002661
14	SCREW
15	MAY 74001062
16	MAY 1555251
17	NUT, WING
18	MAY 74002745
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
19	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
