GA3171SXAW 05 – OVEN/BASE – Aparts

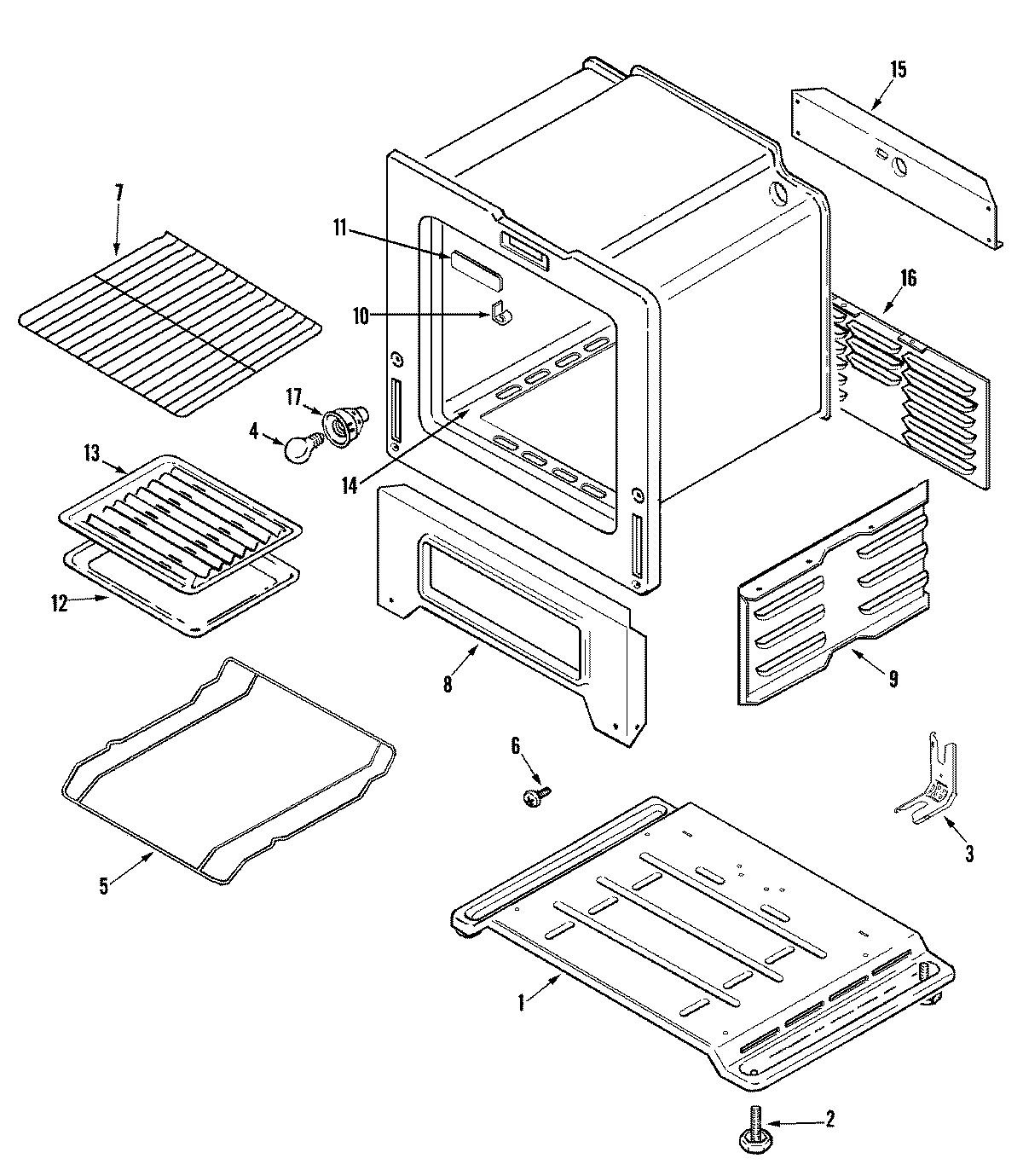

GA3171SXAW 05 – OVEN/BASE

Products

Position	Product
1	MAY 74005215
2	W11665456 Whirlpool Range Level Foot
3	WP7101P485-60 Whirlpool Anchor Tip
3	MAY 74002311
4	MAY 7407P027-60
5	MAY 74002381
6	WP74003976 Whirlpool Screw
7	WPW10282492 Whirlpool Oven Rack
8	MAY 74002658
9	MAY 74002374
9	MAY 74002375
10	WP7112P004-60 Whirlpool Thermal Clip
11	PLUG, LOCK SLOT
12	MAY Y3401F02019
13	MAY Y3413F01619
14	MAY 74002377
14	MAY 74002376
15	MAY 74002378
16	SCREW
16	MAY 74002379
17	MAY 74003387
