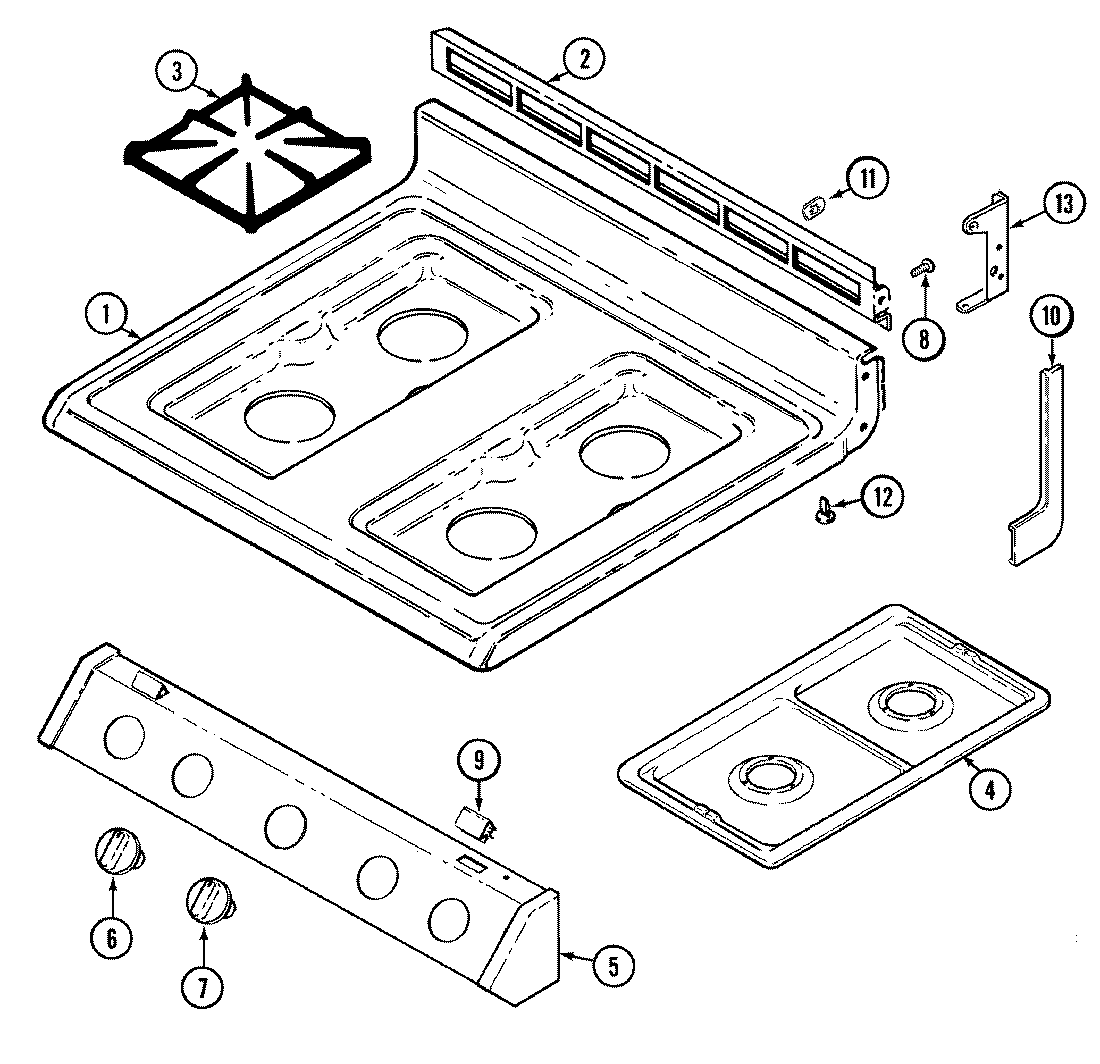

GA3177WUV 05 – TOP ASSEMBLY

GA3177WUV 05 – TOP ASSEMBLY

Written by

in

GA3177WUV 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 2001W085-81
2	MAY 3608F042-26
3	MAY 2003W027-26
4	MAY 5401A452-60
5	MAY 7101P329-60
5	MAY 7712P172-60
6	MAY 7731P078-60
7	MAY 7733P046-60
8	SCREW (10ABX1/4P TR ZN)
9	MAY 7112P087-60
10	MAY 8270P095-60
10	MAY 7746P032-60
10	MAY 7746P033-60
11	WP3195558 Whirlpool Nut
12	MAY 8016P015-60
13	MAY 8114P348-60
13	MAY 3807F453-51
13	MAY 3807F454-51
