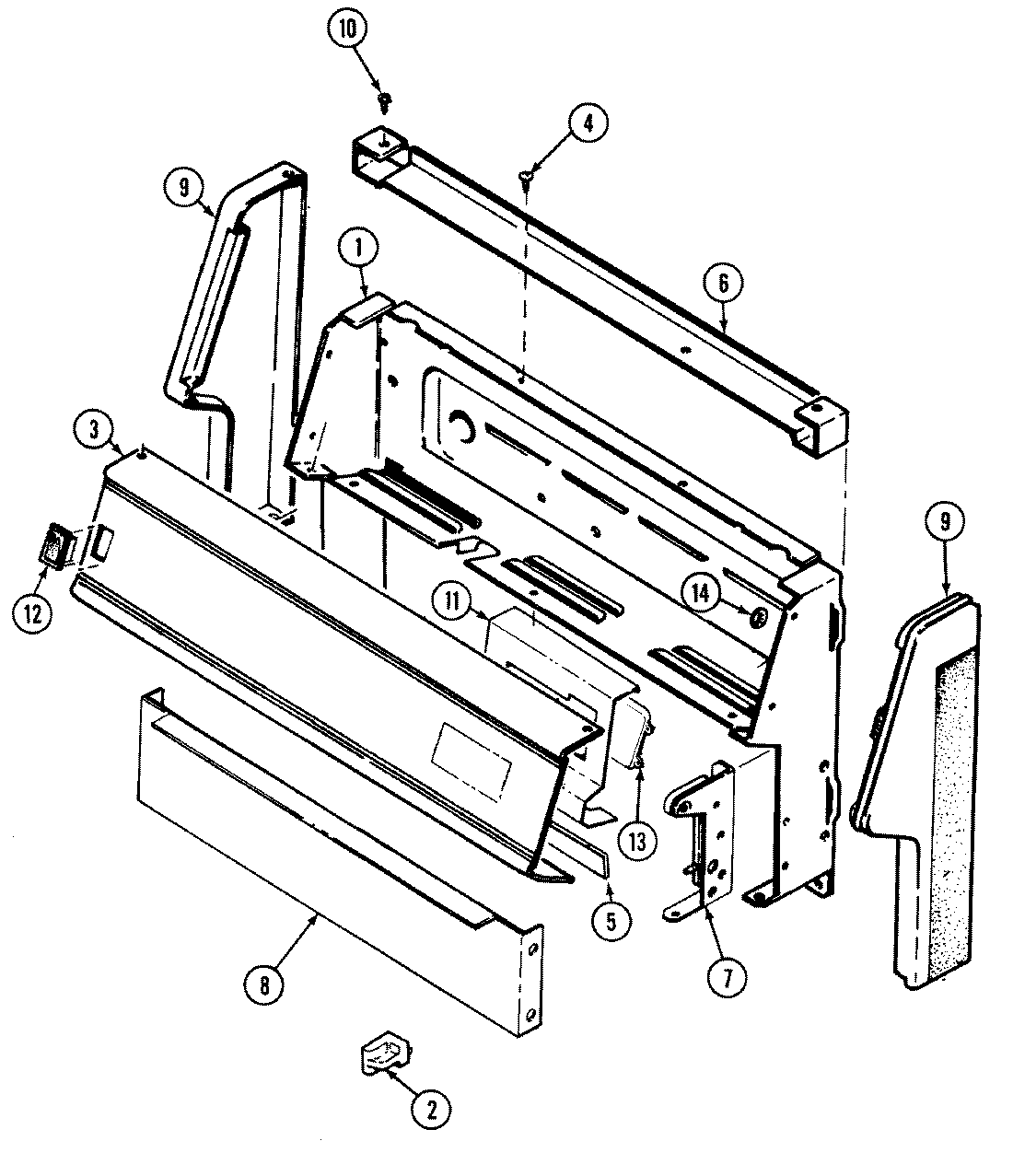

GA3177WUW5 02 – CONTROL PANEL
Written by
in
GA3177WUW5 02 – CONTROL PANEL
Products
Position
Product
NI
MAY 8113P043-60
1
MAY 4001F091-51
2
MAY 8010P083-60
2
MAY 7101P148-60
3
MAY 7703P632-60
3
MAY 7101P331-60
4
MAY 4001F064-51
5
WP3195558 Whirlpool Nut
6
MAY 8036P003-60
7
MAY 3807F454-51
7
SCREW (8BX3/8-NI)
7
MAY 3807F453-51
8
MAY 3604F188-09
9
MAY 7726P059-60
9
MAY 7726P060-60
10
MAY 7602P118-60
11
MAY 3801F340-45
12
7403P067-60 Whirlpool Light Switch
13
MAY 4005F448-45
14
MAY 5180D138-60
←
