GA3277WUAM 05 – TOP ASSEMBLY – Aparts

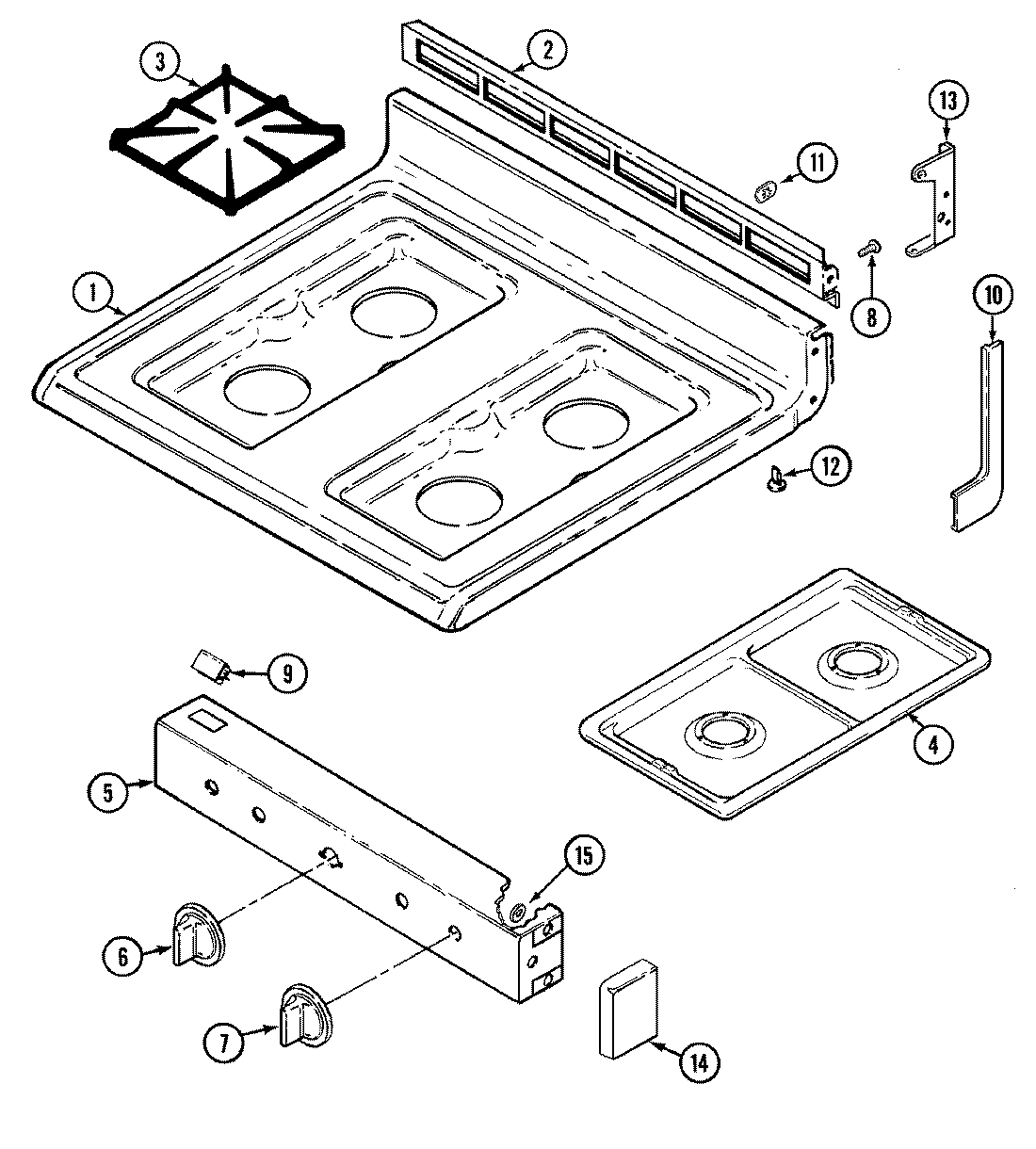

GA3277WUAM 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 2001W085-84
2	MAY 3608F042-09
3	MAY 2003W027-00
4	MAY 5401A452-60
5	MAY 7101P329-60
5	MAY 2616F102-09
6	MAY 7731P064-60
7	MAY 7733P027-60
8	SCREW (10ABX1/4P TR ZN)
9	MAY 7112P087-60
10	MAY 8270P095-60
10	MAY 7746P030-60
10	MAY 7746P031-60
11	WP3195558 Whirlpool Nut
12	MAY 8016P015-60
13	MAY 3807F453-51
13	MAY 8114P348-60
13	MAY 3807F454-51
14	MAY 7713P018-60
15	MAY 7112P092-60
