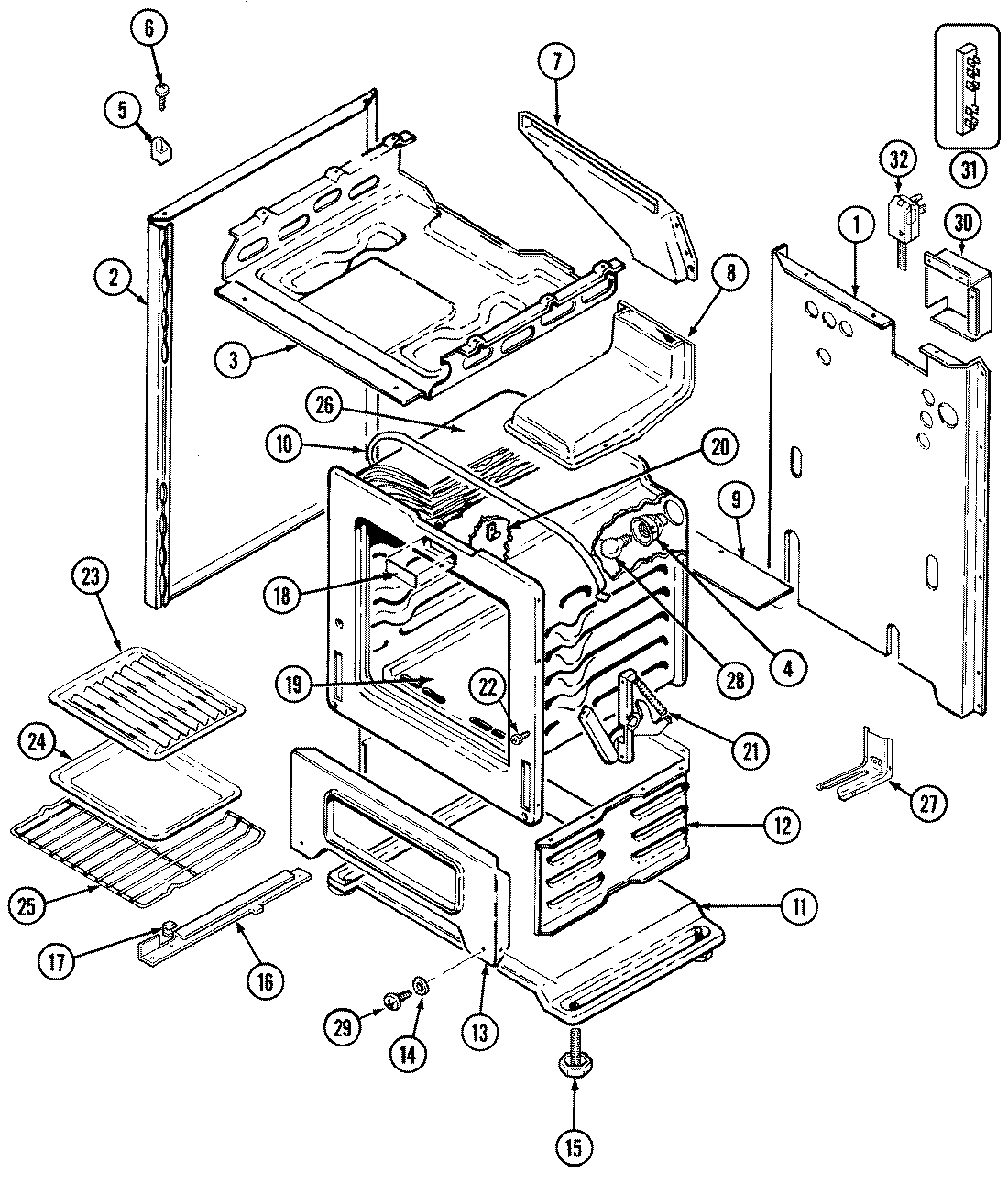

GA3277XUAM 03 – OVEN/BODY – Aparts

GA3277XUAM 03 – OVEN/BODY

Products

Position	Product
NI	MAY 7510P046-60
1	MAY 4002F211-80
2	MAY 2618F110-74
3	MAY 3807F431-45
3	MAY 4011F230-80
4	WP7407P182-60 Whirlpool Lamp
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7118P013-60
7	MAY 4022W005-19
8	WP74003976 Whirlpool Screw
8	MAY 4006W113-45
9	MAY 3807F416-45
10	MAY 4820F001-59
11	MAY 4003W028-80
12	MAY 4016F039-45
13	MAY 2201F073-19
14	MAY 8004P024-60
15	MAY 7101P306-60
16	MAY 3404F021-51
16	MAY 3404F018-51
17	MAY 8016P010-60
18	MAY 8114P335-60
19	MAY 3804F010-50
19	MAY 3601F229-45
19	MAY 7101P290-60
19	MAY 5504A001-19
20	WP7112P004-60 Whirlpool Thermal Clip
21	MAY 7106P055-60
22	SCREW, HINGE
23	MAY Y3413F01619
24	MAY Y3401F02019
25	MAY 7801P036-60
26	MAY 4804F017-60
26	MAY 4804F018-60
27	MAY 3801F218-51
28	MAY 7407P026-60
29	MAY 7101P300-60
30	MAY 4005F385-51
31	MAY 7401P037-60
32	MAY 7402P043-60
32	MAY 5185D250-60
