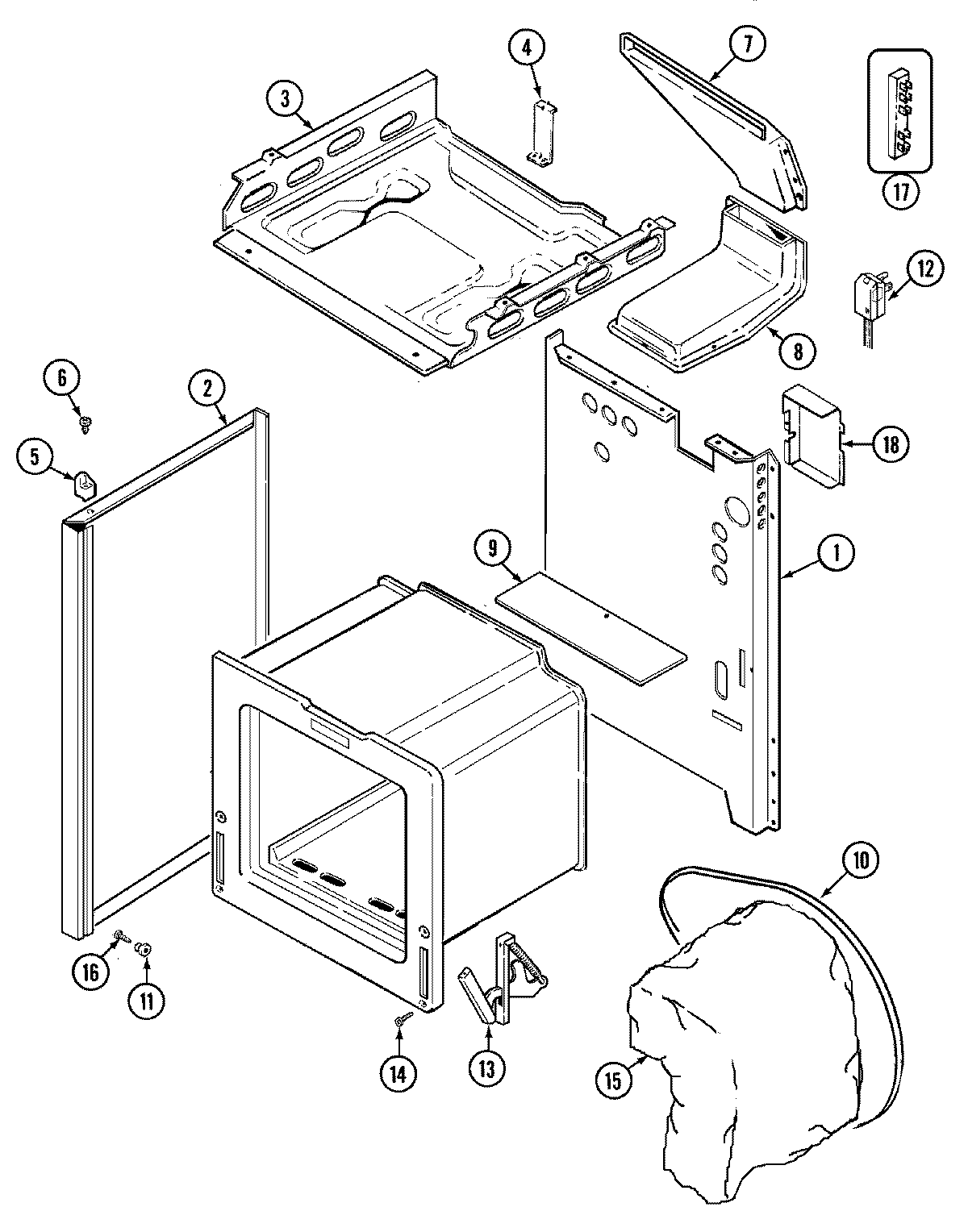

GA3277XUW 01 – BODY
Written by
in
GA3277XUW 01 – BODY
Products
Position
Product
1
MAY 4002F211-80
2
MAY 2618F110-62
3
MAY 4011F230-80
4
MAY 3807F431-45
5
SPACER, MAIN TOP (LT)
5
SPACER, MAIN TOP (RT)
6
MAY 7101P313-60
7
MAY 4022W005-19
8
MAY 4006W113-45
8
WP74003976 Whirlpool Screw
9
MAY 3807F416-45
10
MAY 4820F001-59
11
MAY 8004P024-60
12
MAY 7402P045-60
13
MAY 7106P056-60
14
SCREW (10-24X5/16-NI)
15
MAY 4804F039-60
15
MAY 4804F044-60
16
MAY 74001449
17
MAY 7401P037-60
18
MAY 4005F385-51
←
