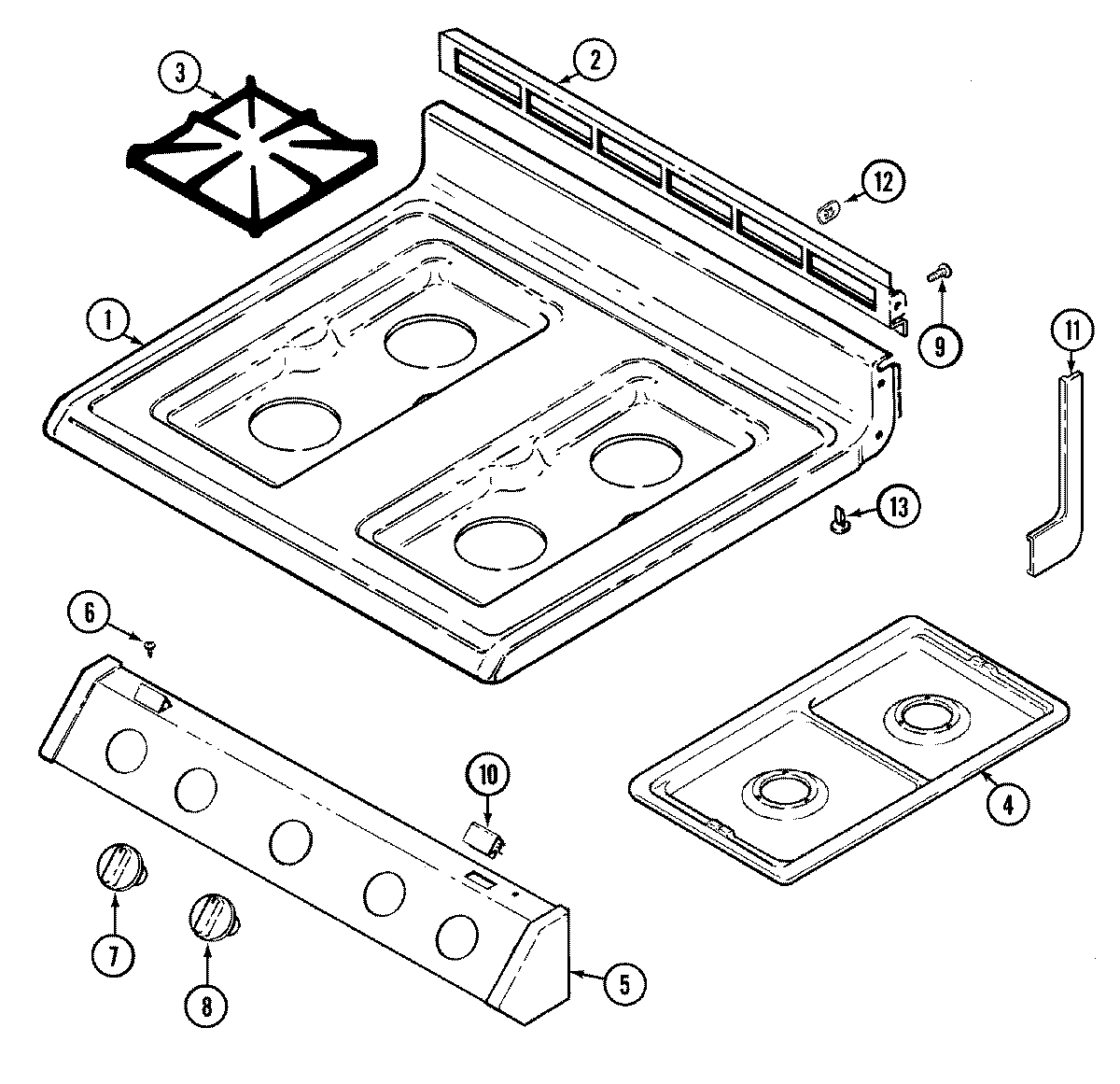

GA3277XUW 06 – TOP ASSEMBLY

GA3277XUW 06 – TOP ASSEMBLY

Written by

in

GA3277XUW 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 2001W085-81
2MAY 3608F042-09
3MAY 2003W026-00
4MAY 5401A452-60
5MAY 7712P134-60
6MAY 7101P329-60
7WP7733P508-60 Whirlpool Knob
8MAY 7731P096-60
9SCREW (10ABX1/4P TR ZN)
10MAY 7112P087-60
11MAY 7746P031-60
11MAY 7746P030-60
11MAY 8270P095-60
12WP3195558 Whirlpool Nut
13MAY 8016P015-60
