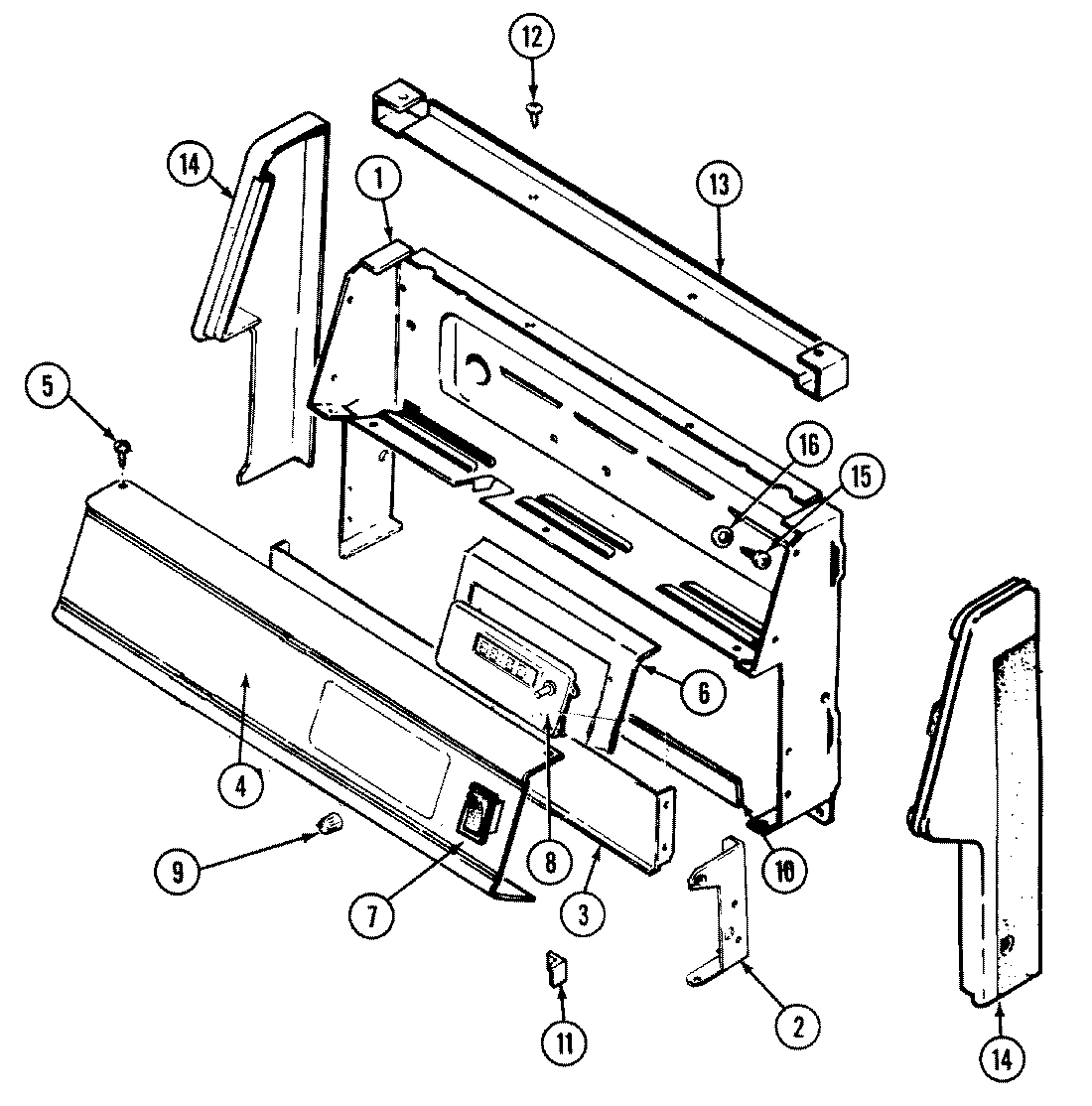

GA3478XUAX 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4005F448-45
1	MAY 4001F091-51
1	MAY 7118P018-60
2	MAY 8010P083-60
3	MAY 3604F188-09
4	MAY 7703P599-60
4	WPY706189 Whirlpool Stove Screw
5	MAY 8036P003-60
6	MAY 7601P283-60
6	MAY 74002825
7	MAY 74001004
8	MAY 7711P431-60
8	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9	7403P067-60 Whirlpool Light Switch
10	MAY 7118P015-60
10	MAY 4001F064-51
11	MAY 7726P059-60
11	MAY 7726P060-60
11	MAY 7101P331-60
12	MAY 3807F454-51
12	MAY 3807F453-51
13	MAY 7103P129-60
17	MAY 5180D152-60
17	MAY 5170P204-60
17	MAY 5125A354-60
18	MAY 8113P066-60
18	MAY 16002079
