GA3488VVV 02 – CONTROL PANEL
Written by
in

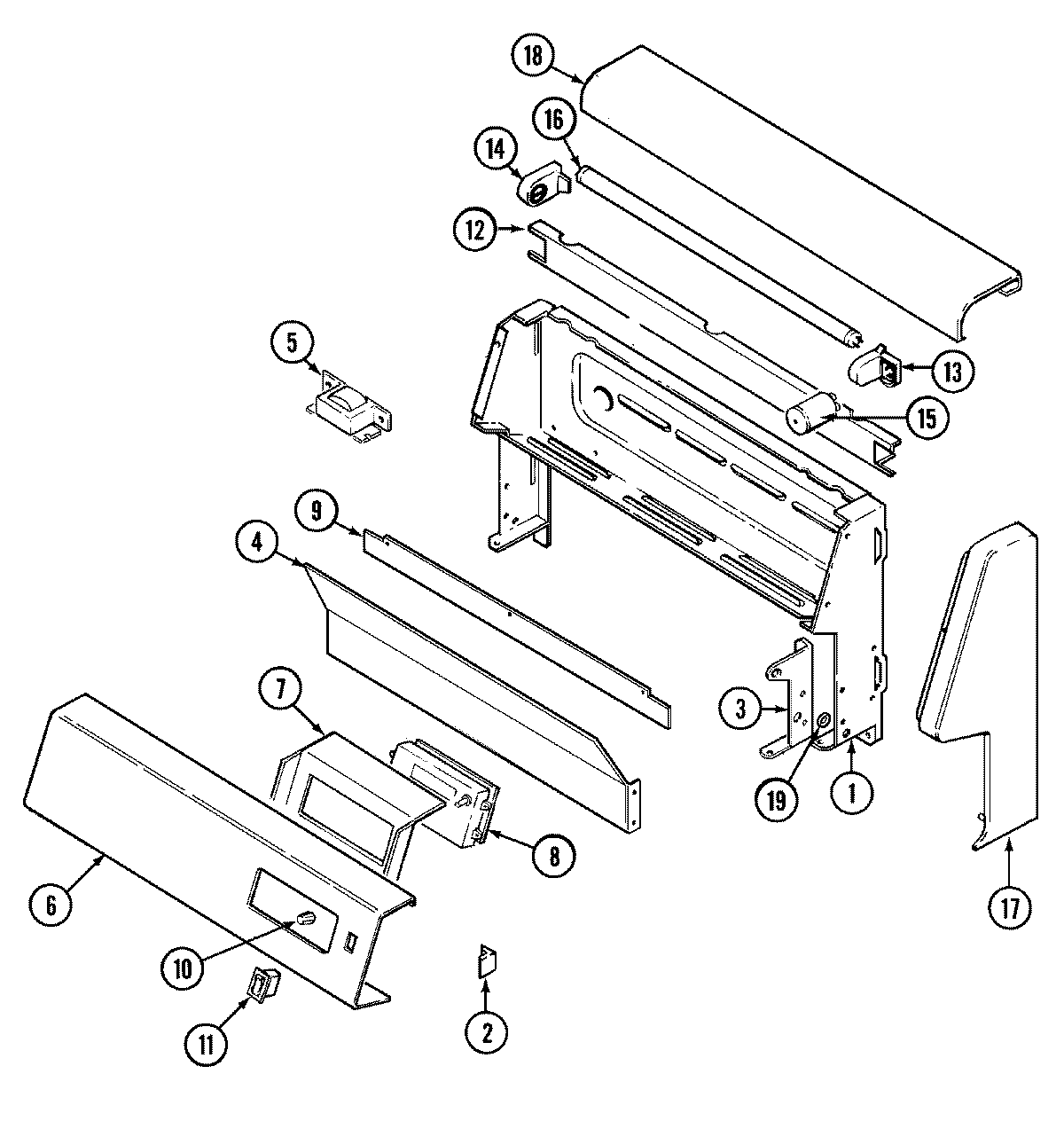

GA3488VVV 02 – CONTROL PANEL
Products
Position
Product
NI
MAY 16002079
NI
MAY 5170P204-60
NI
MAY 5180D151-60
NI
MAY 8113P066-60
1
MAY 4001F091-51
1
MAY 4005F448-45
2
MAY 8010P083-60
3
MAY 3807F454-51
3
MAY 3807F453-51
4
MAY 3604F188-09
5
MAY 7412P010-60
6
WPY706189 Whirlpool Stove Screw
6
MAY 74001508
7
MAY 74001506
8
MAY 7601P284-60
8
MAY 74002604
9
MAY 8036P003-60
10
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10
MAY 7711P493-60
11
MAY 7403P200-60
12
MAY 3807F406-71
13
MAY 7408P029-60
14
MAY 7724P066-60
14
MAY 7408P030-60
15
MAY 7415P001-60
16
MAY 7407P004-60
17
MAY 7726P073-60
17
MAY 7726P074-60
17
SCREW (8BX3/8-NI)
18
MAY 7724P059-60
19
WP3195558 Whirlpool Nut
←
