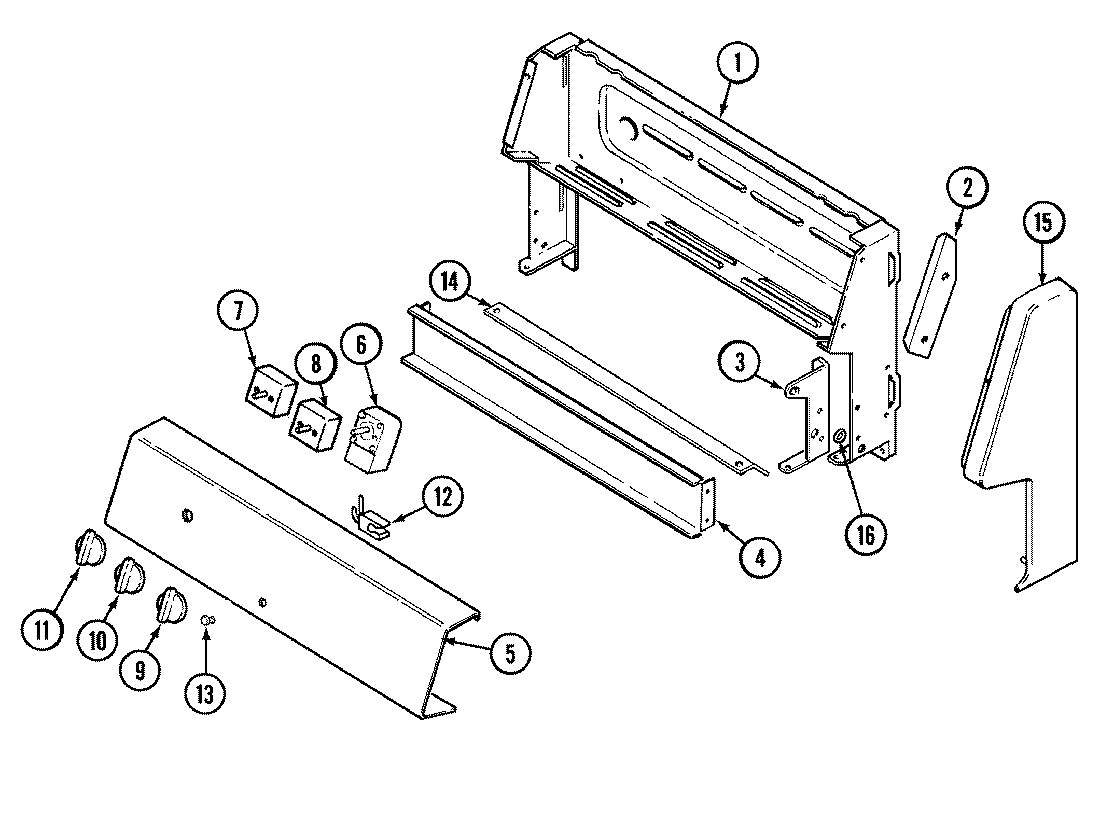

GA3510PRW 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 5170D119-60
NI	MAY 8113P023-60
NI	MAY 16002079
NI	MAY 5175D049-60
NI	MAY 5125A316-60
1	MAY 4001F091-51
2	MAY 3807F450-45
2	MAY 3807F449-45
3	MAY 3418D098-60
3	MAY 3418D097-60
3	SCREW (8BX3/8-NI)
4	MAY 3802F088-51
5	MAY 7118P013-60
5	MAY 2601F393-09
6	MAY 7404P081-60
7	SCREW
7	WP7403P239-60 Whirlpool Oven Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8	WP7403P255-60 Whirlpool Selector Switch
9	MAY 7735P031-60
10	MAY 7739P037-60
11	WP7737P030-60 Whirlpool Knob Switch
12	W10852510 Whirlpool Indicator Light
13	W11690131 Whirlpool Light Lens
14	MAY 3604F201-80
15	MAY 7726P052-60
15	WP98008545 Whirlpool Screw
15	MAY 7726P051-60
16	WP3195558 Whirlpool Nut
