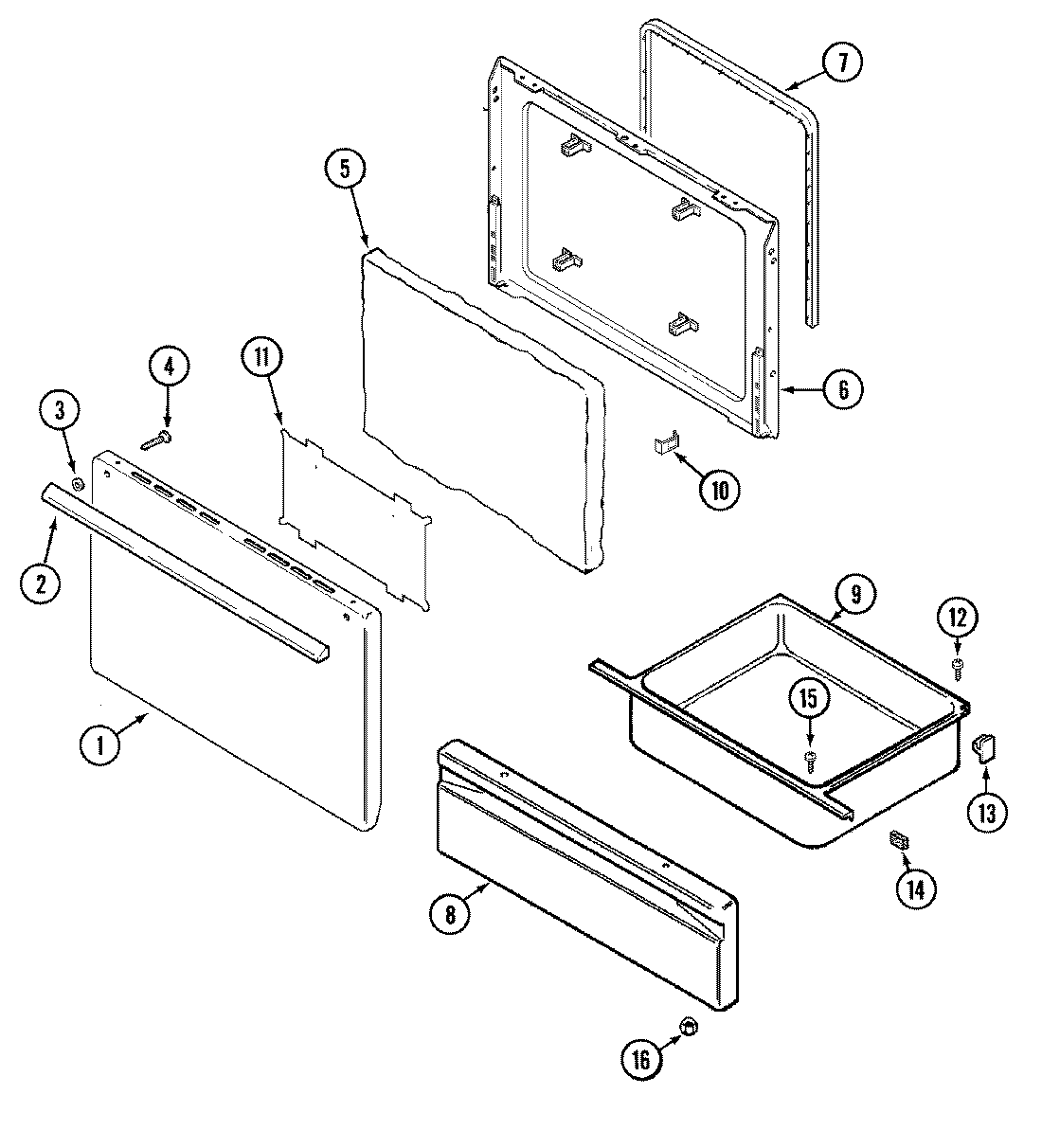

GA3510PRW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74002662
1	MAY 2401F096-62
2	MAY 7701P030-60
2	WP2411F013-70 Whirlpool Door Handle
3	MAY 8010P084-60
4	MAY 7101P080-60
5	MAY 4804F050-60
5	MAY 4804F028-60
6	NUT, SNAP (ROUND-WHT)
6	MAY 74003240
6	MAY 2402W211-19
6	MAY 74002396
7	MAY 7212P034-60
7	WP7212P043-60 Whirlpool Oven Door Seal Gasket
8	MAY 2416F039-62
9	MAY 74003618
9	MAY 3405F019-80
10	CLIP, DOOR
10	SCREW
11	MAY 7101P290-60
11	MAY 3601F235-80
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	WP8004P026-60 Whirlpool Support
13	MAY 74003566
13	WP488130 Whirlpool Air Conditioner Nut
14	MAY 7208P011-60
15	WP7101P072-60 Whirlpool Screw
16	WPW10131078 Whirlpool Nut Assembly
