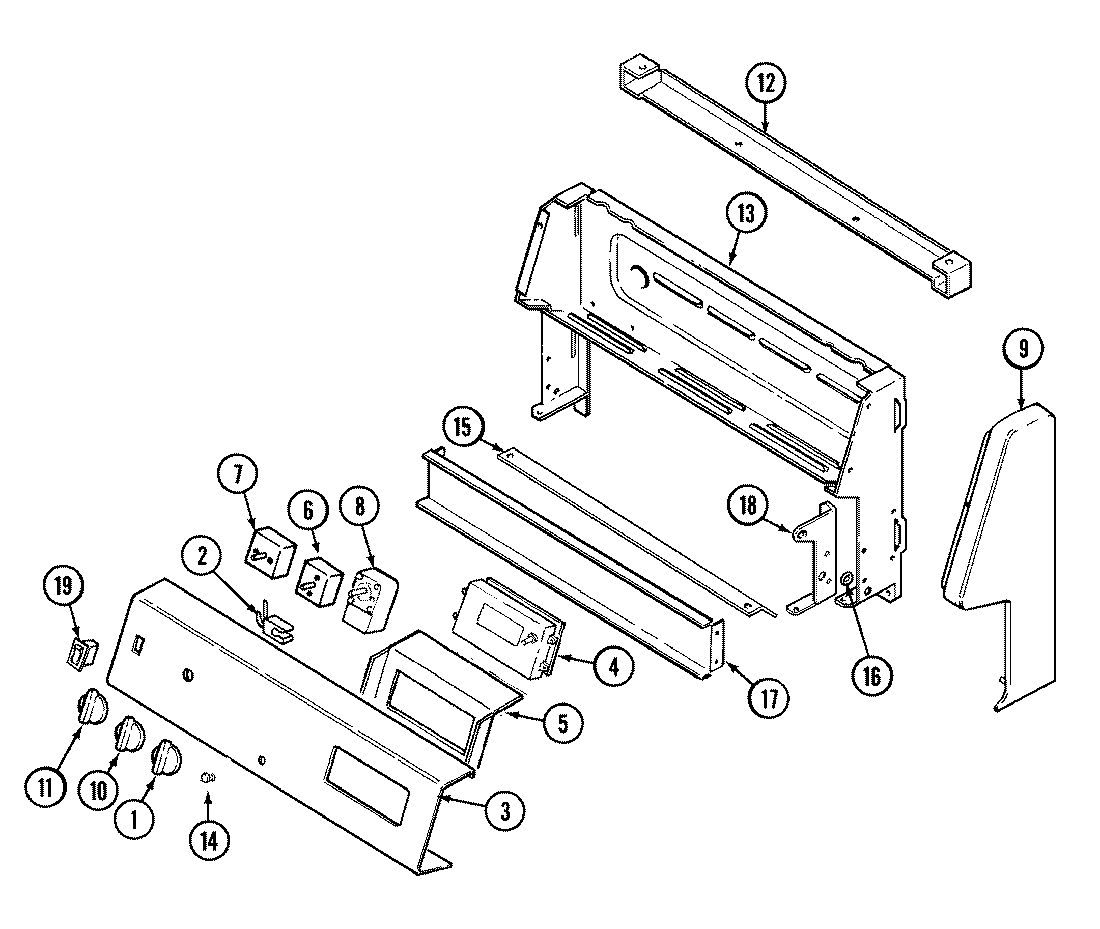

GA3531WUV 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 74001475
NI	MAY 8113P023-60
NI	MAY 5175D049-60
NI	MAY 16002079
NI	MAY 5125A371-60
2	W10852510 Whirlpool Indicator Light
3	MAY 7703P644-60
3	MAY 7719P067-60
4	MAY 74001474
5	MAY 3801F340-45
5	MAY 7101P348-60
6	WP7403P255-60 Whirlpool Selector Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP7403P239-60 Whirlpool Oven Switch
8	SCREW
8	WP7404P105-60 Whirlpool Thermostat
9	MAY 74002709
9	MAY 7726P085-60
9	MAY 7726P086-60
9	MAY 74002710
11	MAY 7731P081-60
12	MAY 4001F064-51
13	MAY 4001F091-51
14	W11690131 Whirlpool Light Lens
15	MAY 3604F201-80
16	WP3195558 Whirlpool Nut
17	MAY 3802F088-51
18	MAY 3418D098-60
18	MAY 3418D097-60
18	SCREW (8BX3/8-NI)
19	MAY 7403P314-60
