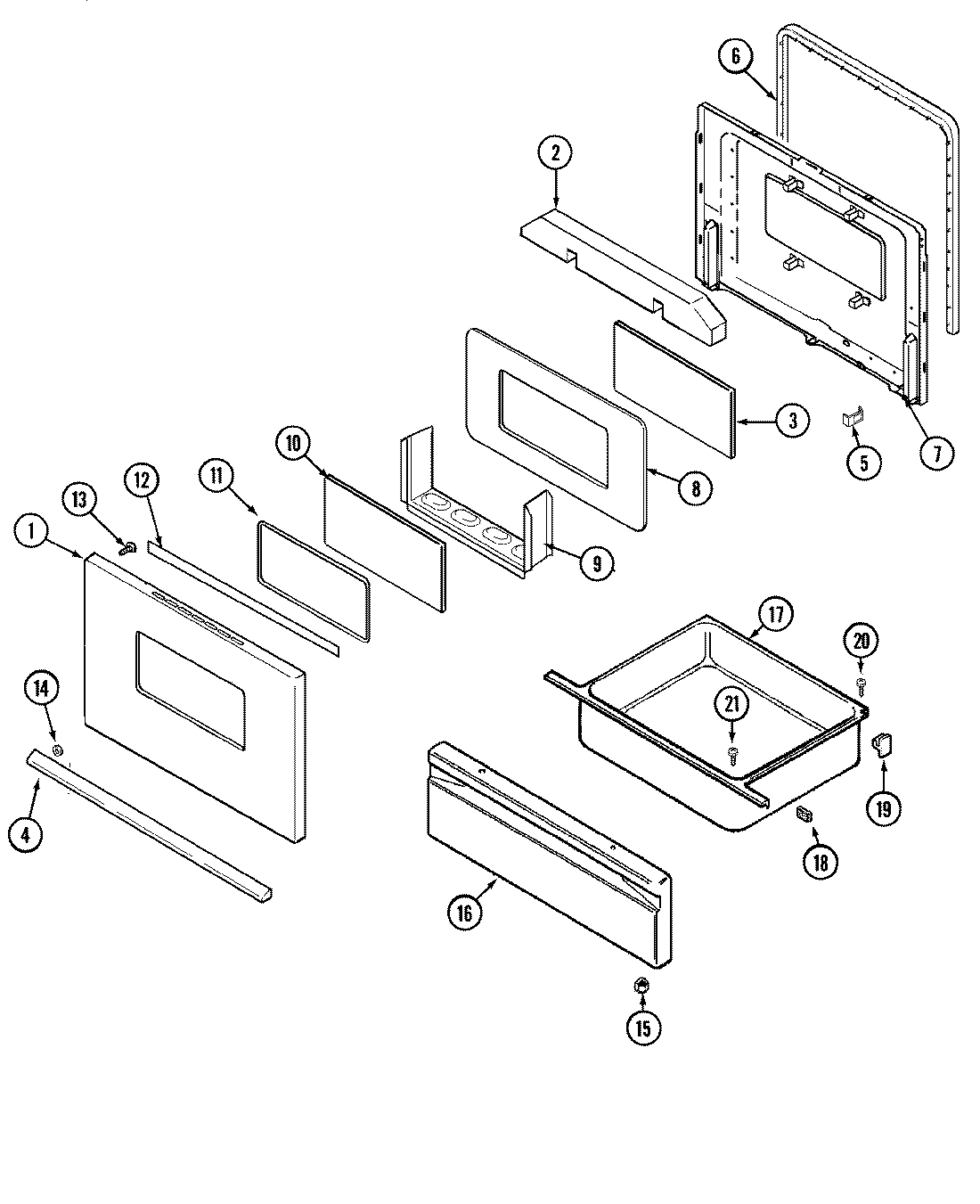

GA3531WUV 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 2401F121-62
2	MAY 74002458
3	MAY 74002459
4	WP2411F013-71 Whirlpool Door Handle
5	CLIP, DOOR
6	WP7212P043-60 Whirlpool Oven Door Seal Gasket
7	MAY 74003248
7	MAY 74002460
8	MAY 74002461
8	MAY 7101P209-60
9	MAY 74002462
10	MAY 74002464
11	MAY 7201P017-60
12	TAPE, FOIL (3`` WIDE)
13	MAY 7101P080-60
14	WP74005058 Whirlpool Spacer Assembly
15	WPW10131078 Whirlpool Nut Assembly
16	MAY 2416F039-62
17	MAY 74003618
17	MAY 3405F019-80
18	MAY 8010P086-60
19	MAY 74003566
19	WP488130 Whirlpool Air Conditioner Nut
19	WP8004P026-60 Whirlpool Support
20	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
21	SCREW
21	WP7101P072-60 Whirlpool Screw
