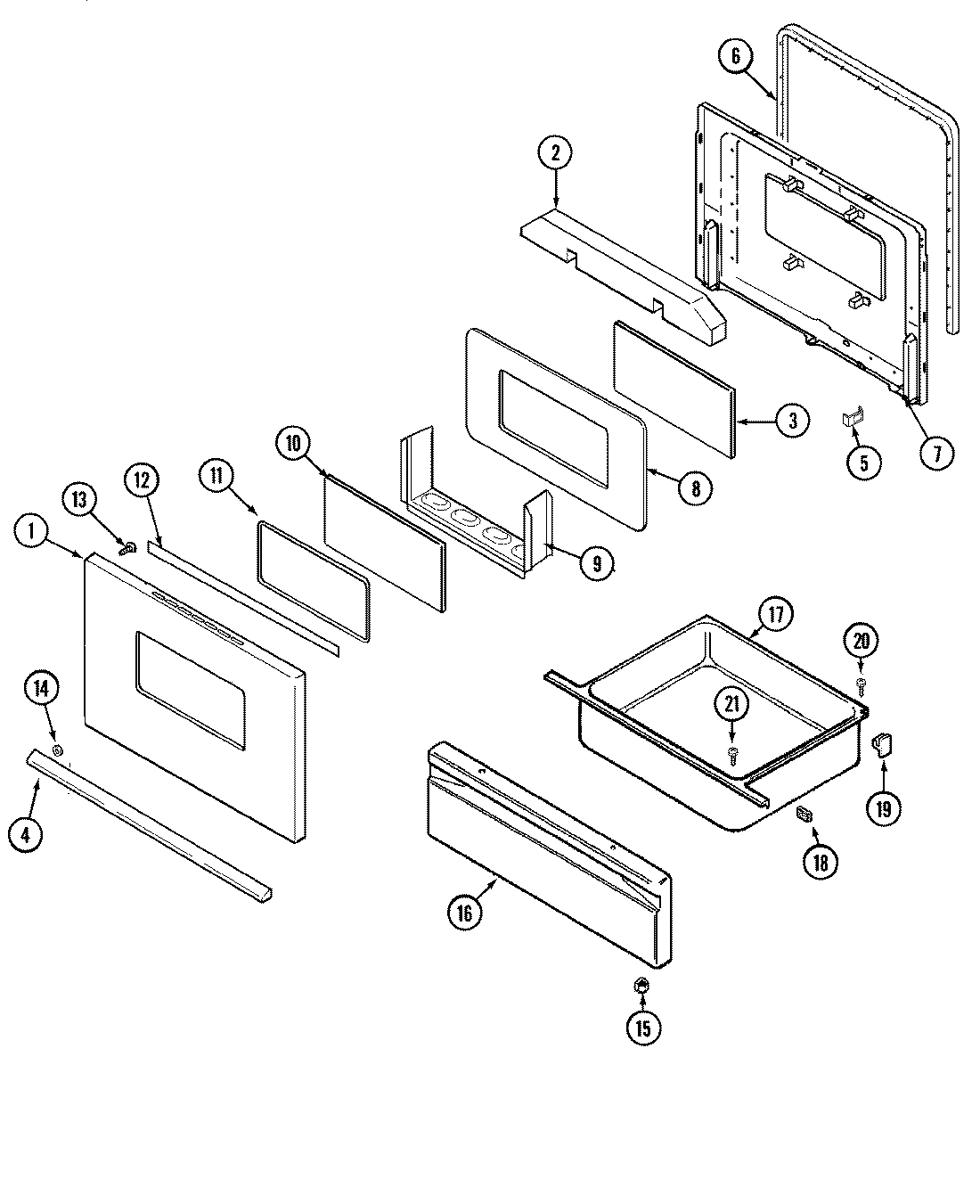

GA3531WUW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 2401F121-62
2MAY 74002458
3MAY 74002459
4WP2411F013-71 Whirlpool Door Handle
5CLIP, DOOR
6WP7212P043-60 Whirlpool Oven Door Seal Gasket
7MAY 74003248
7MAY 74002460
8MAY 7101P209-60
8MAY 74002461
9MAY 74002462
10MAY 74002463
11MAY 7201P017-60
12TAPE, FOIL (3“ WIDE)
13MAY 7101P080-60
14MAY 8010P084-60
15WPW10131078 Whirlpool Nut Assembly
16MAY 2416F039-62
17MAY 3405F019-80
17MAY 74003618
19MAY 74003566
19WP8004P026-60 Whirlpool Support
19WP488130 Whirlpool Air Conditioner Nut
20NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
21WP7101P072-60 Whirlpool Screw
21SCREW
