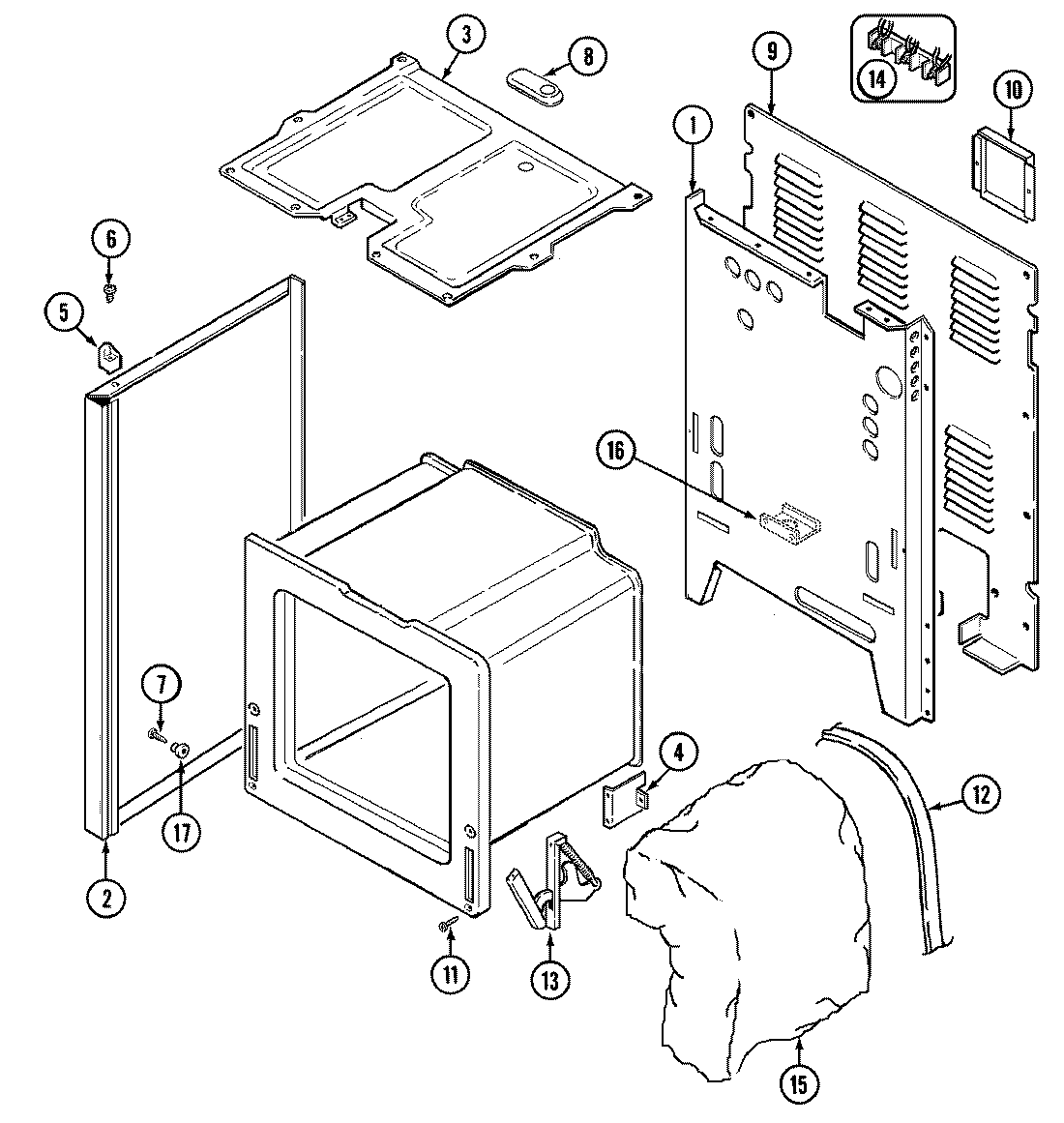

GA3631XUWG 01 – BODY

Products

Position	Product
1	MAY 74001772
1	MAY 74002334
2	MAY 74001504
3	MAY 4011F239-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	W11693756 Whirlpool Screw Assembly
8	COVER, VENT
8	MAY 74001449
9	MAY 4005F455-51
10	MAY 4005F427-51
10	SCREW
11	SCREW (10-24X5/16-NI)
12	MAY 4820F001-59
13	W10876639 Whirlpool Door Hinge Assembly
13	MAY 7106P055-60
14	WPW10245259 Whirlpool Terminal Block
15	MAY 4804F039-60
15	MAY 74003112
16	MAY 3605F174-51
17	MAY 8004P024-60
