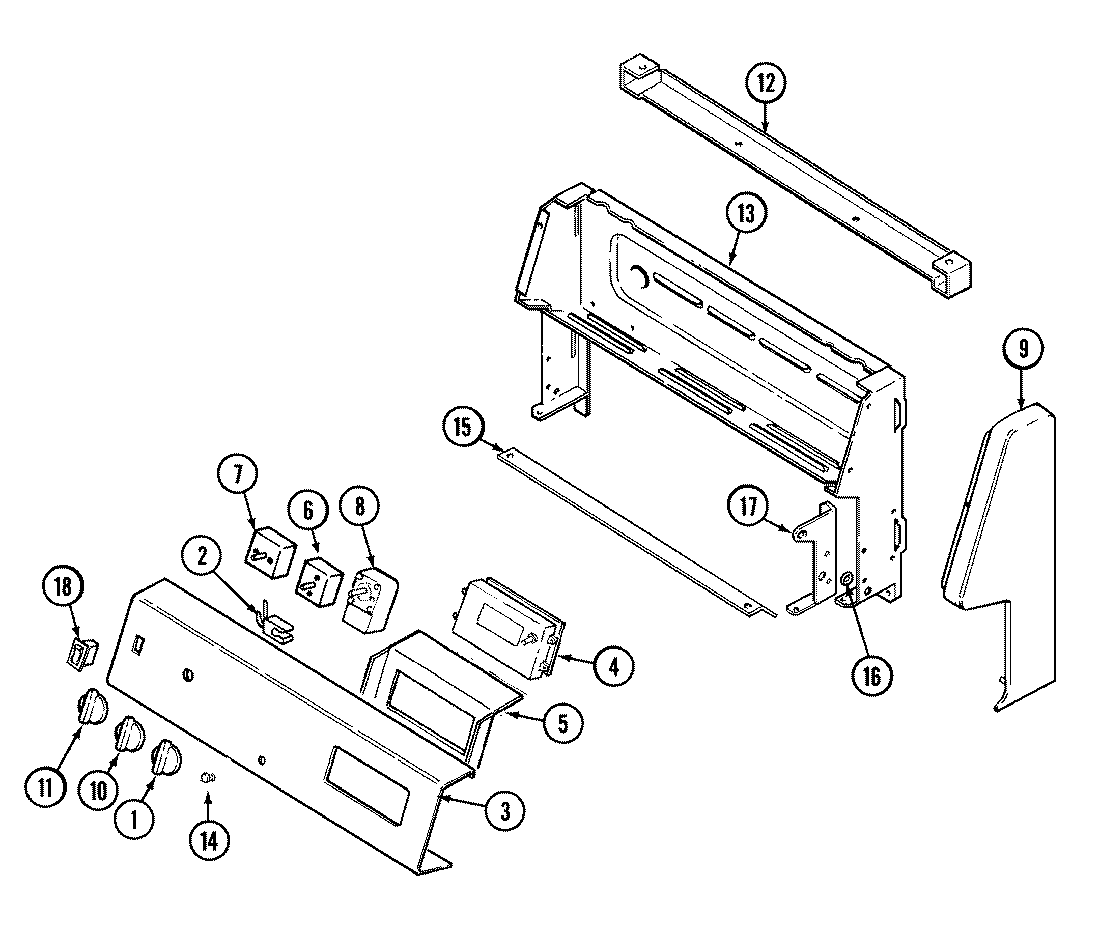

GA3631XUWG 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 74001475
NI	MAY 16002079
NI	MAY 74001013
NI	MAY 74002469
1	MAY 7735P037-60
2	W10852510 Whirlpool Indicator Light
3	MAY 7703P641-60
3	MAY 7719P062-60
4	MAY 7602P122-60
5	WPY706189 Whirlpool Stove Screw
5	MAY 3801F340-45
6	WP7403P255-60 Whirlpool Selector Switch
7	WP7403P239-60 Whirlpool Oven Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8	SCREW
8	WP7404P105-60 Whirlpool Thermostat
9	MAY 74001352
9	MAY 74001355
9	MAY 7101P147-60
10	MAY 7739P043-60
11	MAY 7737P035-60
12	MAY 4001F064-51
13	MAY 74002162
14	W11690131 Whirlpool Light Lens
15	MAY 3604F201-80
16	WP3195558 Whirlpool Nut
17	MAY 3418D098-60
17	MAY 3418D097-60
17	SCREW (8BX3/8-NI)
18	7403P067-60 Whirlpool Light Switch
