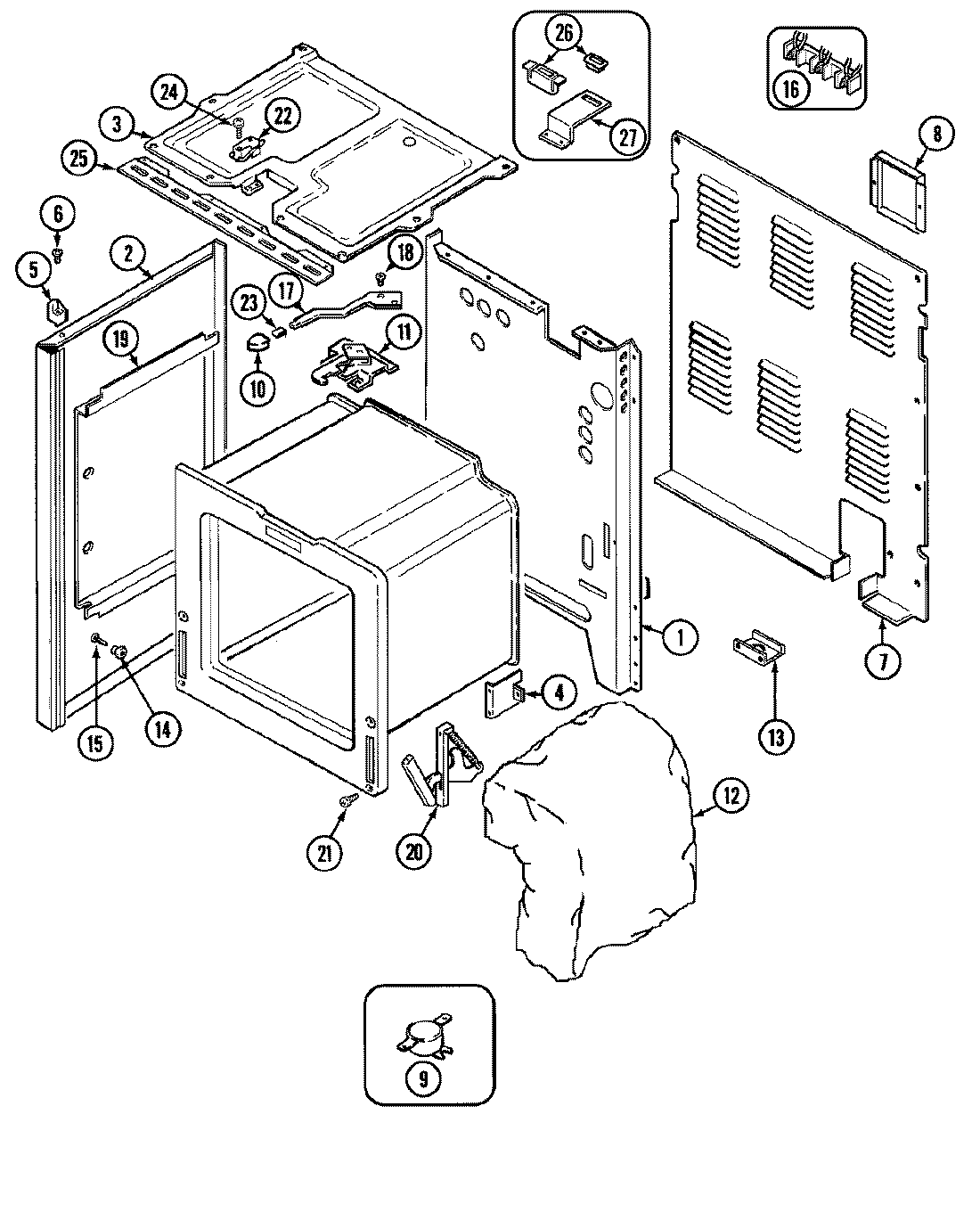

| 1 | MAY 74001341 |
| 2 | MAY 2618F110-71 |
| 3 | MAY 4011F240-19 |
| 3 | MAY 74001753 |
| 4 | SUPPORT,OVEN REAR |
| 5 | SPACER, MAIN TOP (LT) |
| 5 | SPACER, MAIN TOP (RT) |
| 6 | MAY 7101P313-60 |
| 7 | MAY 4005F348-51 |
| 8 | MAY 4005F376-51 |
| 9 | MAY 7403P160-60 |
| 10 | MAY 7701P132-60 |
| 11 | MAY 74003032 |
| 11 | MAY 8002P025-60 |
| 11 | MAY 7101P280-60 |
| 11 | W10828565 Whirlpool Screw |
| 12 | MAY 4804F038-60 |
| 12 | MAY 4804F036-60 |
| 13 | MAY 3605F174-51 |
| 14 | MAY 8004P024-60 |
| 15 | MAY 74001449 |
| 16 | WPW10245259 Whirlpool Terminal Block |
| 17 | MAY 8009P024-60 |
| 18 | SCREW, LEVER |
| 18 | MAY 7109P015-60 |
| 19 | MAY 3804F103-51 |
| 20 | MAY 7106P056-60 |
| 21 | SCREW, HINGE |
| 22 | MAY 7403P228-60 |
| 23 | MAY 7112P003-60 |
| 24 | SCREW |
| 25 | MAY 3801F305-80 |
| 26 | MAY 7407P097-60 |
| 26 | MAY 74003053 |
| 27 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 27 | MAY 3801F312-45 |
