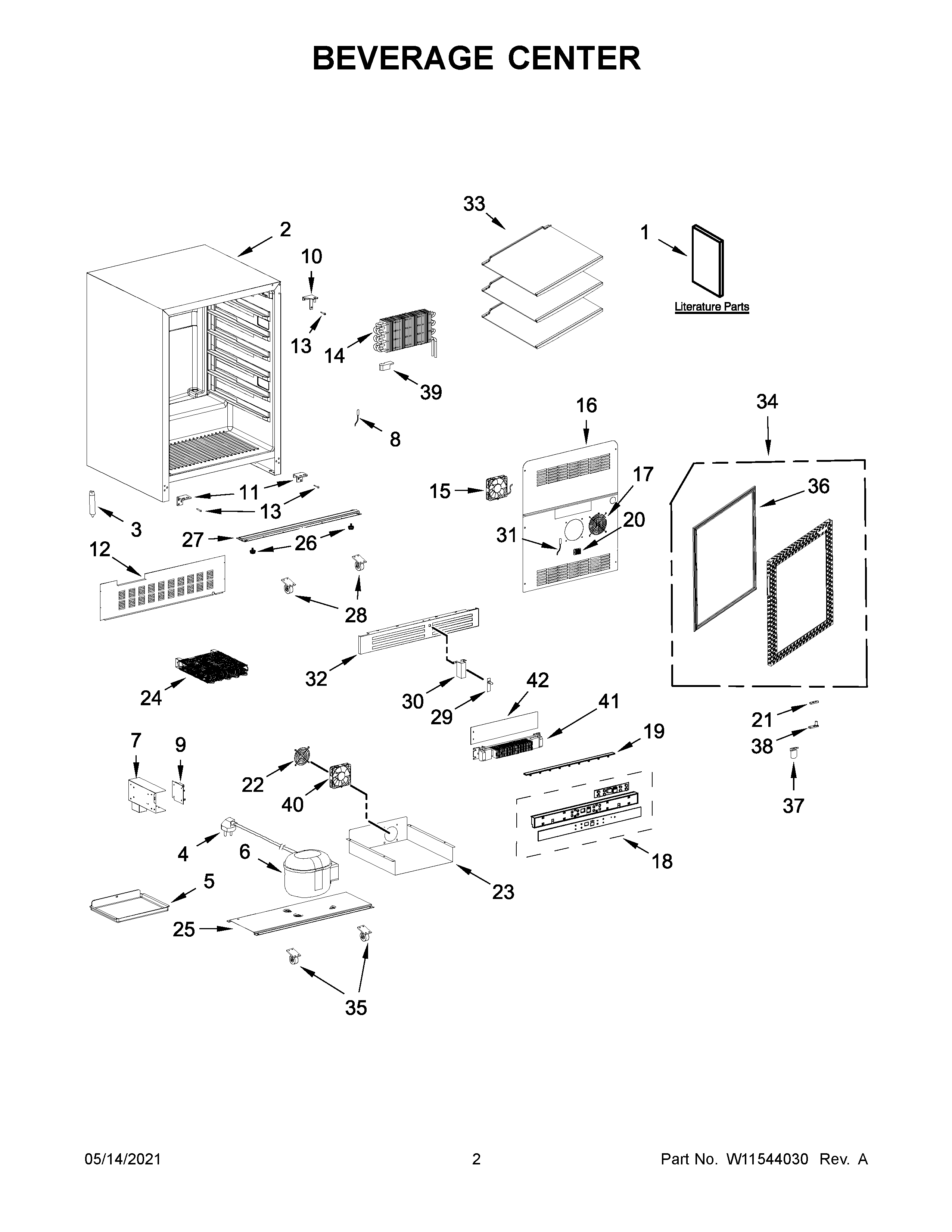

GABC05FDKG00 02 – BEVERAGE CENTER

Products

PositionProduct
NIREFRIGERANT CHARGE 35 GRAMS (R600A)
1USE & CARE GUIDE
1AENERGY GUIDE
2CABINET (NOT A SERVICABLE PART)
3W11290639 Whirlpool Refrigerator Dryer Tube
4W10782176 Whirlpool Refrigerator Power Cord
5W11290643 Whirlpool Refrigerator Drip Pan
6W11297348 Whirlpool Refrigerator Compressor
7COVER, PCB
8W11290657 Whirlpool Refrigerator Thermistor
9W11543701 Whirlpool Power Board
10W10782193 Whirlpool Refrigerator Door Hinge
10AW10782260 Whirlpool Refrigerator Door Hinge
11W11255249 Whirlpool Refrigerator Door Hinge
11AW11255250 Whirlpool Door Hinge
12BACK COVER
13W10782261 Whirlpool Refrigerator Screw
14W10782196 Whirlpool Refrigerator Evaporator
15W10792631 Whirlpool Refrigerator Fan
16AIR DUCT BOARD
17COVER, EVAPORATOR FAN
18CONTROL PANEL ASSEMBLY
19LED LIGHT
20COVER, SENSOR
21W11255595 Whirlpool Refrigerator Door Stop
22W10782255 Whirlpool Refrigerator Air Cover
23COVER, CONDENSER
24CONDENSER
25CONTROL PANEL ASSEMBLY
26W10782249 Whirlpool Refrigerator Leveler
27SUPPORT, FRONT LEG
28CASTER, FRONT SWIVEL
29W10782243 Whirlpool Refrigerator Switch
30W10782242 Whirlpool Refrigerator Bracket
31W11296649 Whirlpool Refrigerator Thermistor
32KICK PLATE
33ASSEMBLY, GLASS
34DOOR ASSEMBLY
35CASTER, BACK SWIVEL
36W10782239 Whirlpool Refrigerator Gasket
37W11544616 Whirlpool Bracket
38W10782241 Whirlpool Refrigerator Closer
39FOAM
40W11678274 Whirlpool Fan Assembly
41HEATER
42HEATER PROTECTOR PLATE
