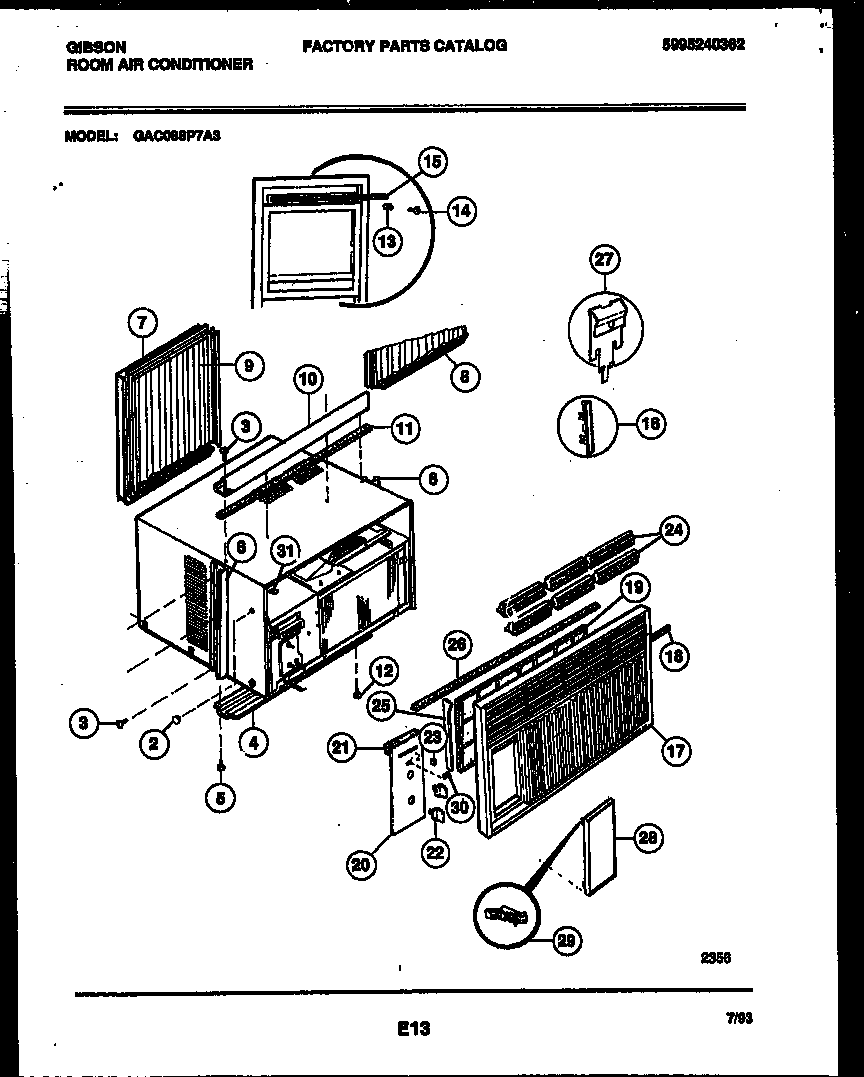

GAC088P7A3 02 – CABINET PARTS

Products

Position	Product
1	WCI 5303270060
2	SCREW
3	134178901 Frigidaire Screw
4	WCI 5303270072
5	SCREW
6	WCI 5303298326
7	WCI 5303282370
8	WCI 5303282371
9	WCI 5303270075
10	WCI 5303270064
11	WCI 08016226
12	WCI 08016080
13	WCI 5308002974
14	BRACKET
15	5304407729 Frigidaire Air Conditioner Seal
16	RETAINER-LOUVER HORIZONTAL
17	WCI 5303300137
18	WCI 3017320
19	FILTER-AIR
20	WCI 5303300983
20	WCI 5303300139
21	SEAL-DIAL PLATE
22	WCI 5303017300
23	WCI 5303017340
24	WCI 3017318
25A	RAIL-FILTER RH (NON-ILLUSTRATED)
25	RAIL FILTER LH
26	SEAL TOP FRAME
27	WCI 5303295272
28	WCI 5303300138
29	HINGE – DOOR
30	KNOB – SLIDE, SWITCH
31	NUT – FRONT LOCK
