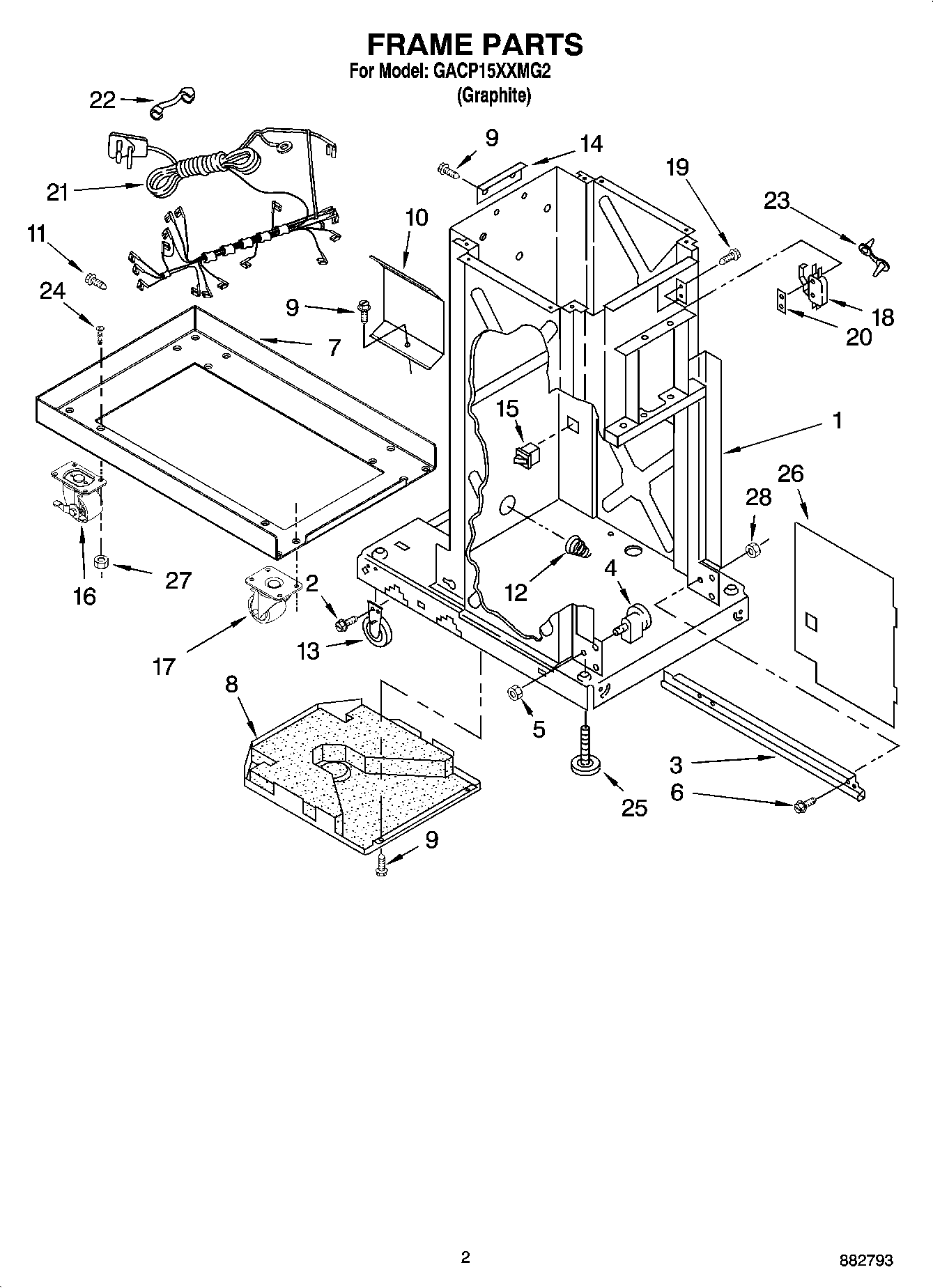

GACP15XXMG2 02 – FRAME PARTS

Products

Position	Product
1	Frame (Not a Serviceable Part)
2	WP3351614 Whirlpool Screw
3	SLIDE
3	WP9870975 Whirlpool Compactor Slide
4	882688 Whirlpool Compactor Bearing
5	WP776356 Whirlpool Compactor Nut
6	WP486754 Whirlpool Compactor Screw
7	Base, Frame
8	WP780437 Whirlpool Compactor Bottom Pan
9	WP489478 Whirlpool Refrigerator Screw
10	9870867 Whirlpool Shield
11	WP488234 Whirlpool Air Conditioner Screw
12	WP777180 Whirlpool Compactor Spring
13	W11023674 Whirlpool Compactor Leveling Wheel
14	Angle, Top Bracket
15	WP4387911 Whirlpool Refrigerator Switch
16	Caster, Rigid
17	9871957 Whirlpool Caster Wheel
18	WP777811 Whirlpool Compactor Directional Switch
19	777849 Whirlpool Compactor Screw
20	Plate, Nut
21	Wiring Harness & Power Cord
22	Bushing, Cord
23	Clamp, Wire
24	W11721628 Whirlpool Screw Assembly
24	W11189635 Whirlpool Refrigerator Screw
25	WPW10001130 Whirlpool Leveling Leg
26	WP9870444 Whirlpool Compactor Inner Panel
27	WP486692 Whirlpool Refrigerator Nut
28	NUT
