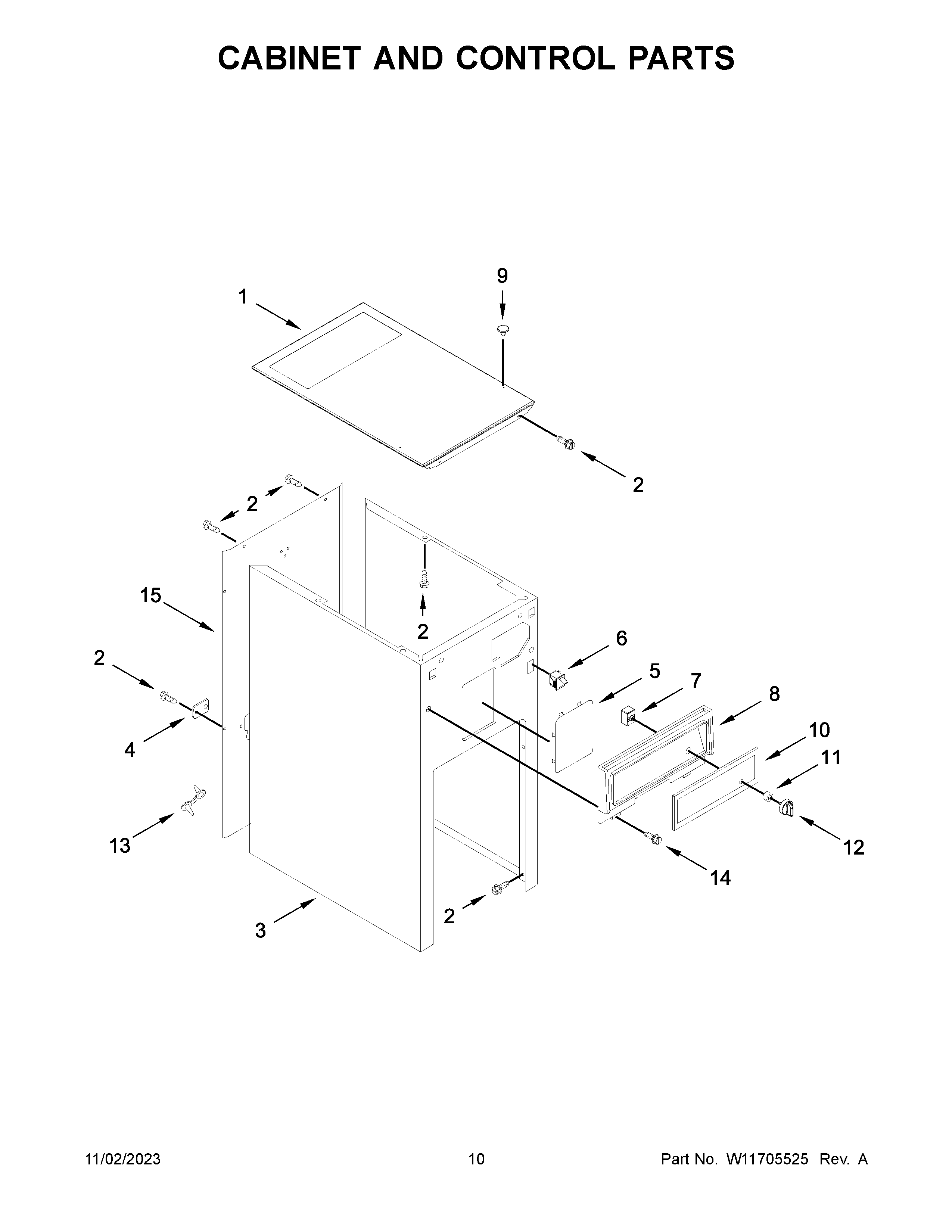

GACP15XXMG5 06 – CABINET AND CONTROL PARTS

Products

PositionProduct
1TOP (GRANITE)
2WP489478 Whirlpool Refrigerator Screw
3WRAPPER, CABINET (GRANITE)
4Plate, Power Cord
59871160 Whirlpool Switch Plate
69871829 Whirlpool Trash Compactor Door Switch
7675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
8WP9871839B Whirlpool Compactor Escutcheon
9Plug, Hole
109871959 Whirlpool Insert
11WP777383 Whirlpool Compactor Nut
12WP9871800 Whirlpool Compactor Switch Knob
13Clamp, Wire
14Screw
15Panel, Back
