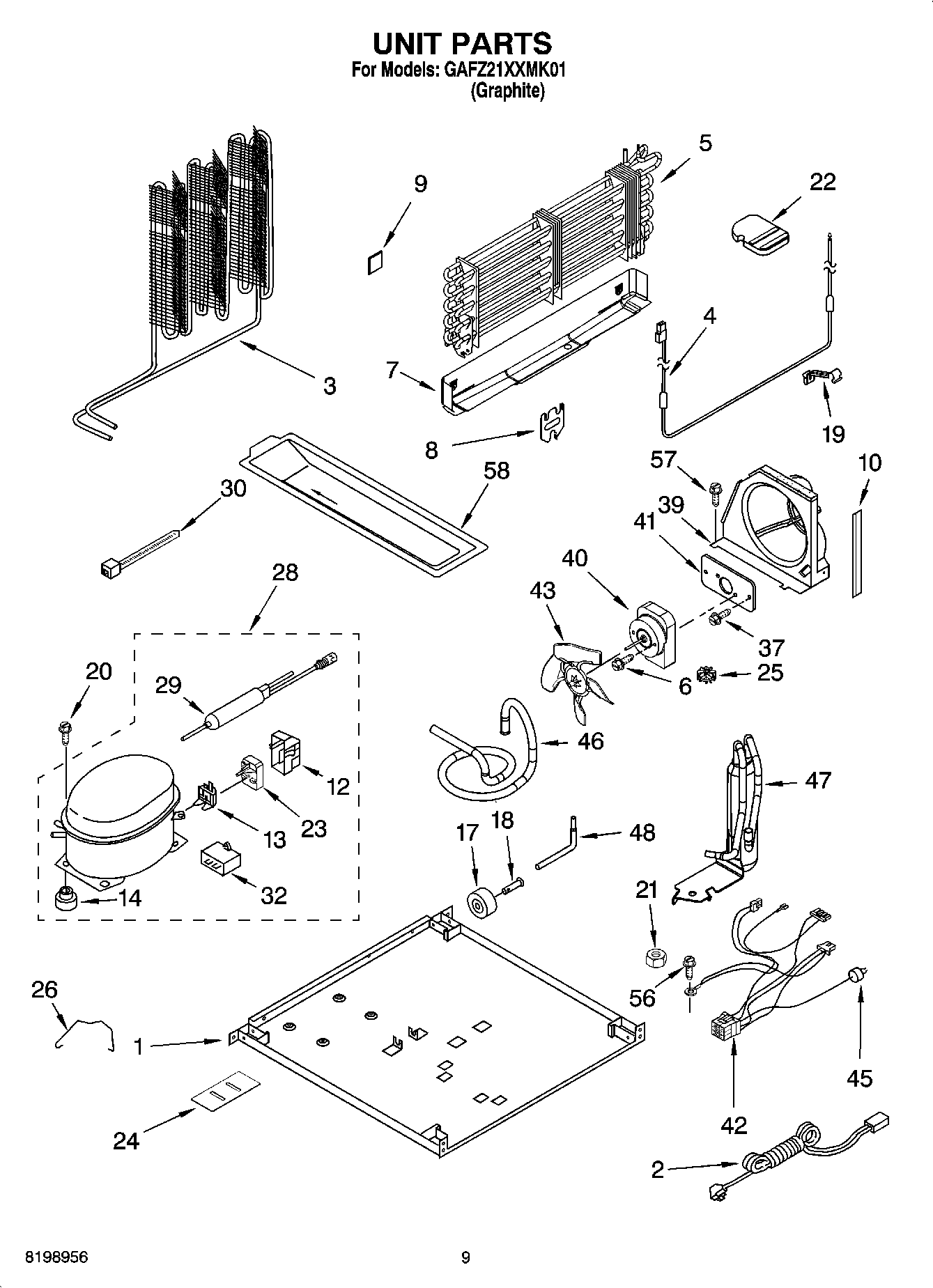

GAFZ21XXMK01 05 – UNIT PARTS

GAFZ21XXMK01 05 – UNIT PARTS

Written by

in

GAFZ21XXMK01 05 – UNIT PARTS

Products

PositionProduct
1Plate, Unit Mounting
22187762 Whirlpool Refrigerator Power Cord
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315530 Whirlpool Refrigerator Heater
5Evaporator Assy.
68281197 Whirlpool Refrigerator Screw
7Drain Pan
8Bracket, Heater
9W11553819 Whirlpool Refrigerator Insulation
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2154697 Whirlpool Refrigerator Overload
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14876811 Whirlpool Grommet
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
21Nut (Not Serviced)
22Support Block
23WP2319792 Whirlpool Refrigerator Start Device
24Cover, Unit
25Grommet
26Clip, Retaining
28W10309994 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
37WP8281196 Whirlpool Screw
39Air Baffle
40W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
41Plate
422187761 Whirlpool Refrigerator Wire Harness
43W11458267 Whirlpool Refrigerator Fan Blade
45Bi-metal
46Tube, Discharge
47Accumulator Assembly
482154109 Whirlpool Refrigerator Tube
56WP489128 Whirlpool Refrigerator Screw
573400518 Whirlpool Oven Foot Mount Screw
58REFRIGERANT CHARGE 4.75 Ozs. (R134
588201826 Whirlpool Refrigerator Evaporator Tray
58Following Parts Not Illustrated and Optional Parts Not Included
58978027 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (5/8“)
58VALVE, ACCESS (1/2“)
58WP978025 Whirlpool Refrigerator Valve
58978030 Whirlpool Refrigerator Valve
58978026 Whirlpool Refrigerator Primary Valve
58876764 Whirlpool Refrigerator Primary Valve
