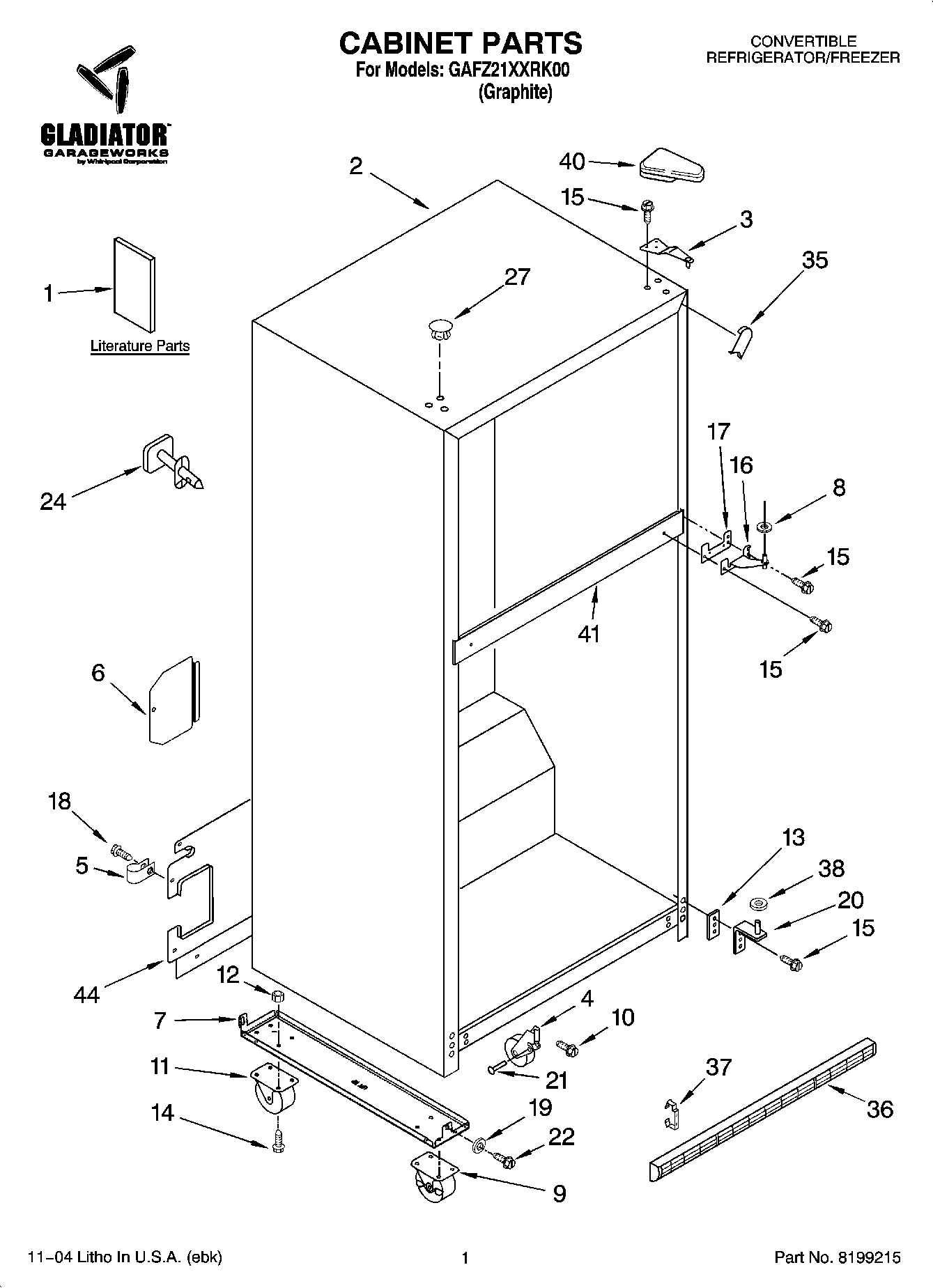

GAFZ21XXRK00 01 – CABINET PARTS

Products

Position	Product
1	Door Removal/ Reversal Instructions
1	Customer Quick Tips
1	Literature Parts (Spanish)
1	Literature Parts (English)
1	Use & Care Guide
1	Service & Wiring Sheet (English) Energy Label
2	Cabinet (Not A Serviceable Part)
3	WP2261963 Whirlpool Refrigerator Door Hinge
4	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	489348 Whirlpool Refrigerator Tube Clamp
6	Cover, Water Valve
7	Bracket, Caster (Right)
7	Bracket, Caster (Left)
8	WP489467 Whirlpool Hinge Shim
9	WP2253168 Whirlpool Refrigerator Caster
10	WP3400504 Whirlpool Refrigerator Screw
11	WP2253169 Whirlpool Refrigerator Caster
12	WP8533952 Whirlpool Refrigerator Nut
13	Shim, Bottom Hinge
14	WP3400527 Whirlpool Refrigerator Screw
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
19	Lock Washer (4)
20	WP2254473 Whirlpool Refrigerator Door Hinge
21	W11594405 Whirlpool Axle
22	3400241 Whirlpool Screw
24	Fitting, Water Tube (Not Serviced)
27	Hole Plug (6) (Graphite)
35	Corner Filler (2) (Graphite)
36	Grille (Graphite)
37	CLIP, GRILLE
38	WP487576 Whirlpool Washer
40	Cover, Hinge (Graphite)
41	Rail Center (Not Serviced)
44	Cover, Unit
