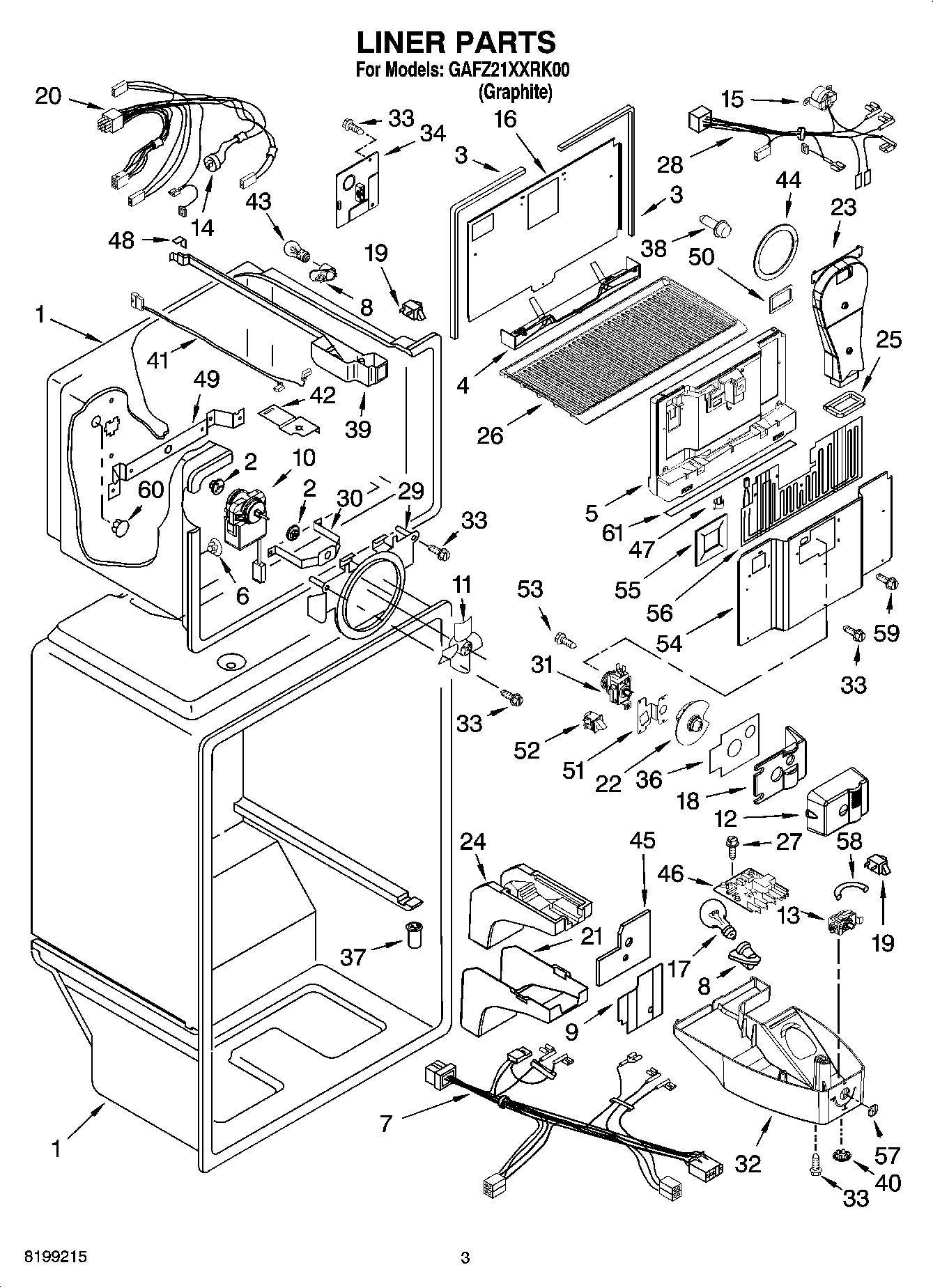

GAFZ21XXRK00 02 – LINER PARTS

GAFZ21XXRK00 02 – LINER PARTS

Written by

in

GAFZ21XXRK00 02 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3Gasket, Evaporator Cover (2)
4Pan, Drain
5Cover, Insulated Evaporator
6WP941839 Whirlpool Refrigerator Button Plug
7Wire Assembly, Control Box
84387478 Whirlpool Refrigerator Light Socket
9Shield, Electrical
10WP2320109 Whirlpool Refrigerator Evaporator Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13WP2253122 Whirlpool Refrigerator Thermostat
14WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
152253219 Whirlpool Refrigerator Bimetallic Defrost
16Cover, Evaporator
17W10887190 Whirlpool Refrigerator Light Bulb
18EPS-Control, Evap.
19W11384469 Whirlpool Door Switch
20Wire Assembly, Freezer Compartment (Includes Item 14)
21Cover, Air Diffuser
22Knob, Thermostat
23Air Tower
24Air Diffuser, Bottom
25Gasket, Air Tower
26Floor, Freezer
27Screw
28Harness, Wiring (Upper Control)
29Bracket, Fan Motor
30Bracket, Evap. Fan, Front
31WP2253228 Whirlpool Refrigerator Thermostat
32Box, Control
33WP489478 Whirlpool Refrigerator Screw
34WP2217784 Whirlpool Refrigerator Cover
36Gasket, Mylar
37WP2210509 Whirlpool Refrigerator Tub Valve
38Fastener (2)
39Housing Base
40940014 Whirlpool Refrigerator Primary Button Plug
41Wiring Harness, Freezer Light
42Electrical Shield, Freezer Light
434396822 Whirlpool Refrigerator Light Bulb
44Gasket, Air Tower Inlet
45Shield, heat
46Board, Control
47WP1115374 Whirlpool Refrigerator Clip
48Gasket, Rear
49Bracket, Evap. Fan, Rear
50Gasket, Air Tower
51Bracket, Control
522225399 Whirlpool Refrigerator Switch
53WP693995 Whirlpool Screw
54Cover, Evaporator
55Gasket
56Heater, Auxilary
57WP2202885 Whirlpool Refrigerator Thermal Knob
58WP2196003 Whirlpool Refrigerator Bar Riser
59WPL 8533886
60WP487996 Whirlpool Refrigerator Cap Tube
61WP2253055 Whirlpool Refrigerator Gasket
