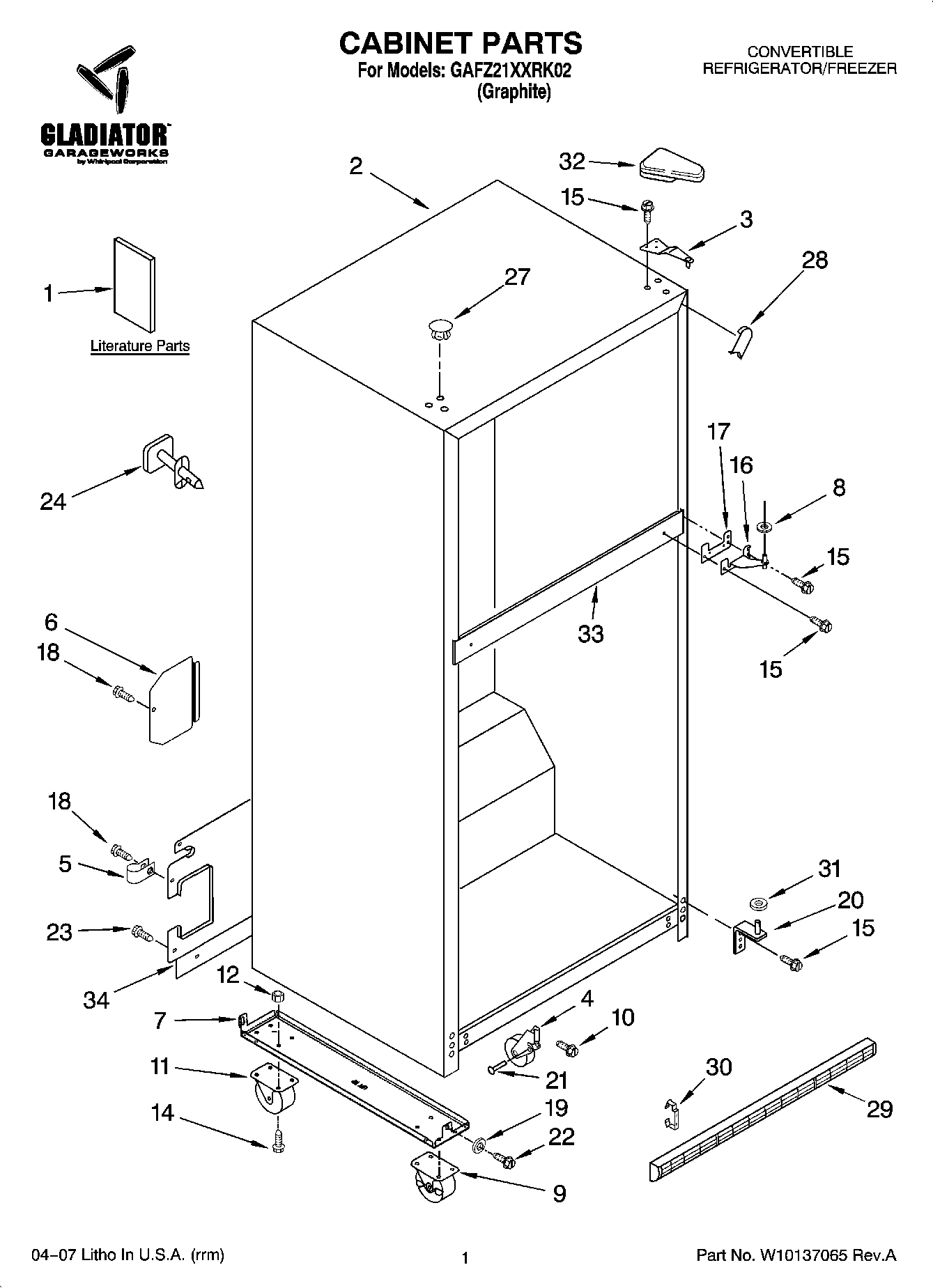

GAFZ21XXRK02 01 – CABINET PARTS

GAFZ21XXRK02 01 – CABINET PARTS

Written by

in

GAFZ21XXRK02 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Customer Quick Tips
1Service & Wiring Sheet (English)
1Energy Label (Spanish)
1Energy Label (English)
2Cabinet, (Not A Serviceable Part)
3WP2261963 Whirlpool Refrigerator Door Hinge
4WP2166108 Whirlpool Refrigerator Cabinet Roller
5489348 Whirlpool Refrigerator Tube Clamp
6Cover, Water Valve
7Bracket, Caster (Left)
7Bracket, Caster (Right)
8WP489467 Whirlpool Hinge Shim
9WP2253168 Whirlpool Refrigerator Caster
10WP3400504 Whirlpool Refrigerator Screw
11WP2253169 Whirlpool Refrigerator Caster
12WP8533952 Whirlpool Refrigerator Nut
14WP3400527 Whirlpool Refrigerator Screw
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
19Lock Washer (4)
20WP2254473 Whirlpool Refrigerator Door Hinge
21W11594405 Whirlpool Axle
223400241 Whirlpool Screw
23WP489427 Whirlpool Refrigerator Screw
24Fitting, Water Tube (Not Serviced)
27Hole Plug (6) (Graphite)
28Corner Filler (2) (Graphite)
29Grille (Graphite)
30CLIP, GRILLE
31WP487576 Whirlpool Washer
32Cover, Hinge (Graphite)
33Rail, Center (Not Serviced)
34Cover, Unit
