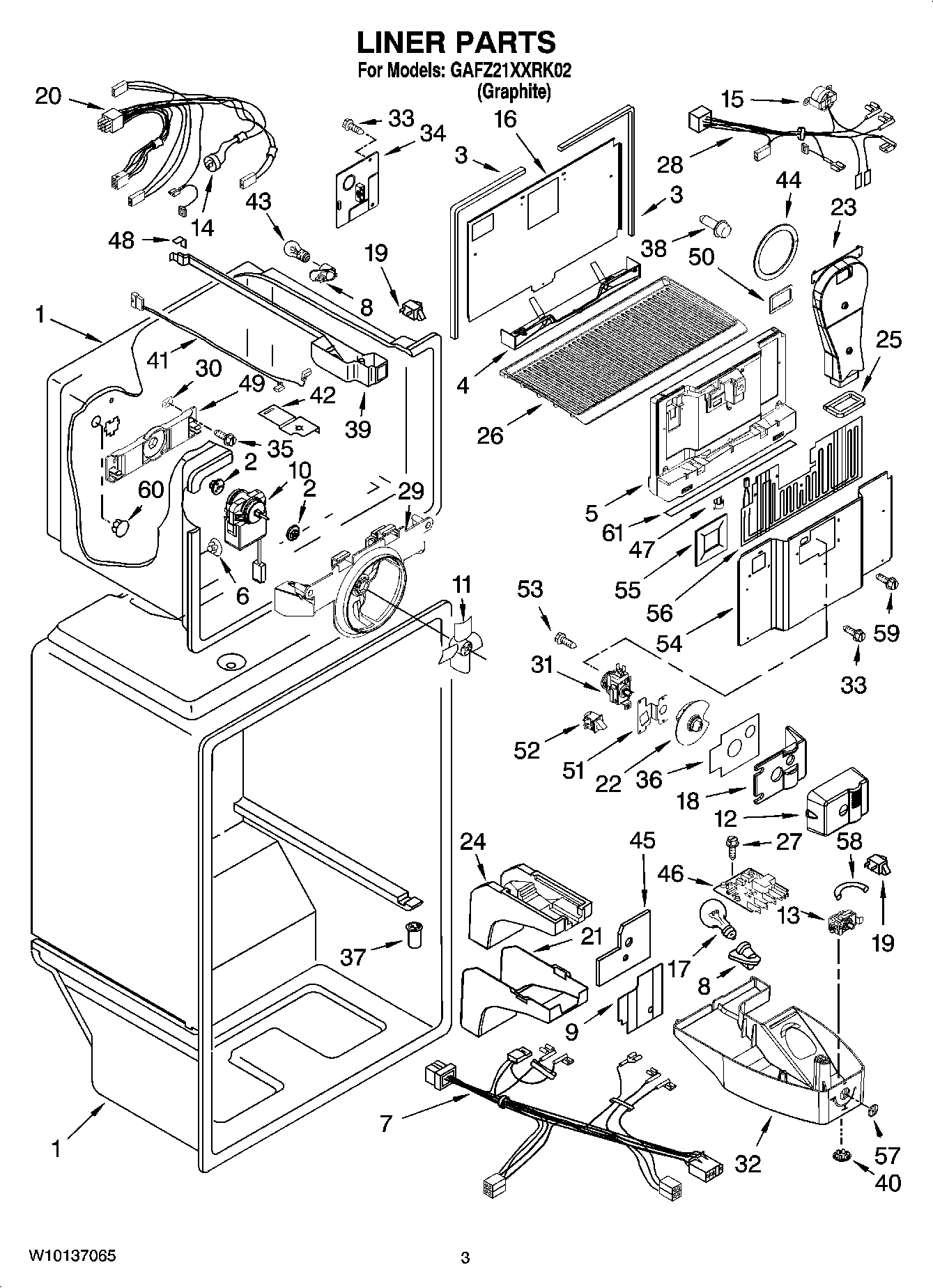

GAFZ21XXRK02 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	Gasket, Evaporator Cover (2)
4	Pan, Drain
5	Cover, Insulated Evaporator
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assembly, Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Shield, Electrical
10	WP2320109 Whirlpool Refrigerator Evaporator Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	WP2253122 Whirlpool Refrigerator Thermostat
14	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
15	2253219 Whirlpool Refrigerator Bimetallic Defrost
16	Cover, Evaporator
17	W10887190 Whirlpool Refrigerator Light Bulb
18	EPS-Control, Evap.
19	W11384469 Whirlpool Door Switch
20	Wire Assembly, Freezer Compartment (Includes Item 14)
21	Cover, Air Diffuser
22	Knob, Thermostat
23	Air Tower
24	Air Diffuser, Bottom
25	Gasket, Air Tower
26	Floor, Freezer
27	Screw
28	Harness, Wiring (Upper Control)
29	BRACKET, FAN MOTOR
30	Retainer-Screw
31	WP2253228 Whirlpool Refrigerator Thermostat
32	Box, Control
33	WP489478 Whirlpool Refrigerator Screw
34	WP2217784 Whirlpool Refrigerator Cover
35	WP488163 Whirlpool Refrigerator Screw
36	Gasket, Mylar
37	WP2210509 Whirlpool Refrigerator Tub Valve
38	Fastener (2)
39	Housing Base
40	940014 Whirlpool Refrigerator Primary Button Plug
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	4396822 Whirlpool Refrigerator Light Bulb
44	Gasket, Air Tower Inlet
45	Shield, heat
46	Board, Control
47	WP1115374 Whirlpool Refrigerator Clip
48	Gasket, Rear
49	2254454 Whirlpool Refrigerator Bracket
50	Gasket, Air Tower
51	Bracket, Control
52	2225399 Whirlpool Refrigerator Switch
53	WP693995 Whirlpool Screw
54	Cover, Evaporator
55	Gasket
56	Heater, Auxilary
57	WP2202885 Whirlpool Refrigerator Thermal Knob
58	WP2196003 Whirlpool Refrigerator Bar Riser
59	WPL 8533886
60	WP487996 Whirlpool Refrigerator Cap Tube
61	WP2253055 Whirlpool Refrigerator Gasket
