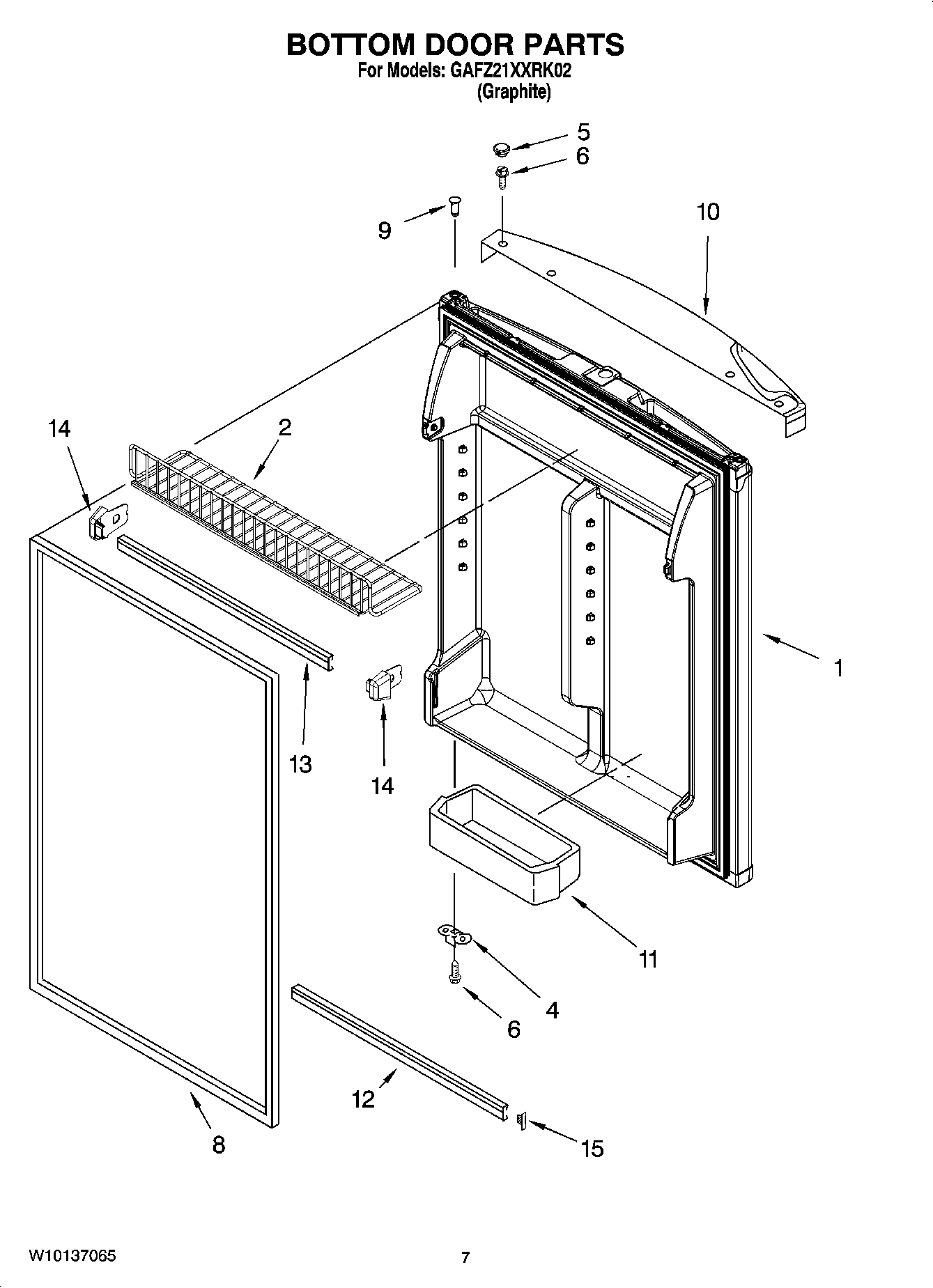

GAFZ21XXRK02 04 – BOTTOM DOOR PARTS

GAFZ21XXRK02 04 – BOTTOM DOOR PARTS

Written by

in

GAFZ21XXRK02 04 – BOTTOM DOOR PARTS

Products

PositionProduct
1Bottom Door (Includes 8 & 12) (Graphite)
2Shelf, Wire Door
4W11745278 Whirlpool Bracket
5Hole Plug, Endcap (Graphite)
6WP681249 Whirlpool Screw Assembly
82177311 Whirlpool Refrigerator Magnetic Door Gasket
9WP2314293 Whirlpool Refrigerator Thimble
10Handle (Graphite)
11BIN-CNTLVR
12WPW10421486 Whirlpool Refrigerator Door Trim
13Trim, Door Shelf
14Endcap, Door Trim
15WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
