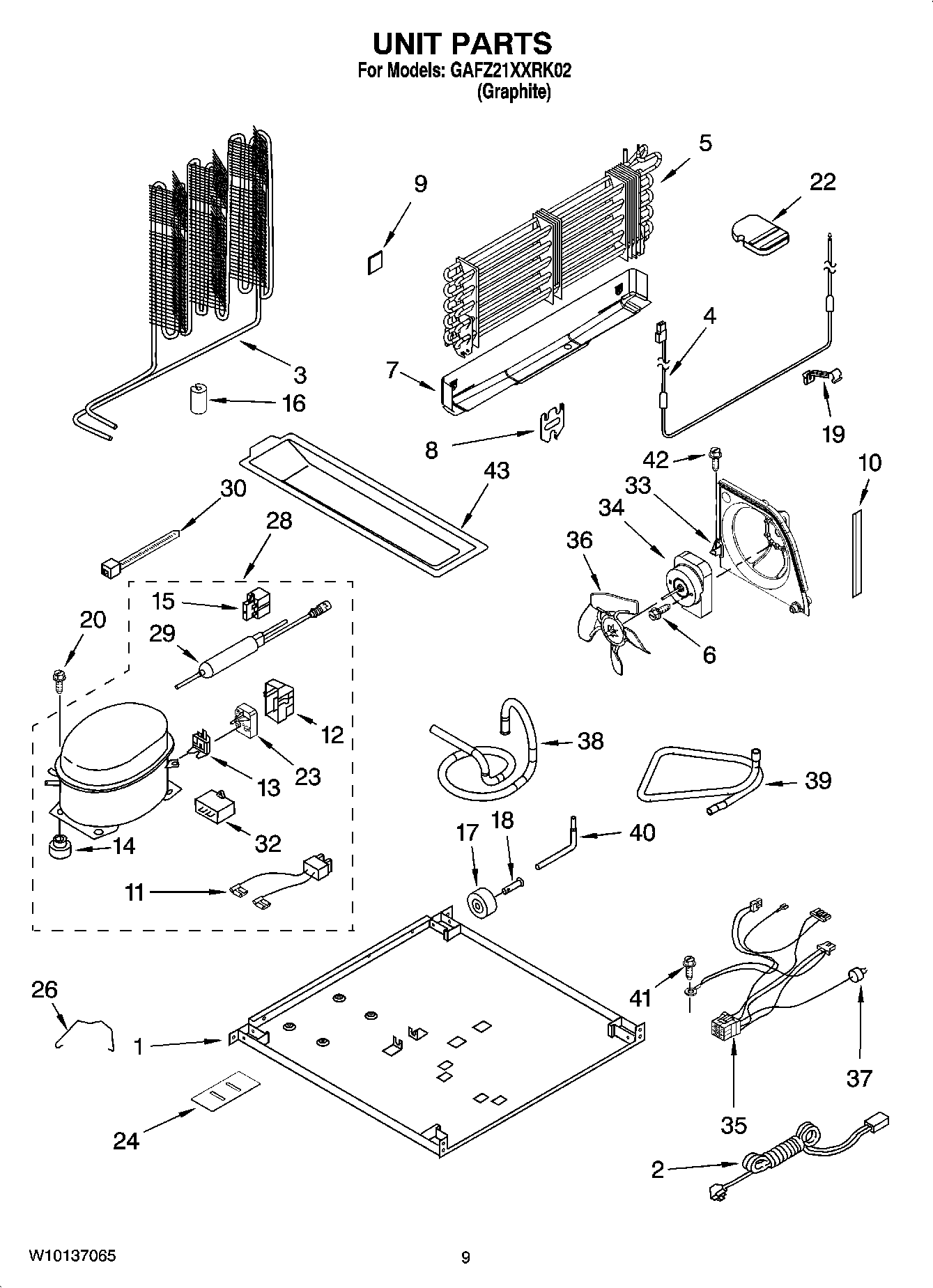

GAFZ21XXRK02 05 – UNIT PARTS

GAFZ21XXRK02 05 – UNIT PARTS

Written by

in

GAFZ21XXRK02 05 – UNIT PARTS

Products

PositionProduct
1Plate, Unit Mounting
22187762 Whirlpool Refrigerator Power Cord
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315530 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WPW10171469 Whirlpool Refrigerator Screw
7Drain Pan
8Bracket, Heater
9W11553819 Whirlpool Refrigerator Insulation
10Extension, Air Baffle
11WP2172890 Whirlpool Refrigerator Wire
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2154697 Whirlpool Refrigerator Overload
14W11661108 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15W10920279 Whirlpool Refrigerator Start Relay
16W10852725 Whirlpool Refrigerator Grommet
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
20SCREW
22Support Block
23WP2313162 Whirlpool Refrigerator Start Device
24Cover, Unit
262212996 Whirlpool Refrigerator Retainer
28Compressor (Includes Items 11,12,13,14,15, 29 & 32) (Also Order 482801 Installation Kit & 876765 Tube Kit)
29WPW10143759 Whirlpool Dryer Filter
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
32WP65889-4 Whirlpool Refrigerator Capacitor
33WP2315541 Whirlpool Refrigerator Air Baffle
34WP2188874 Whirlpool Refrigerator Condenser Motor
352187761 Whirlpool Refrigerator Wire Harness
36W11458267 Whirlpool Refrigerator Fan Blade
37Bi-metal
38Tube, Discharge
39Tube-Suction
402154109 Whirlpool Refrigerator Tube
41WP489128 Whirlpool Refrigerator Screw
423400518 Whirlpool Oven Foot Mount Screw
43VALVE, ACCESS (5/8“)
43Following Parts Not Illustrated and Optional Parts Not Included
43876764 Whirlpool Refrigerator Primary Valve
43978026 Whirlpool Refrigerator Primary Valve
43978027 Whirlpool Refrigerator Primary Valve
43WP978025 Whirlpool Refrigerator Valve
43VALVE, ACCESS (1/2“)
43978030 Whirlpool Refrigerator Valve
43WP2254574 Whirlpool Refrigerator Evaporator Tray
43REFRIGERANT CHARGE 4.75 Ozs.
