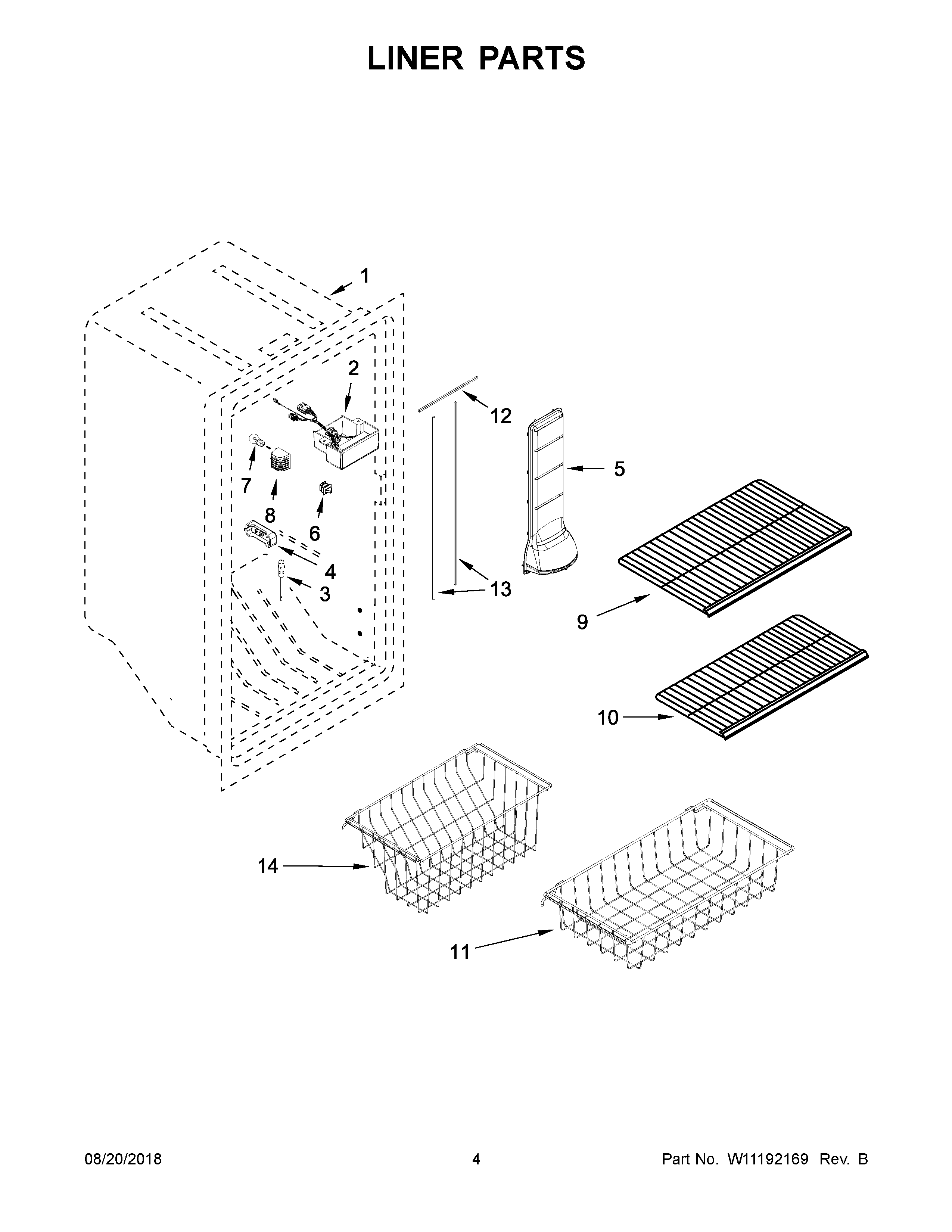

GAFZ30FDGB00 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11251044 Whirlpool Refrigerator Control Box
3WPW10384183 Whirlpool Thermistor
4W10608692 Whirlpool Refrigerator Cover
5W10574583 Whirlpool Refrigerator Air Tower
6W10755325 Whirlpool Refrigerator Switch
7W11216993 Whirlpool Refrigerator Light Bulb
8W10569269 Whirlpool Refrigerator Lens
9W10838310 Whirlpool Refrigerator Freezer Wire Shelf
10W10838313 Whirlpool Shelf Assembly
11W10736055 Whirlpool Basket
13WPW10574368 Whirlpool Refrigerator Gasket
14W10736043 Whirlpool Refrigerator Basket
