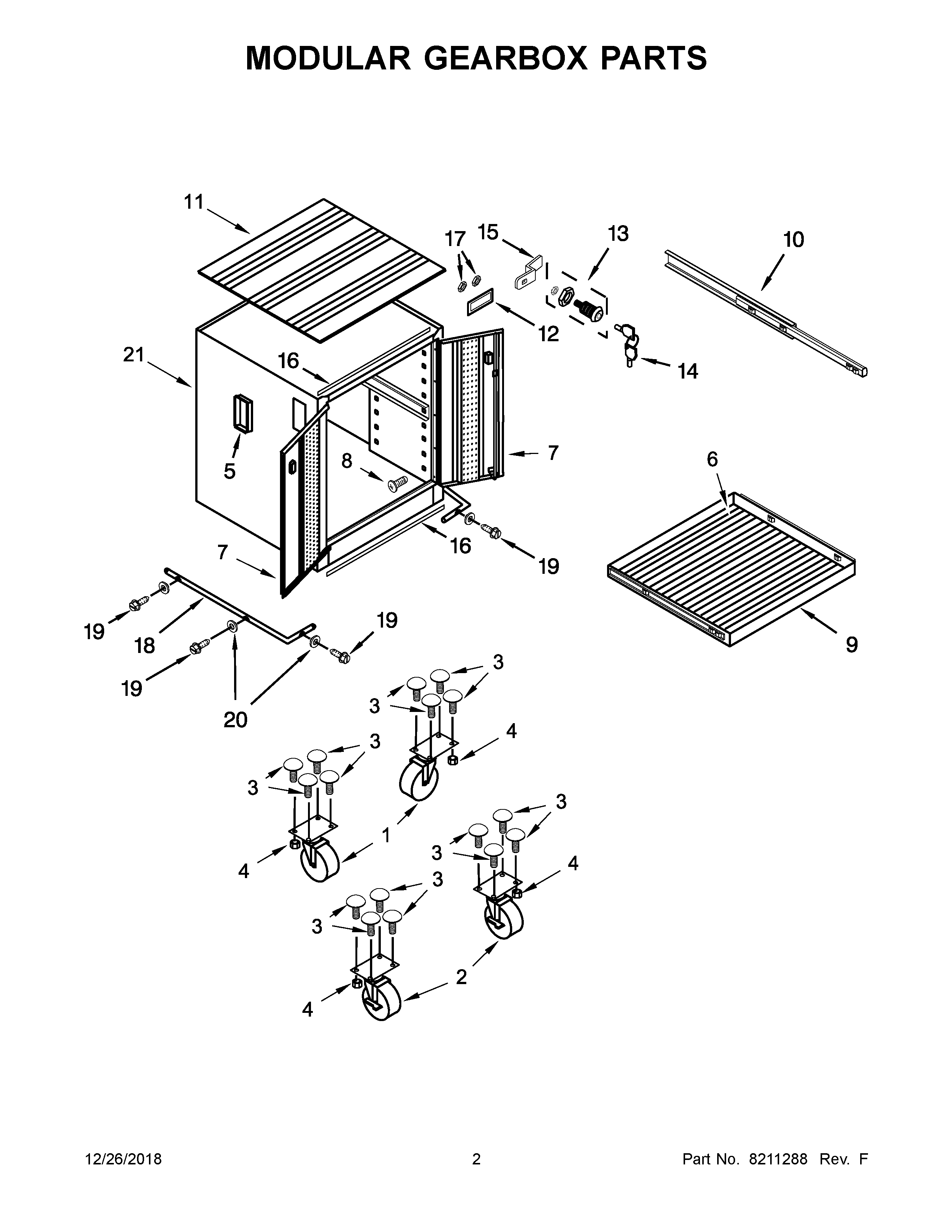

GAGB272DDR00 02 – MODULAR GEARBOX PARTS

GAGB272DDR00 02 – MODULAR GEARBOX PARTS

Written by

in

GAGB272DDR00 02 – MODULAR GEARBOX PARTS

Products

PositionProduct
1WP8204601 Whirlpool Caster Assembly
2A8211250 Whirlpool Caster Assembly
2W10741533 Whirlpool Caster
3WP8204609 Whirlpool Bolt
4WP8204610 Whirlpool Nut
5W10914558 Whirlpool Door Handle
6WP8204604 Whirlpool Liner Assembly
7CDOOR (INCLUDES HANDLE) (RED TREAD PLATE, RIGHT HAND)
7A8211271 Whirlpool Door
7DOOR (INCLUDES HANDLE) (SILVER TREAD PLATE, LEFT HAND)
7BDOOR (INCLUDES HANDLE) (RED TREAD PLATE, LEFT HAND)
8WPW10001180 Whirlpool Refrigerator Screw
98204635 Whirlpool Guide Tray
10WP8211252 Whirlpool Drawer Slide
118204605 Whirlpool Mat
12NAMEPLATE, GLADIATOR
13LOCK
14W11383363 Whirlpool Keys
15W10554082 Whirlpool Cam
16MAGNET
17CLIP, NAMEPLATE
188204634 Whirlpool Bumper
19SCREW
20WP8211254 Whirlpool Washer
21CABINET (NOT A SERVICEABLE PART)
