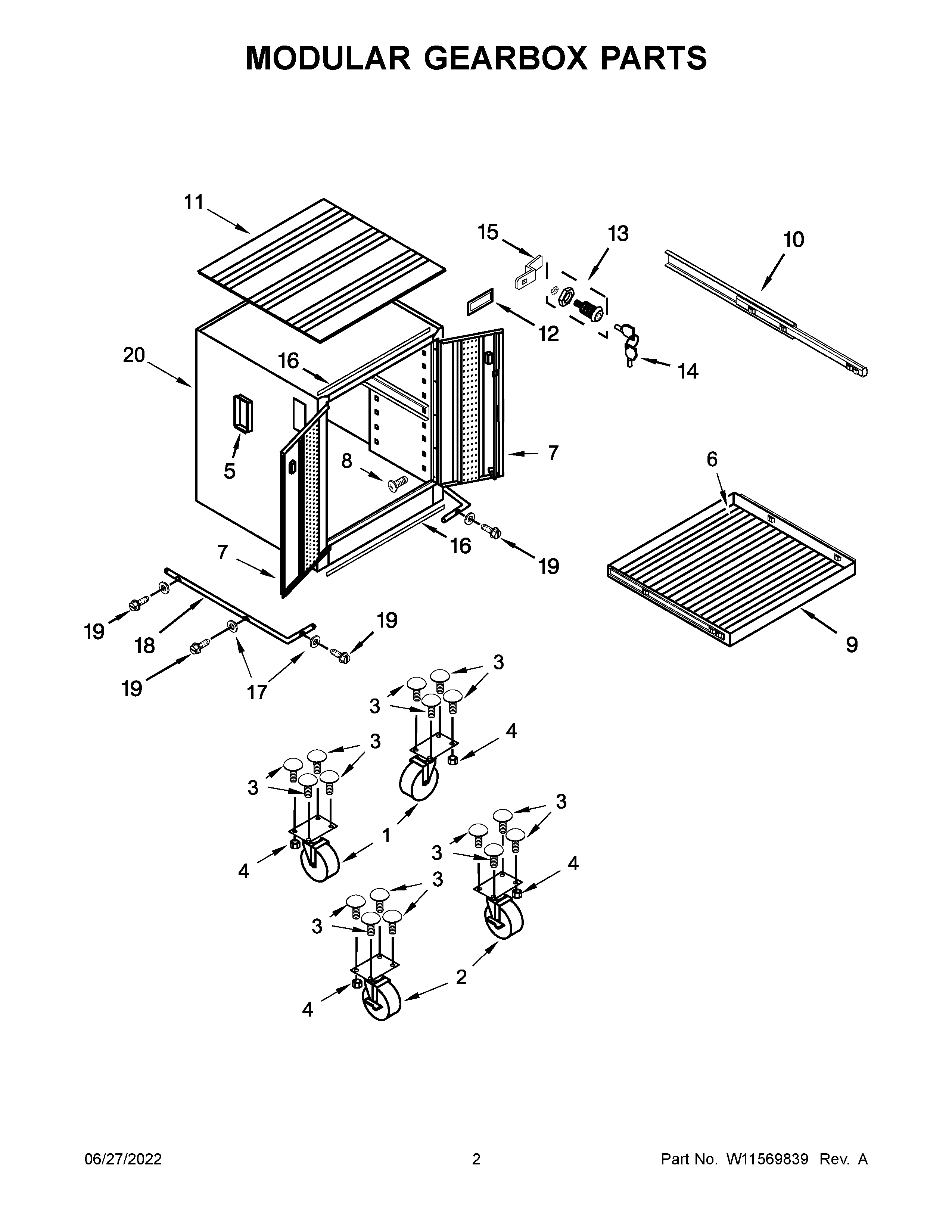

GAGB272DLR00 02 – MODULAR GEARBOX PARTSadmin2025-04-26T08:45:48+00:00GAGB272DLR00 02 – MODULAR GEARBOX PARTS
Products
| Position | Product |
|---|
| 1 | CASTER, SWIVEL 5" |
| 2A | CASTER, RIGID 5" WITH BRAKE (RIGHT HAND) |
| 2 | CASTER, RIGID 5" WITH BRAKE (LEFT HAND) |
| 3 | W11558420 Whirlpool Bolt |
| 4 | NUT, NYLON |
| 5 | W11549424 Whirlpool Door Handle |
| 6 | LINER, DRAWER |
| 7C | DOOR (INCLUDES HANDLE) (SILVER TREADPLATE, RIGHT HAND) |
| 7B | DOOR (INCLUDES HANDLE) (SILVER TREADPLATE, LEFT HAND) |
| 7A | DOOR (INCLUDES HANDLE) (RED TREADPLATE, RIGHT HAND) |
| 7 | DOOR (INCLUDES HANDLE) (RED TREADPLATE, LEFT HAND) |
| 8 | SCREW |
| 9 | DRAWER (INCLUDES GUIDE) |
| 10 | SLIDE, DRAWER |
| 11 | MAT, TOP |
| 12 | NAMEPLATE, GLADIATOR |
| 13 | LOCK |
| 14 | W11557661 Whirlpool Keys |
| 15 | CAM |
| 16 | MAGNET |
| 17 | WASHER |
| 18 | BUMPER - GUN METAL (GRAY) |
| 19 | SCREW |
| 20 | CABINET (NOT A SERVICEABLE PART) |
