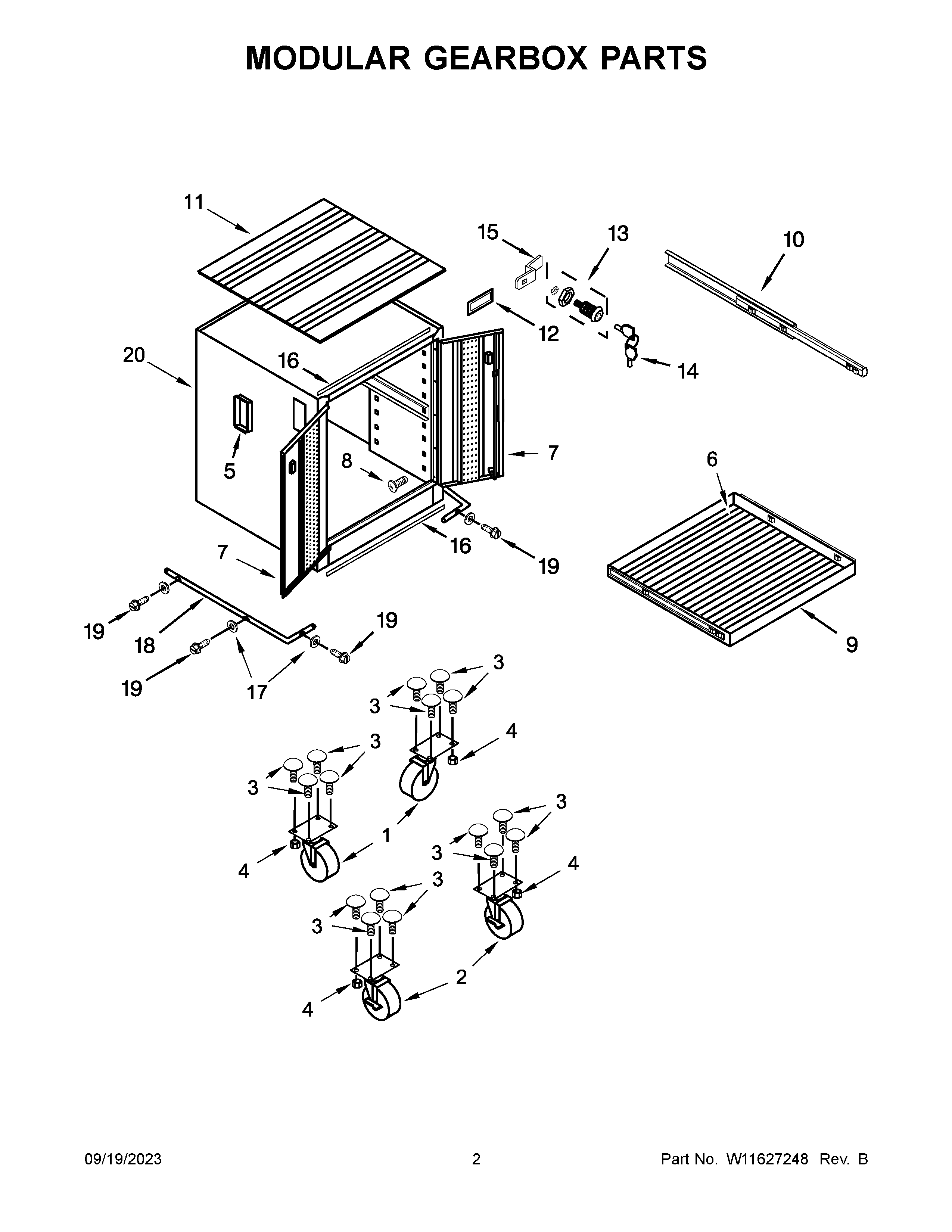

GAGB272DLW00 02 – MODULAR GEARBOX PARTS

Products

PositionProduct
1CASTER, SWIVEL 5"
2ACASTER, RIGID 5" WITH BRAKE (RIGHT HAND)
2CASTER, RIGID 5" WITH BRAKE (LEFT HAND)
3W11558420 Whirlpool Bolt
4NUT, NYLON
5HANDLE, DOOR
6LINER, DRAWER
7DOOR (INCLUDES HANDLE) (GRAY SLATE, LEFT HAND)
7ADOOR (INCLUDES HANDLE) (GRAY SLATE, RIGHT HAND)
8SCREW
9DRAWER (INCLUDES GUIDE)
10SLIDE, DRAWER
11MAT, TOP
12NAMEPLATE, GLADIATOR
13LOCK
14W11557661 Whirlpool Keys
15CAM
16MAGNET
17WASHER
18BUMPER – GUN METAL (GRAY)
19SCREW
20CABINET (NOT A SERVICEABLE PART)
