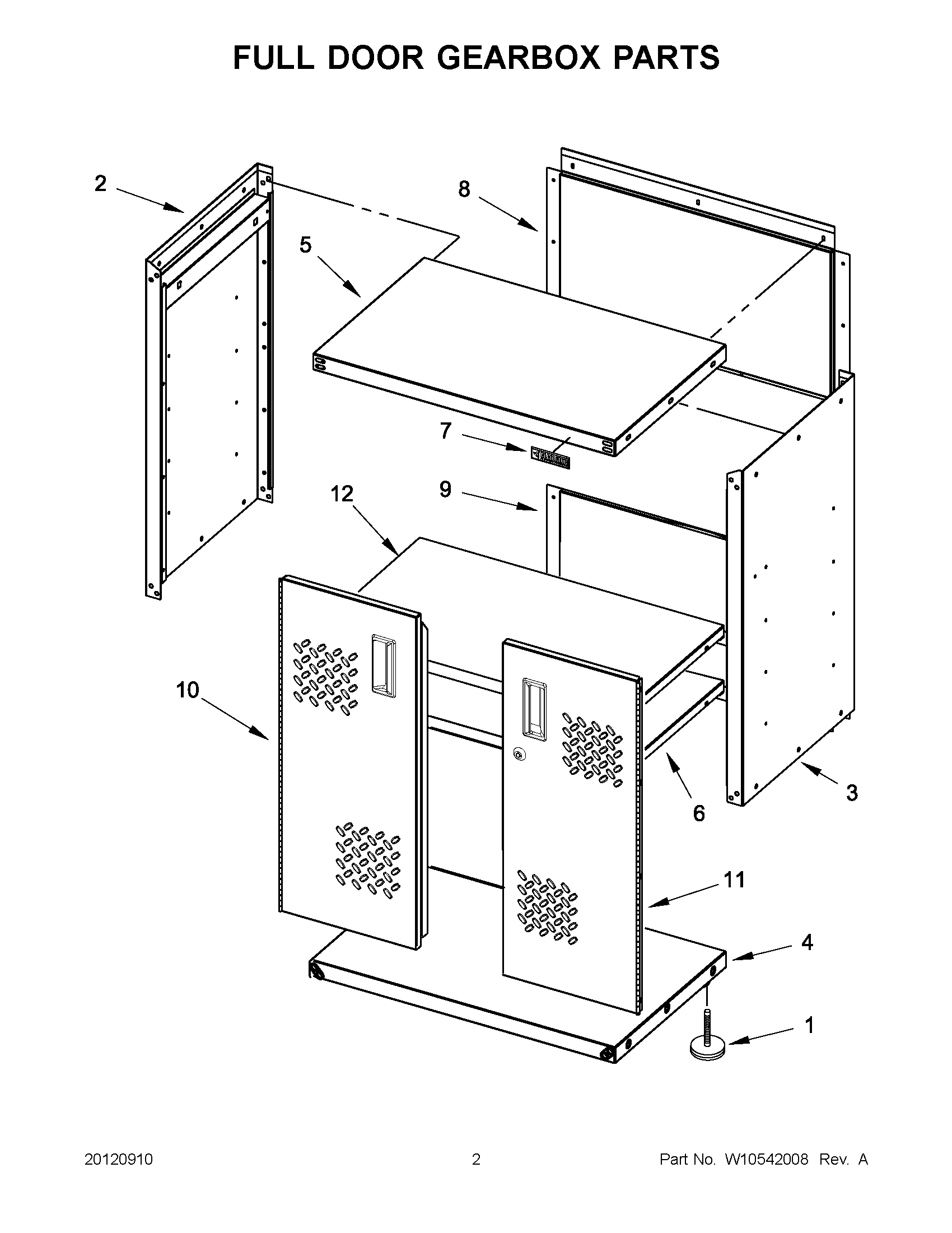

GAGB28FDYG00 01 – FULL DOOR GEARBOX PARTS

Products

PositionProduct
NIINSTALLATION HARDWARE COMPLETE
NICABINET (NOT A SERVICEABLE PART)
1W11256713 Whirlpool Leveler Leg
2PANEL, SIDE (LEFT)
3PANEL, SIDE (RIGHT)
4PANEL, BOTTOM
5W10520288 Whirlpool Panel Assembly
6SHELF
7NAMEPLATE, GLADIATOR
8PANEL, BACK (LOWER)
9W10541602 Whirlpool Panel
10DOOR ASSEMBLY WITHOUT LOCK
11W10541652 Whirlpool Door
12SHELF W/MAGNET
