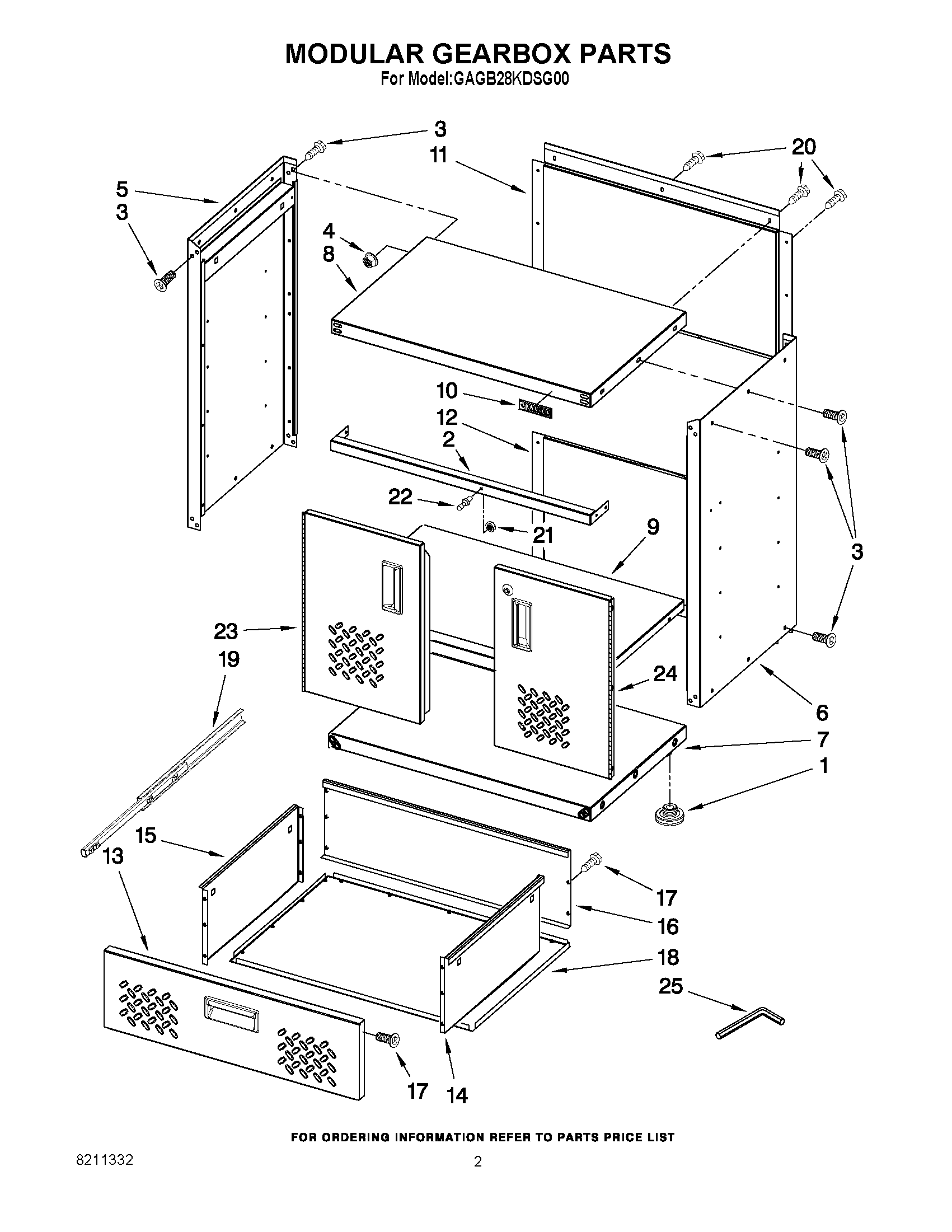

GAGB28KDSG00 01 – MODULAR GEARBOX PARTS

Products

PositionProduct
NIMiscellaneous Parts Bag Hardware Complete
1WPW10471120 Whirlpool Leg Lever
2BRACKET
3W10859799 Whirlpool Bolt
4WP8211291 Whirlpool Nut
5PANEL, SIDE LEFT
6PANEL, SIDE RIGHT
7PANEL, BOTTOM
8PANEL, TOP
9SHELF
10NAMEPLATE, GLADIATOR
11PANEL, BACK UPPER
12PANEL, BACK LOWER
13FRONT, DRAWER
14PANEL, DRAWER RIGHT SIDE
15PANEL, DRAWER LEFT SIDE
16PANEL, DRAWER BACK
17Screw, Silver (10-32)
18PANEL, DRAWER BOTTOM
19WPW10183341 Whirlpool Drawer Slide
20WP8211294 Whirlpool Screw
21Nut, Keps
22W11369680 Whirlpool Catch Stud
23DOOR & HANDLE ASSEMBLY (LEFT)
24DOOR & HANDLE ASSEMBLY (RIGHT)
25Wrench, Allen
