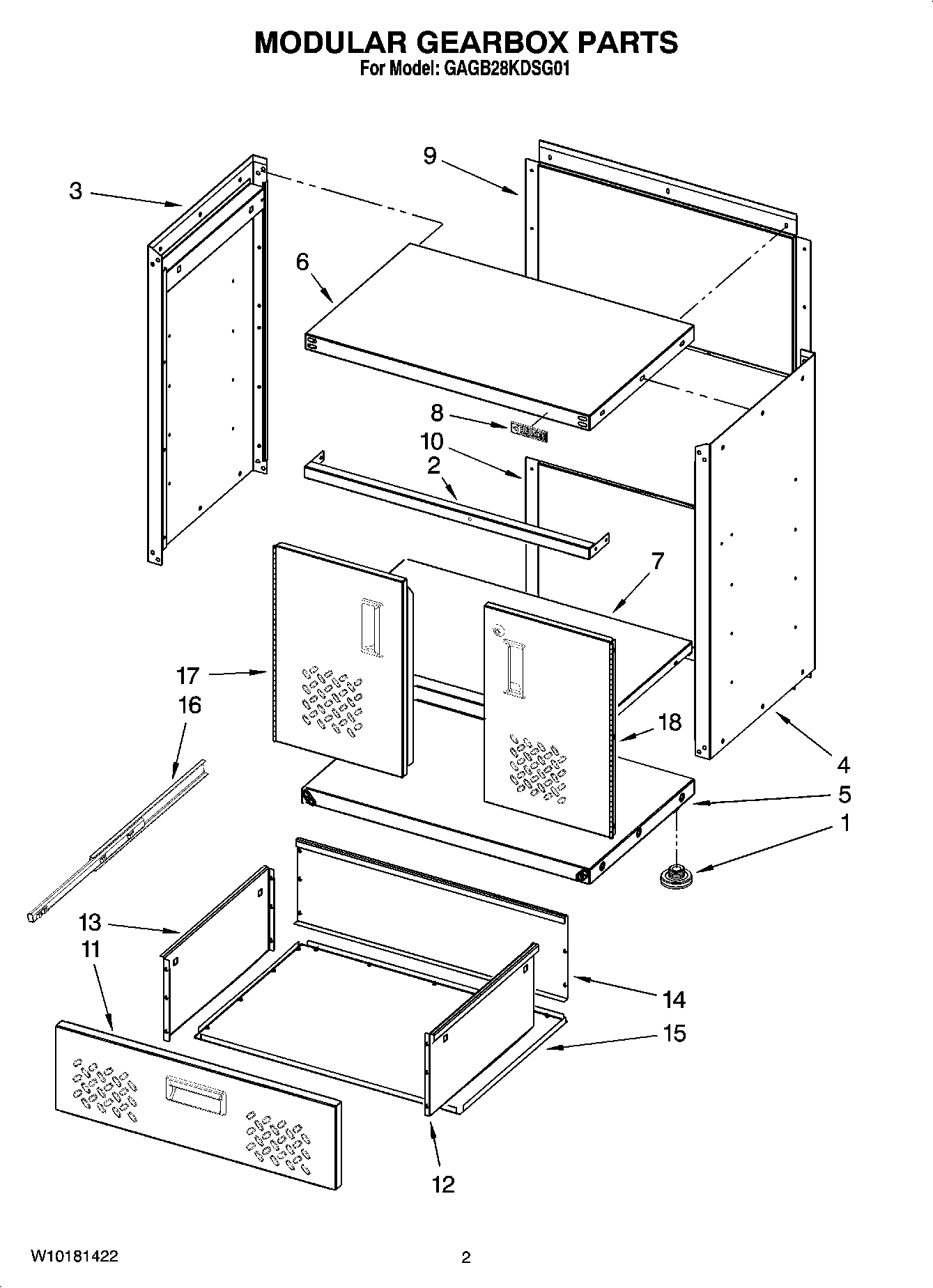

GAGB28KDSG01 01 – MODULAR GEARBOX PARTS

Products

PositionProduct
Miscellaneous Parts Bag Hardware Complete
Parts Not Illustrated and Optional Parts (Not Included)
1WPW10471120 Whirlpool Leg Lever
2BRACKET
3Panel, Side Left
4Panel, Side Right
5Panel, Bottom
6Panel, Top
7SHELF
8NAMEPLATE, GLADIATOR
9Panel, Back Upper
10Panel, Back Lower
11Front, Drawer
12Panel, Drawer Right Side
13Panel, Drawer Left Side
14Panel, Drawer Back
15Panel, Drawer Bottom
16WPW10183341 Whirlpool Drawer Slide
17Door & Handle Assembly (Left)
18Door & Handle Assembly (Right)
