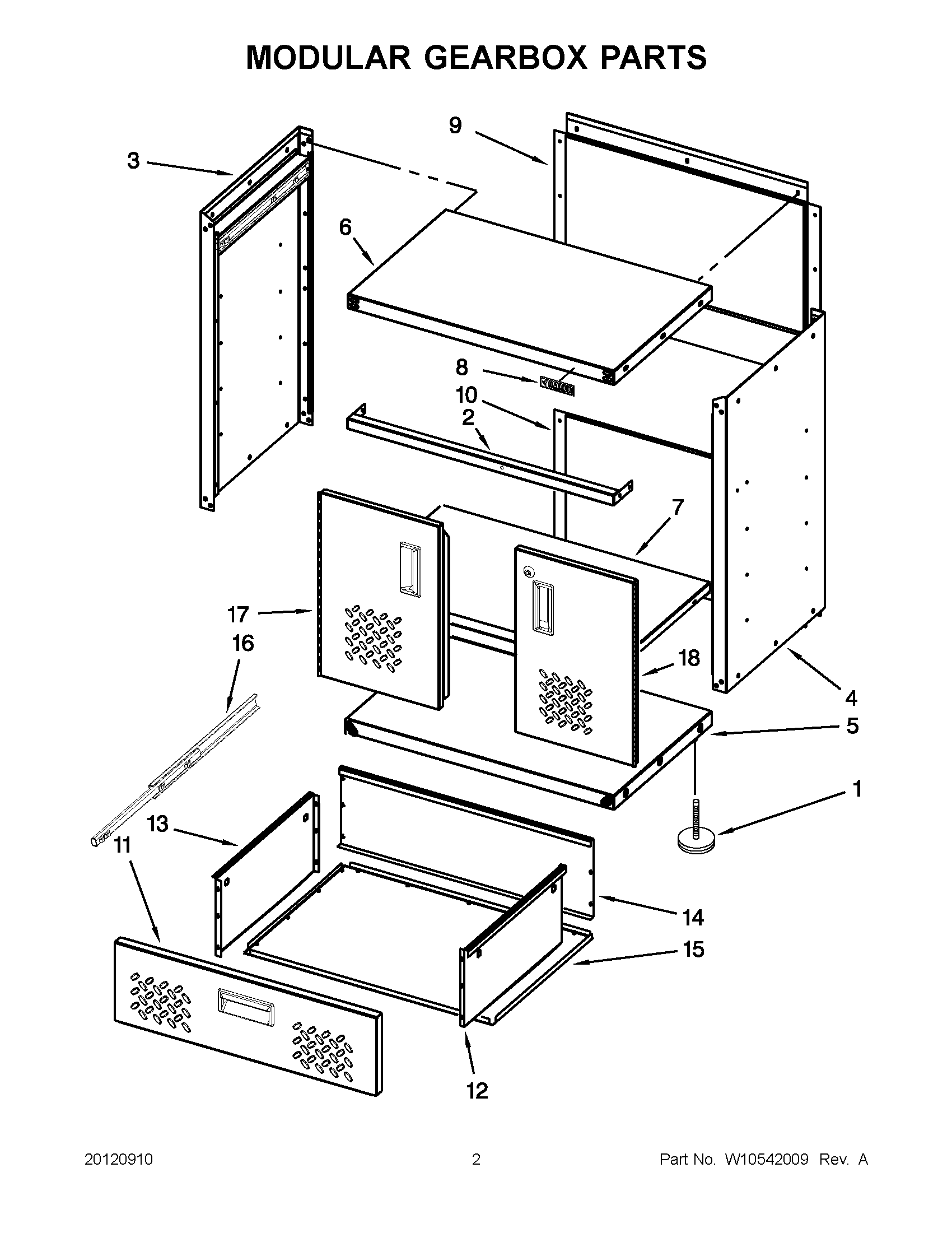

GAGB28KDYG00 01 – MODULAR GEARBOX PARTS

Products

PositionProduct
NIINSTALLATION HARDWARE COMPLETE
NICABINET (NOT A SERVICEABLE PART)
1W10847004 Whirlpool Leg Leveler
2W10541630 Whirlpool Bracket Assembly
3PANEL, SIDE (LEFT)
4PANEL, SIDE (RIGHT)
5W10541565 Whirlpool Panel
6W10520288 Whirlpool Panel Assembly
7SHELF W/MAGNET
8NAMEPLATE, GLADIATOR
9W10541602 Whirlpool Panel
10PANEL, BACK (LOWER)
11W10541624 Whirlpool Panel Assembly
12PANEL, DRAWER (RIGHT)
13PANEL, DRAWER (LEFT)
14PANEL, DRAWER (BACK)
15PANEL, DRAWER (BOTTOM)
16WPW10183341 Whirlpool Drawer Slide
17W10541621 Whirlpool Door Assembly
18W10541620 Whirlpool Door
