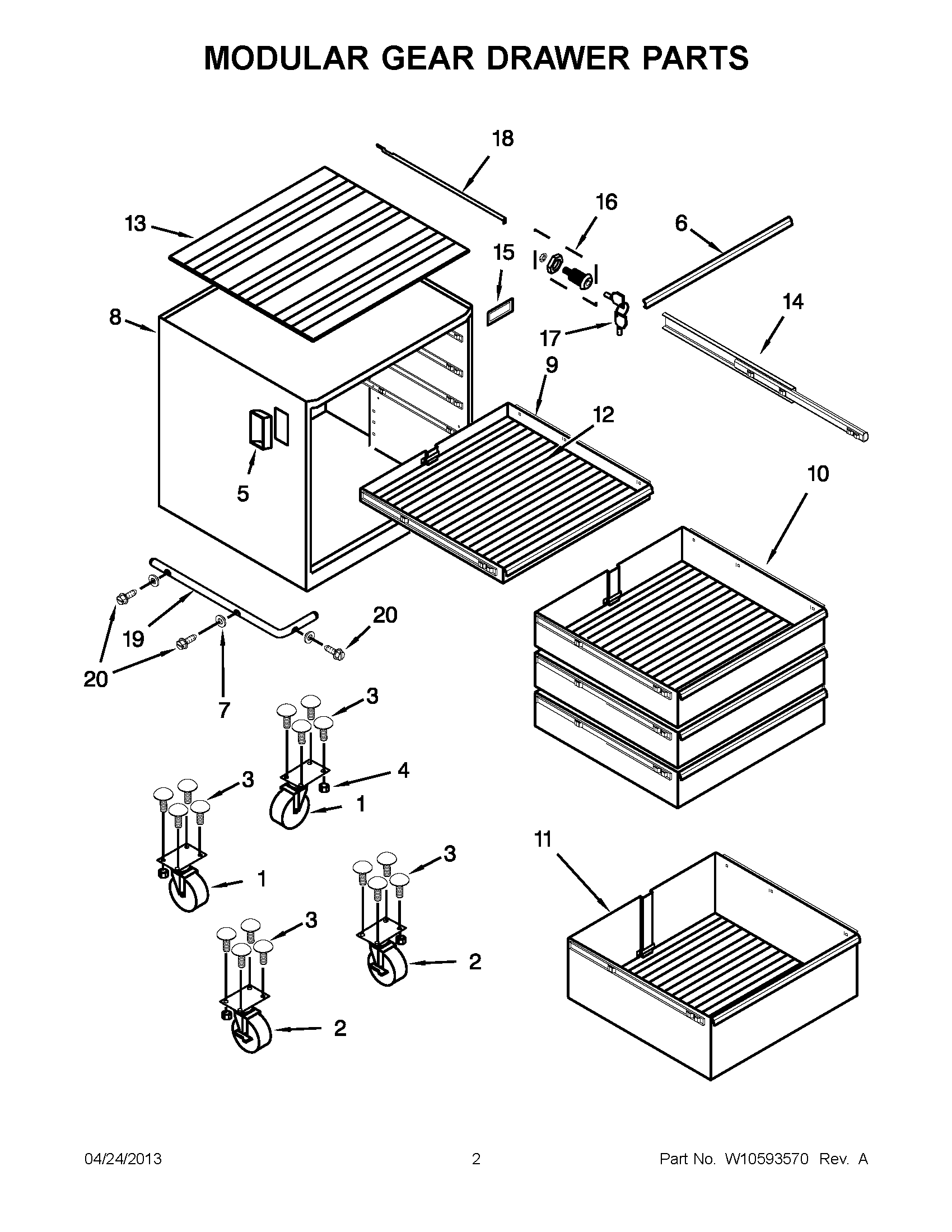

GAGD275DZW00 01 – MODULAR GEAR DRAWER PARTS

GAGD275DZW00 01 – MODULAR GEAR DRAWER PARTS

Written by

in

GAGD275DZW00 01 – MODULAR GEAR DRAWER PARTS

Products

PositionProduct
1WP8204601 Whirlpool Caster Assembly
28211250 Whirlpool Caster Assembly
2W10741533 Whirlpool Caster
3WP8204609 Whirlpool Bolt
4WP8204610 Whirlpool Nut
5W10554069 Whirlpool Door Handle
6TRIM, DOOR
7WP8211254 Whirlpool Washer
8CABINET (NOT A SERVICEABLE PART)
9TRAY AND GUIDE, 2“ DRAWER
10TRAY AND GUIDE, 4“ DRAWER
11TRAY AND GUIDE, 8“ DRAWER
12WP8204604 Whirlpool Liner Assembly
138204605 Whirlpool Mat
14WP8211252 Whirlpool Drawer Slide
15NAMEPLATE, GLADIATOR
16LOCK
17W11383363 Whirlpool Keys
188211226 Whirlpool Key Bar
19W10554087 Whirlpool Bumper
20SCREW
