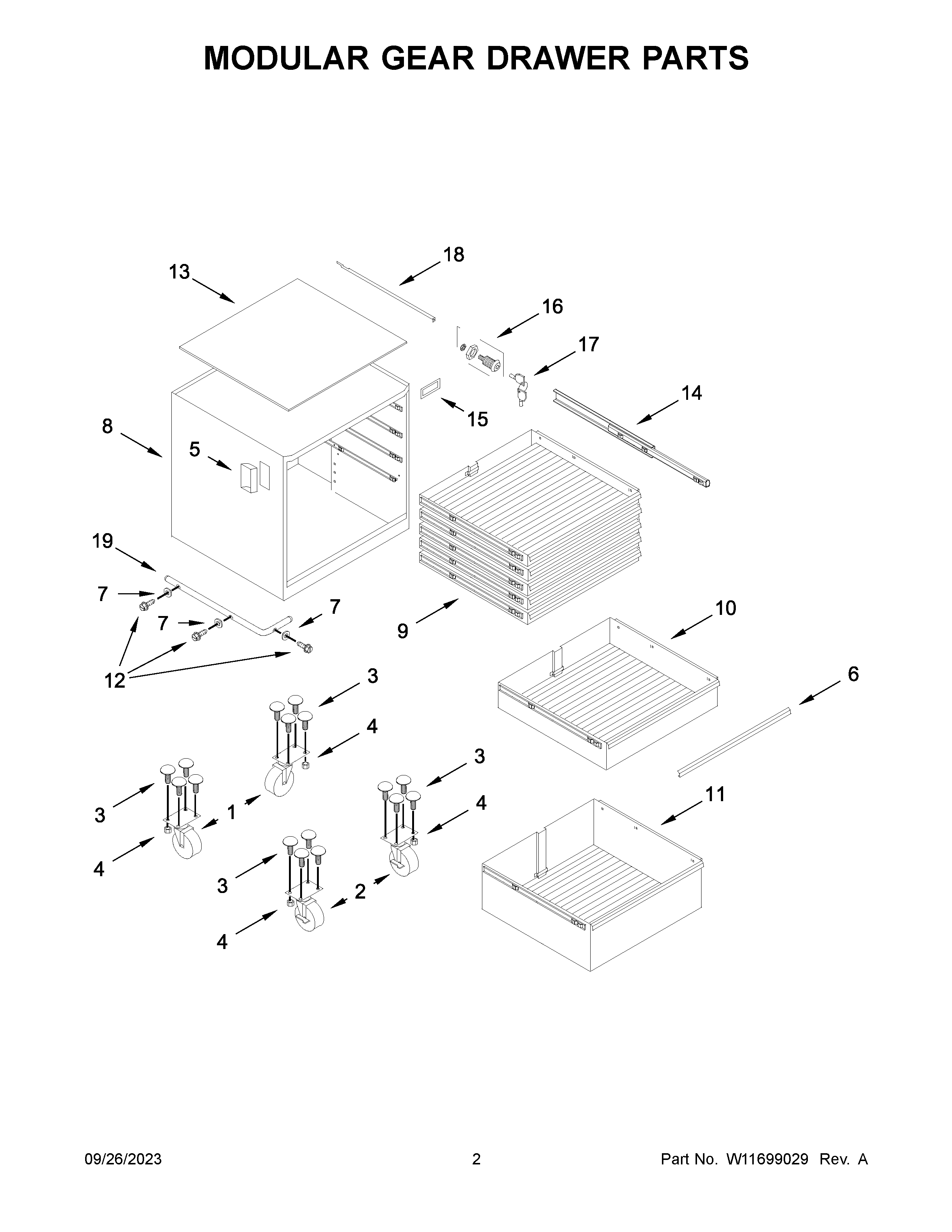

GAGD277DKR00 02 – MODULAR GEAR DRAWER PARTS

Products

Position	Product
1	CASTER, SWIVEL 5"
2A	CASTER, RIGID 5" WITH BRAKE (RIGHT HAND)
2	CASTER, RIGID 5" WITH BRAKE (LEFT HAND)
3	W11558420 Whirlpool Bolt
4	NUT, NYLON
5	HANDLE, DOOR
5A	W11549424 Whirlpool Door Handle
6A	TRIM, DRAWER – SMOKE
6	TRIM, DRAWER – BLACK
7	WASHER
8	CABINET (NOT A SERVICEABLE PART)
9A	TRAY AND GUIDE, 2" DRAWER (RED TREAD)
9	TRAY AND GUIDE, 2" DRAWER (SILVER TREAD)
9B	TRAY AND GUIDE, 2" DRAWER (GRAY SLATE)
10	TRAY AND GUIDE, 4" DRAWER (SILVER TREAD)
10A	TRAY AND GUIDE, 4" DRAWER (RED TREAD)
10B	TRAY AND GUIDE, 4" DRAWER (GRAY SLATE)
11B	TRAY AND GUIDE, 8" DRAWER (GRAY SLATE)
11A	TRAY AND GUIDE, 8" DRAWER (RED TREAD)
11	TRAY AND GUIDE, 8" DRAWER (SILVER TREAD)
12	SCREW
13	MAT, TOP
14	SLIDE, DRAWER
15	NAMEPLATE, GLADIATOR
16	LOCK
17	W11557661 Whirlpool Keys
18	KEY BAR
19	BUMPER – SMOKE
19A	BUMPER – GUN METAL (GRAY)
